PCR-E20FS honda pcr-v20la, a02b-0120-k301, A06B-6078-K212

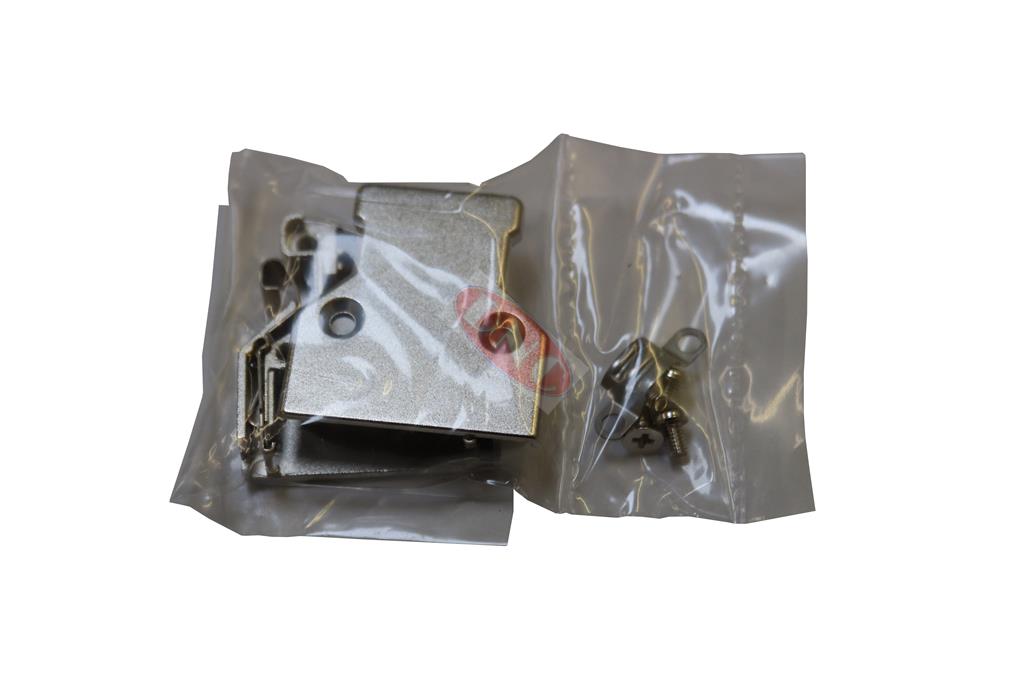

Honda PCR-E20LA case
Honda PCR-e20fs connector

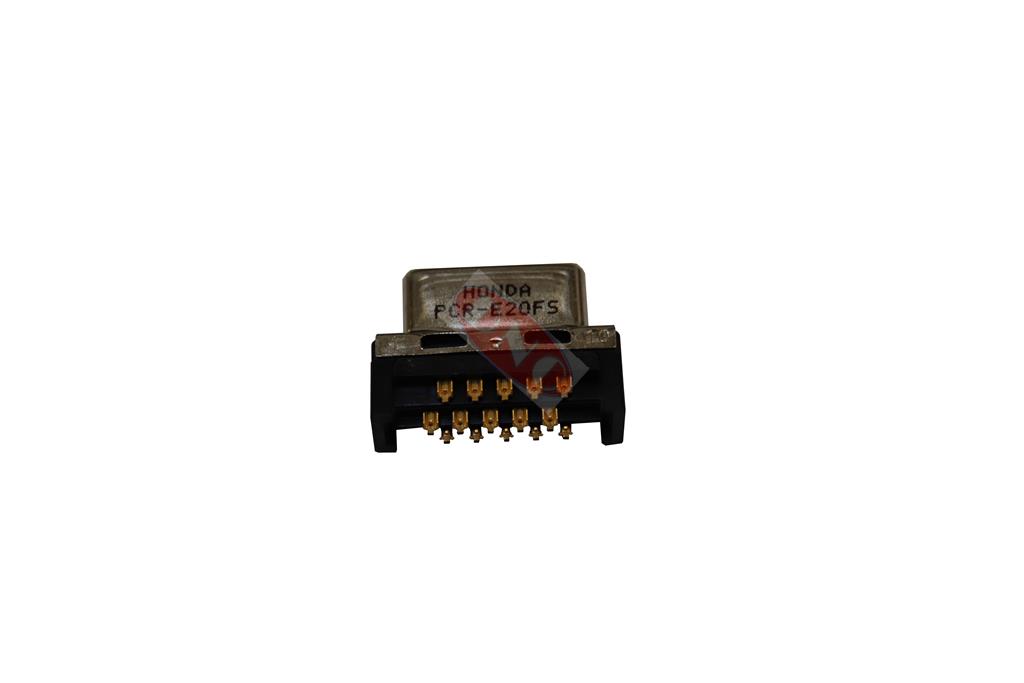

PCR-E20FS

HONDA PCR-E20FS

  • 20 Way connector casing
  • Cable side soldering female connector

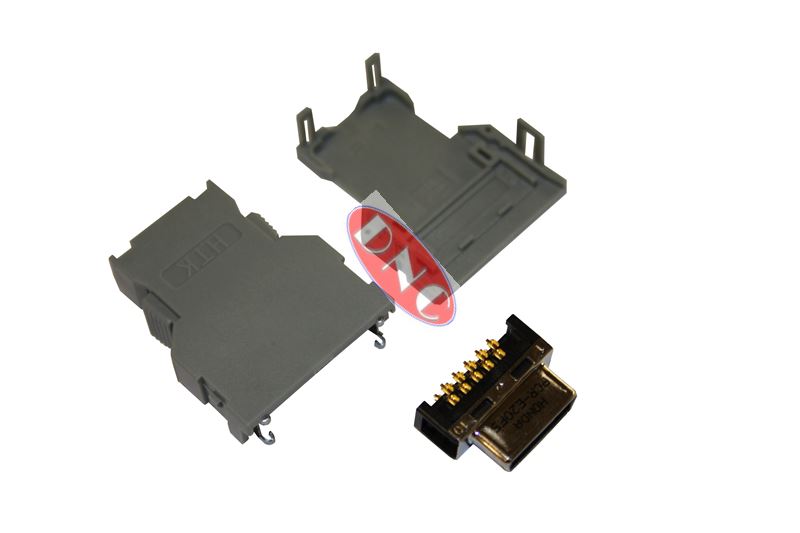

  • With PCR-V20LA become A02B-0120-K301
  • Sensor M/Mi, MZ/MZi, BZ/BZi A06B-6078-K212
  • These are GENUINE HONDA connectors

PCR-E20FS

Honda PCR-E20FS connector. DNC offer PCRE20FS with PCR-V20LA or PCR-E20LA case. This connector is used in many different applications, but we carry it in stock for interconnecting FANUC amplifiers and CNC control systems.

This 1.27mm pitch family of Honda board to cable connector is a 20 Way connector with soldered pins. DNC carries limited stock of these, if stock permits then we can supply. Together the case and 20 pin connector become A02B-0120-K301or for drives A06B-6078-K212. Please call to check stocks and price.

  • 1.27 mm pitch family of Honda board to cable connector
  • Includes PCR-V20LA 6mm cable
  • Soldered Pin
  • Plugs into board mounted connector 20 way connector.

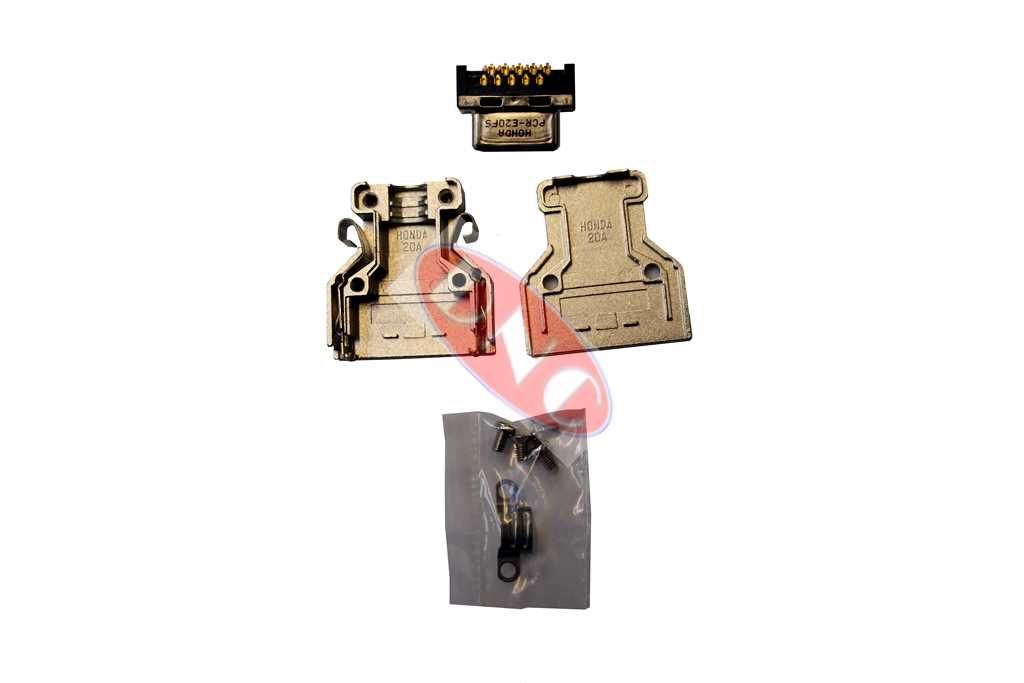

  • Plastic case (PCR-V20LA) or Metal Case (PCR-E20LA)
