1FT6044-4AK71-4AG0

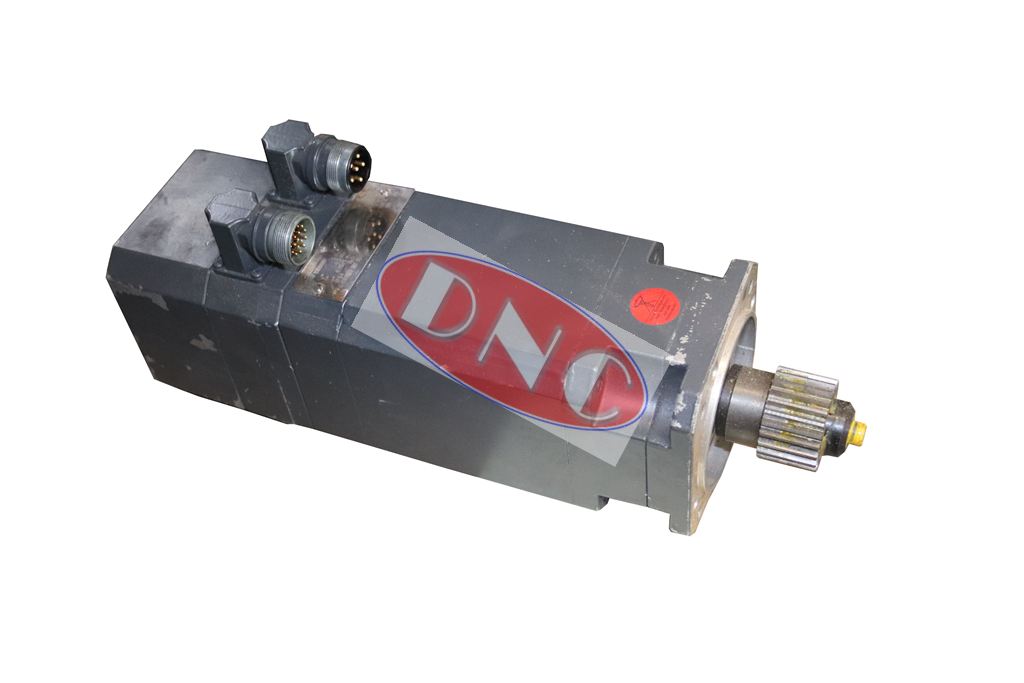

Siemens 1FT6044-4AK71-4AG0 servo motor. This motor is fitted with a I-2048 encoder and is rated at 5Nm / 0.88kW with max RPM of 6000.
The motor is flange mounted onto the machine with a keyed straight shaft. Unlike many of 1FT6 series motors this model has a fan cowling with a force ventilated with mounted seperately driven fan. Connectors all face rear.
Understanding Siemens 1FT6 synchronous motors.
1FT60444AK714AG0 (only variables listed).
- 1FT6 = AC servo motor (synchronous)
- 044 = Frame Size and Length (rating)
- 4 = Number of Poles
- A = Natural Cooling
- H = 6000 RPM (speed)
- 1 = IM B5 (Standard type of construction).
- 4 = Axial DE (Front facing connectors)
- A = Encoder system (i-2048)
- A = Straight Shaft (Plain) no brake.
- 0 = N vibration severity grade and IP64 seal.
Contact us for more information on this motor if required. Otherwise buy online.
