A02B-0259-C020

FANUC A02B-0259-C020

  • Sanyo Denki San Ace 40
  • Model 109P0424H6D03
  • Fan Dimensions: 40*40*20
  • Battery on Power Mate i Model H
SKU: a02b-0259-c020 Category:

Description

A02B-0259-C020

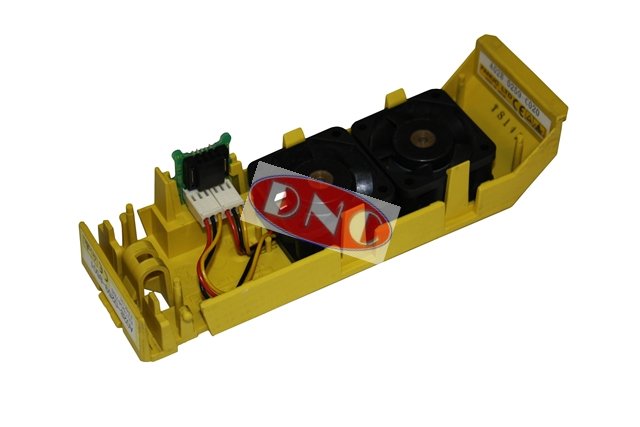

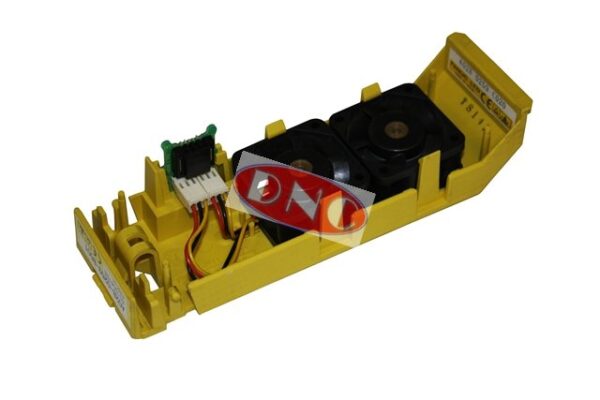

Fanuc A02B-0259-C020 fan used within Fanuc CNC controls. This fan is comprised of 2 fans (A90L00010385) fitted into a Fan Unit. The Fan Unit Battery in 1 slot cabinet which is 60MM wide control unit. The fans themselves (Sanyo Denki San Ace 40: 109P0424H6D03) do not have individual connectors but terminate in a shared (common) connector which slots into the backplane of the Fanuc control. DNC supply the complete Fan Unit due to the cabled common connector between the two fans. This unit is used in very early i generation 18i single slot stand alone units, not the behind LCD CNC’s or 2 slot i series which were far more prevalent with the advent of the i Series Fanuc controls.

A sample of systems this Fan Unit is fitted in are Power Mate i Model-H (A02B-0259-B501), etc.
