A90L-0001-0581

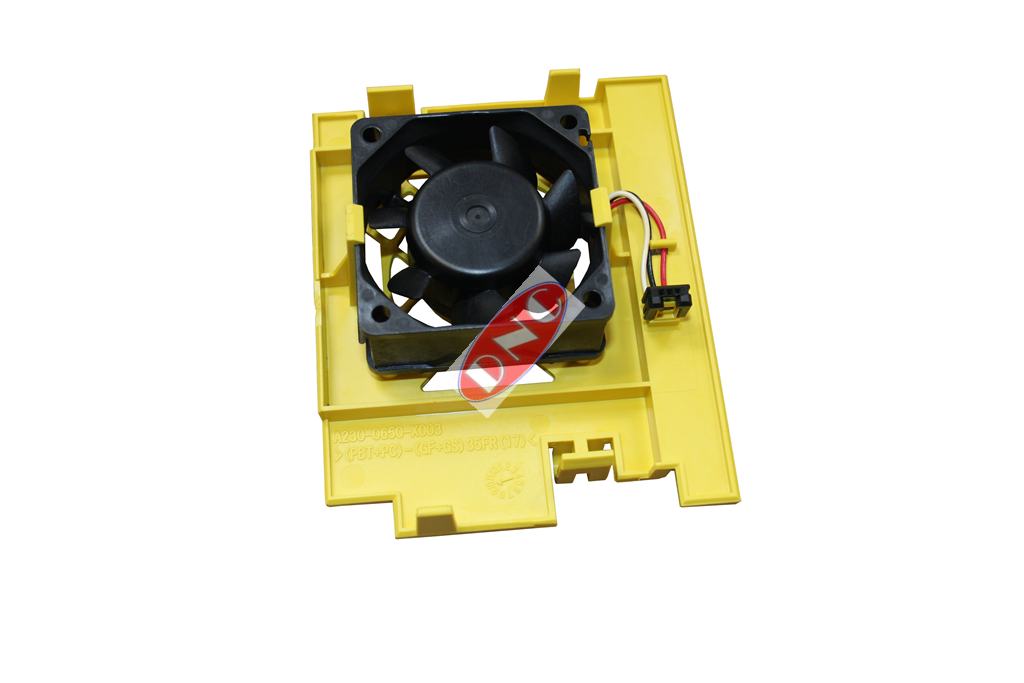

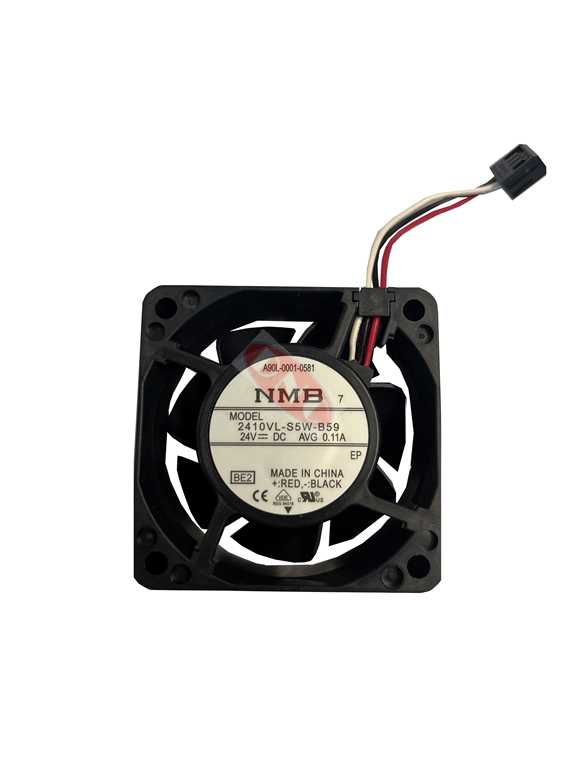

Fanuc A90L-0001-0581 fan used internally on ALPHA i modules. This fan has a new style connector and clips into the top panel which snaps into the modular framework of 6200 series. The Fan is also marked as a Sanyo Denki SANACE60WF with the code 9WF0924S203. Also NMB 2410VL-S5W-B59 is a 60*60*25 mm DC24V and rated at 0.11A or 0.15A.
The top panel is the roof of the amplifier when mounted in the machine, and the fan pulls air through the various servo amplifier, spindle and power modules its is trying to cool down.
We supply these on a job by job basis. Contact us for more information.
