FANUC A06B-6097-H201

  • ALPHA A06B6097H201 HV Servo
  • Same Day / 24 hour repair possible
  • Fault diagnosis, testing on SVM2-20/20HV
SKU: a06b-6097-h201 Category:

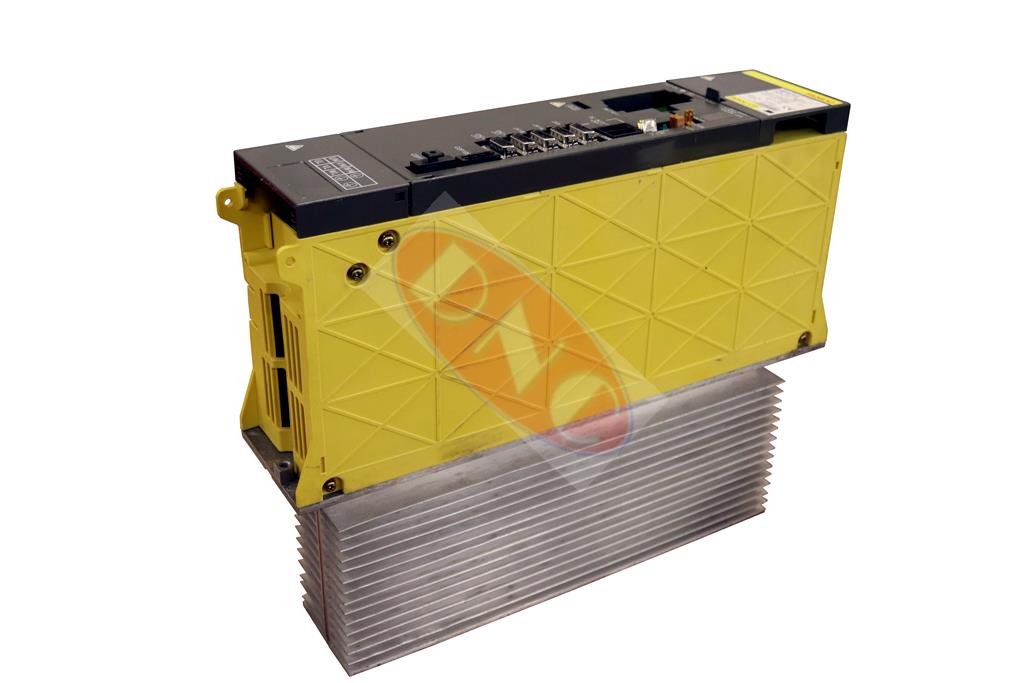

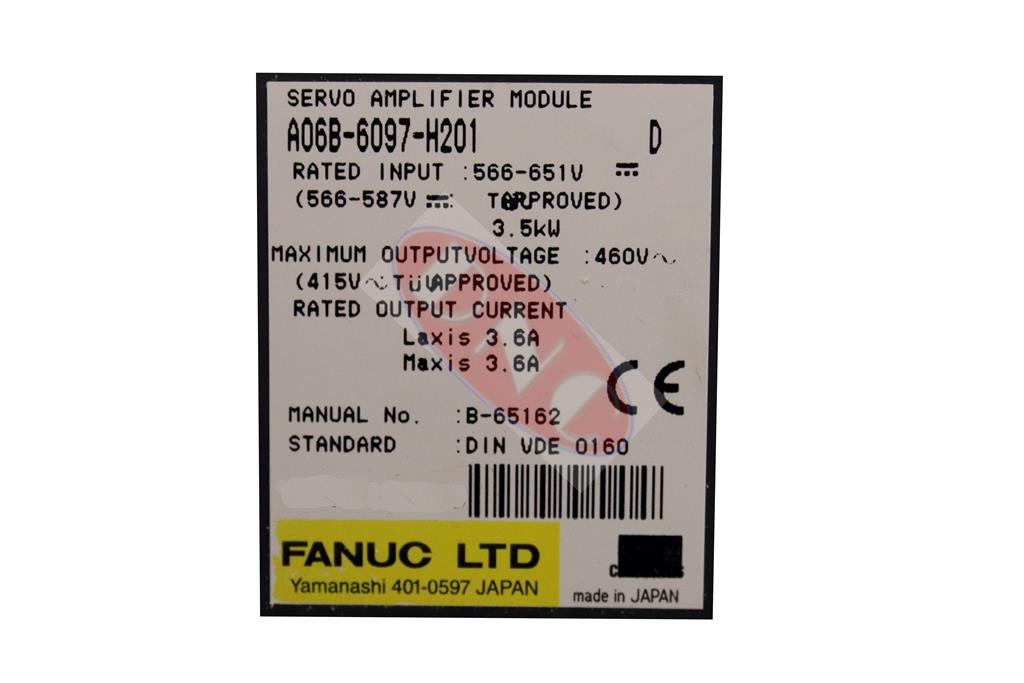

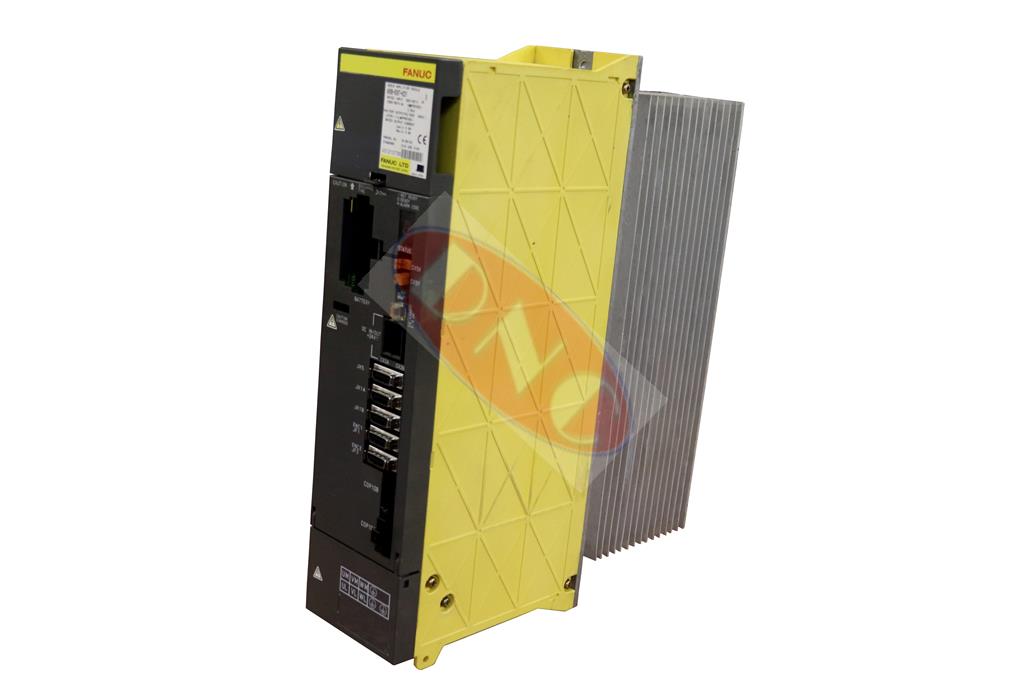

Fanuc A06B-6097-H201 SVM2-20/20HV ALPHA Servo Amplifier Module. This generation uses the FSSB Fanuc Serial Servo Bus interface to control the dual channel L and M GE Fanuc servo motors. The A06B6097H201 series twin ALPHA servo amp is a high voltage 400VAC unit which runs with i version Fanuc controls, i.e. 15i, 16i, 18i, 21i from integrated to stand alone CNC’s. This model of HV FSSB amplifier runs ALPHA model 6/3000HV on both the L channel and the M channel has a 3.5kW rating outputing 3.6amps.

DNC offer several services for the 400V  SVM2-20/20HV including fault finding, testing and full repair facilities as well surplus parts such as transistor modules.
