FANUC A06B-6102-H215

  • ALPHA A06B-6102-H215 spindle in stock
  • Same Day / 24 hour repair possible
  • Fault diagnosis, testing on SPM-15
SKU: A06B-6102-H215 Category:



Fanuc A06B-6102-H215 spindle amplifier module is in stock. This ALPHA series spindle module is also known as SPM-15 and has the software designation #H520; denoted as A06B-6102-H215#H520. Fitted with later versions of the 16i/18i/21i control system and normally with 6096 FSSB servo amplifiers. Replacing the A06B-6078/6088 and all the software variations belonging to them series of amplifier.

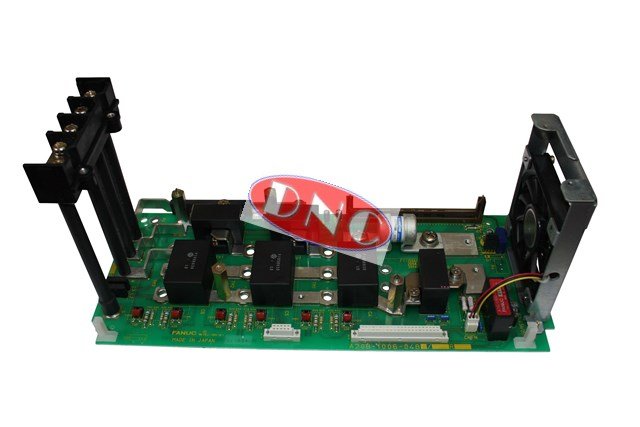

At DNC we offer 6102 series amplifiers with the #H520 software on an exact swap basis. This module is rated at 17.5kW and drives either a high speed model 8/15000 ALPHA series motor, or a 12/10000 or a standard a15 spindle motor. We dont supply the power board or the control board seperate. We do supply transistor modules, pcb fuse, colling fans (both internal and external) and clearup fuse seperate.

Offering several services on these Fanuc ALPHA spindle amplifiers including exchange, outright sale, testing and fault diagnosis service and repair. At DNC we offer a 24 hour repair service on A06B-6102-H215#H520 spindle amplifiers. Backed by an extensive stock of 17.5kw amplifiers in stock.

Contact us on the phone or via email for prices and availability.
