A16B-2203-0502

FANUC A16B-2203-0502

  • Exchange SPM Series drives in stock
  • ALPHA Spindle amplifier modules
  • This board is not supplied separately.

Description

A16B-2203-0502

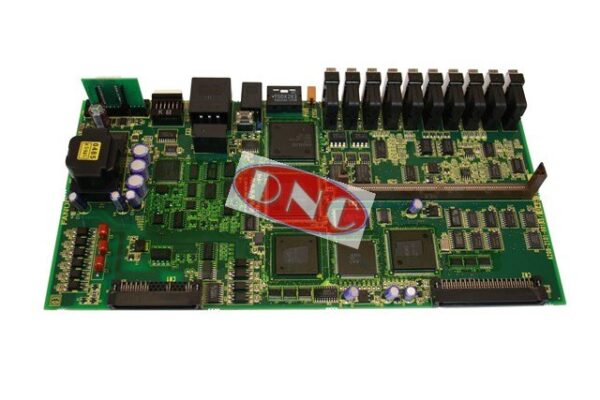

Fanuc A16B-2203-0502 ALPHA Spindle Module Control PCB. This PCB is normally fitted within SPM series modules. This board is fitted upon spindle amps rated between 15kW and 45kW running in either 200V or high voltage. Normally powered by a large ALPHA power supply module and a combination of different sizes and amount of servo amplifier / axis control dependent on the complexity of the machine tool.

NOTE: DNC do not offer A16B-2203-0502 alpha spindle command card separately from the complete SPM spindle power module. There are many reasons, but the most important is we offer a complete unit intact with the control PCB and the wiring PCB and fully tested by ourselves on our Fanuc test rigs with a 180 day warranty. Click here if you require a complete ALPHA 6102 series spindle amplifier, or enter your Fanuc part number in the search bar above.
