a06b-6164-h223#h580
a06b-6164-h223#h580
a06b-6164-h223#h580

A06B-6164-H223#H580

FANUC A06B6164H223#H580

  • BETA biSVSP 40/40-15
  • Same day test, 24 hour repair possible
  • Includes: A20B2101020x and A20B2101002x
  • Exhcange, Surplus, Testing and Repair

A06B-6164-H223#H580

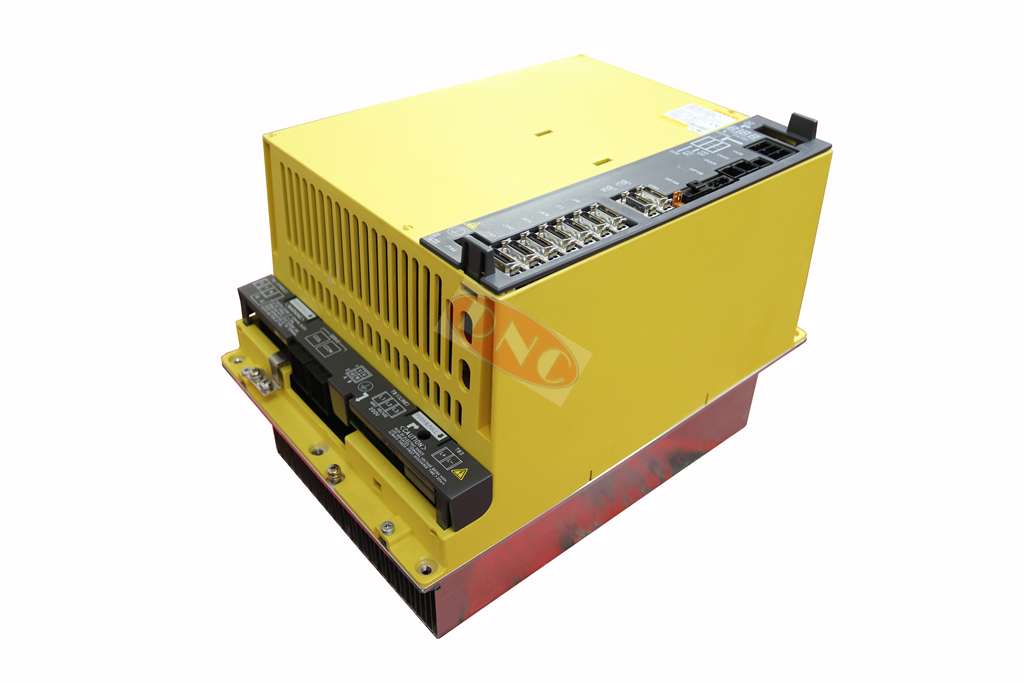

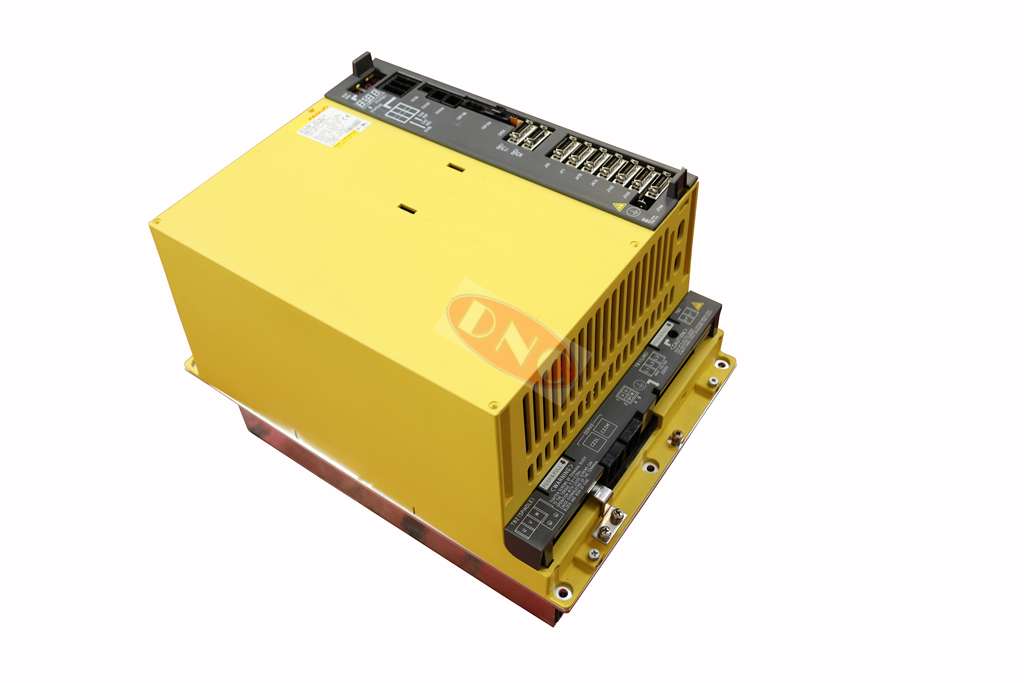

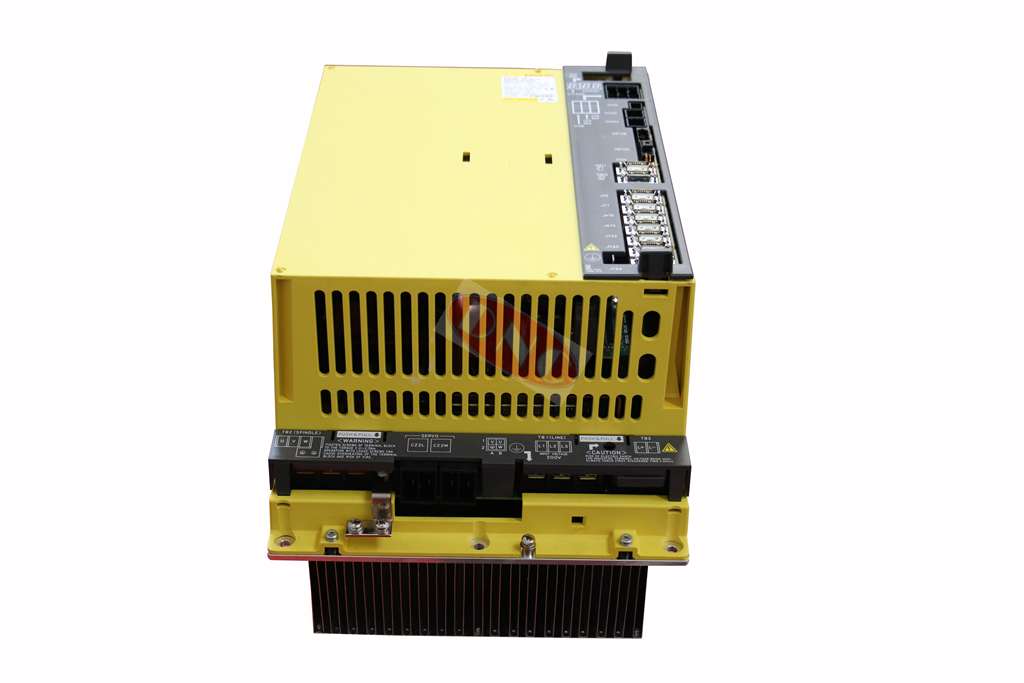

Fanuc A06B-6164-H223#H580 BETA Unit. The BiSVSP 40/40-15 twin channel servo amplifier with built on model 15 spindle amp. Part of the 2nd generation of BETA combined units that replaces the original 6134 series. These units were fitted on simpler lathes to reduce costs to machine tool manufacturers when building CNC machine tools. Rated at 13A on both L & M axes and 64A on the spindle amplifier. Normally controlled by 0i-D controls.

We try to keep the A06B-6164-H223#H580 BiSVSP2-15i in stock available for exchange at all times. We offer same day testing and if possible same day repair, if not 24 hour service is the norm at DNC. The SVPM2-15i drives 2 * Fanuc Bis series servo motors and BETA biL18 spindle motor.

If you are unsure your biSVMP2 40/40-15 BETA servo is at fault then check the STATUS 1 and STATUS 2 7 segment displays on the front of the drive and consult our BETA i SVSP alarms

Contact us on +44 (0)1793 615356 for further information on stock, prices for various services beyond listed on this page. Turnaround times on testing and repair or rebuild services dependent on the condition of your beta i SVMP40/40-15 servo amplifier.
