A06B-6164-H333#H580

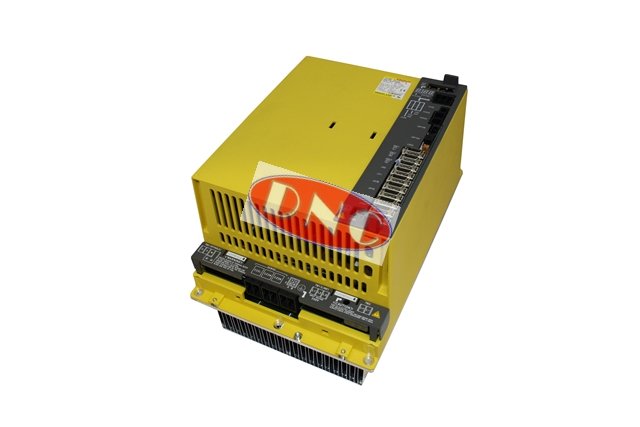

Fanuc A06B-6164-H333#H580 BETA Unit. The BiSVSP 40/40/40-15 triple channel servo amplifier with built on model 15 spindle amp. Part of the 2nd generation of BETA combined units that replaces the older 6134 series. These units were fitted on simpler lathes to reduce costs to machine tool manufacturers when building CNC machine tools.
This BETA i series was released to coincide with the 0i/0i Mate-D series CNC. This amplifier is fitted with power pcb A20B-2101-0025 and control board A20B-2101-0711. Powering biS12/3000 servo motors and model bilP18/6000 spindle motor.
The A06B6164H333#H580 is currently in stock. DNC offers same day testing and if possible same day / 24 hour service. Exchange for speed of delivery same day or the fastest possible route to your factory, and repair if cost reduction is more important than downtime.
Not sure if the alarming machines drive system is at fault ? Consult our list of common alarms for this drive series Fanuc BETA iSVSP alarms.
Contact us on +44 (0)1793 615356 for further information on stock, prices for various services beyond listed on this page. Turnaround times on testing and repair or rebuild services dependent on the condition of your BETA i biSVMP 40/40/40-15 amplifier.
