A06B-6050-H203
Fanuc A06B-6050-H203 velocity control unit. Alternating current twin axis drive uses analog interface between itself and Fanuc CNC control system 10, 11 or series 0 model A. This drive along with the rest of the 6050 series of vcu (velocity control units) is Fanuc’s first AC series servo drives. The H203 similar to other 6050’s was built around a twin pcb configuration in which the firing circuit and axis control were seperated between the two boards.

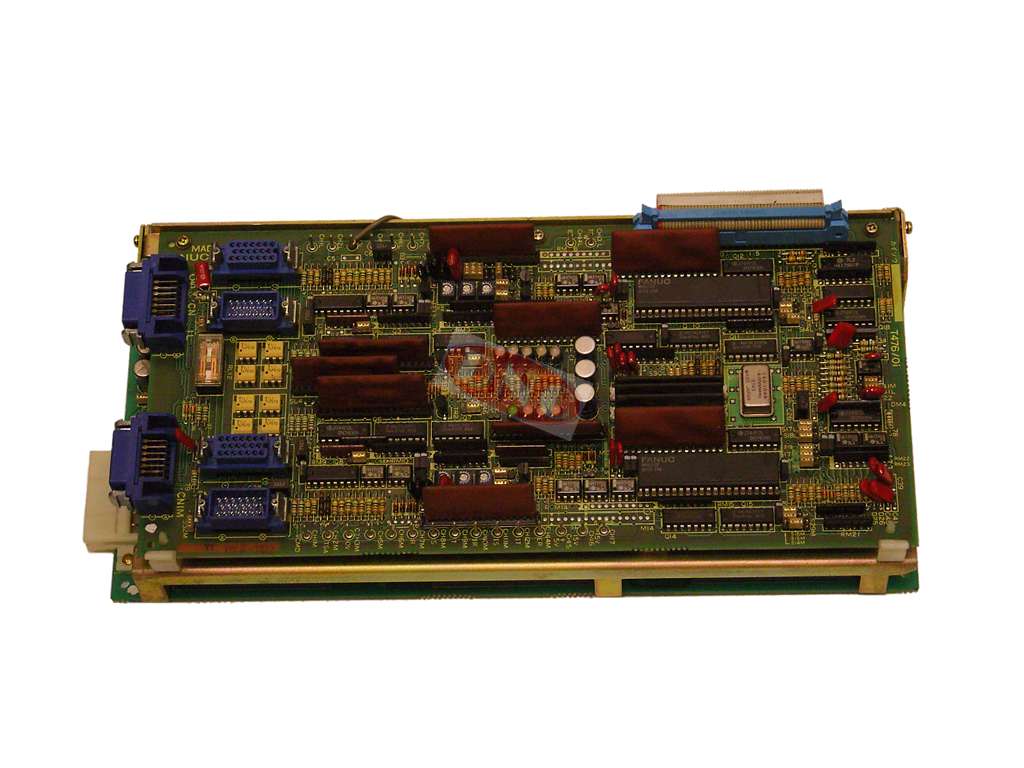

At DNC we supply the boards as a pair as a result the A20B-1001-0470 and A16B-1200-0520 supplied together. If ordering the drive it comes complete with the aforementioned cards. This dual channel drive is normally twinned with AC model 0 and model 5 red cap servo motors.
Carrying these drives in stock for over 25 years; there ain’t much we dont know about them. Hence we can offer extensive testing, repair, rebuild capabilities. Our test and repair turnaound is 24 hours. If you require a A06B-6050-H203 faster; then take advantage of our stocked service exchange available to ship.
Further we can supply the controls boards. As well transistor modules, fuses for these AC drives if required. Click on the proceeding link if you require information on AC axis unit alarms.
Contact us at DNC if you require further information on stock, prices, repair and testing options on Fanuc AC velocity control units.
