Exchange = £1500
a06b-6058-h252
a16b-2201-0020
A20B-1004-0672

A06B-6058-H252

FANUC A06B6058H252

  • S Series Servo In stock.
  • Exchange = £1500.00
  • Call or Email to Order
  • Same Day Test / 24 hour repair possible
  • Contains: A16B-2201-0020 PCB
  • Powers 20S/1500, 5S/3000 & 30S

A06B-6058-H252

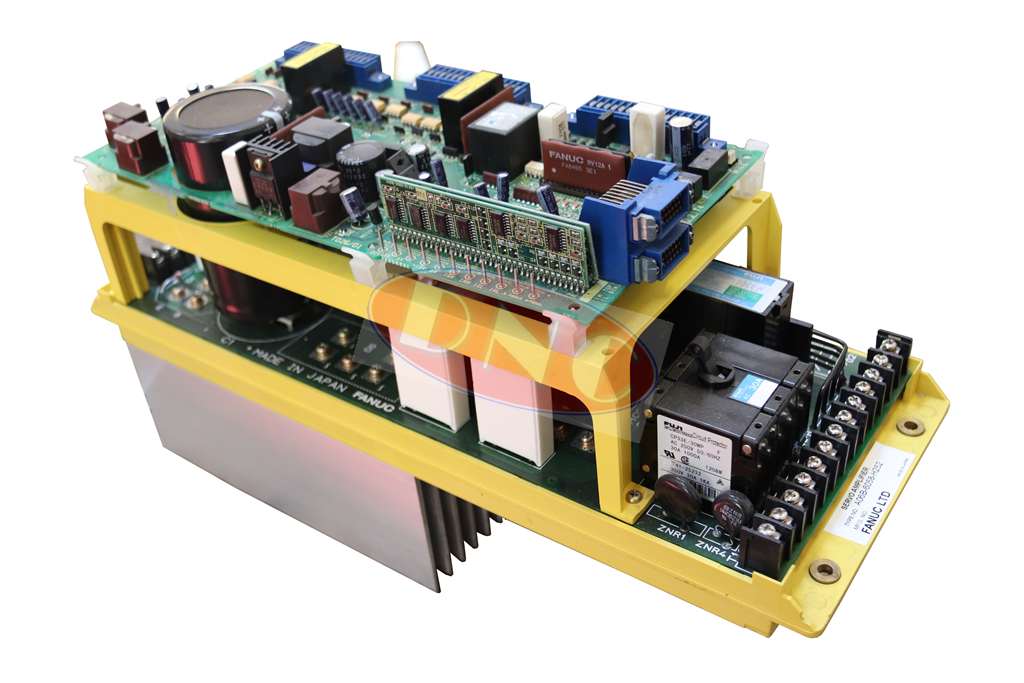

Fanuc A06B-6058-H252 servo amplifier unit.  Belonging to the S series as a result as a dual channel digital servo amp is used in Robots with RJ controls fitted and on CNC machines. This two axis drive is part of a special range of H25x series amplifiers.

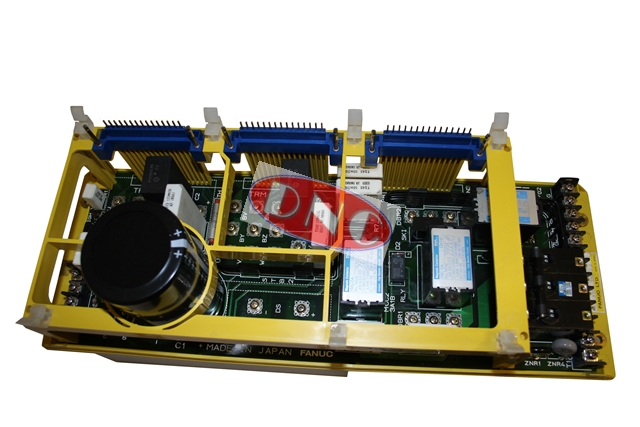

A06B-6058-H252 includes the A16B-2201-0020 control PCB and the A20B-1004-0672 wiring PCB. Capacble on the first channel of driving 0S to 20S/1500 or 5S/3000 servo motors and on the 2nd axis AC model 30S motor.

At DNC we offer immediate exchange from stock. Alternatively we offer same day testing and 24 hour repair turnaround as standard. Further we also offer fuses and transistor modules for these amplifiers. On this rare occasion we do not supply the control PCB seperate from the rest of the unit.

If you are unsure whether your drive is at fault; consult our S series servo alarm codes for the LED’s that lite up on the control board. Alternatively look at the system and alarm on the correct system alarms page.

Contact us for arranging testing, repair or to get the exchange unit to you in the shortest possible delivery.

Weight 15 kg
