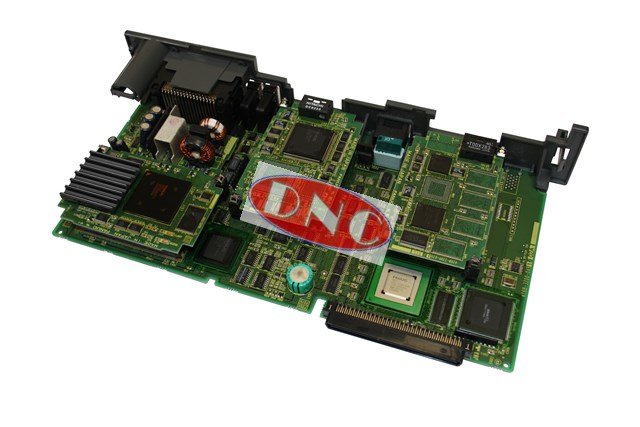

Fanuc A16B-3200-0491 Main CPU Board. This PCB is the main master CPU board for the Fanuc oi-B control system, such as the 0i-TB and so on. This main CPU / master board can have many different SMD plug-in modules which then dictate the amount of memory, FROM, DRAM, SRAM, as well as storing the PMC ladder, system memory and programs, etc. The 0iB main is fitted on the 2nd of the Fanuc Series 0i controllers (so far 0iA, 0iB, 0iC, current systems being 0iD, 0iF). Click here if you require other Fanuc CPU cards.
The A16B32000491 is capable of running up to 6 axes and can run (Fanuc system software dependent) with several types of OPTION pcb’s and RISC processors for additional tasks. This board is supplied with no SMD modules, as they make the generic version of the board specialised to the CNC machine tool.
