FANUC A16B-3200-0190

  • SYSTEM 16C Main Board CPU
  • Series 16-MC, 160-MC, 18-TC
  • Supplied with no SMD modules
SKU: a16b-3200-0190 Category: Tag:

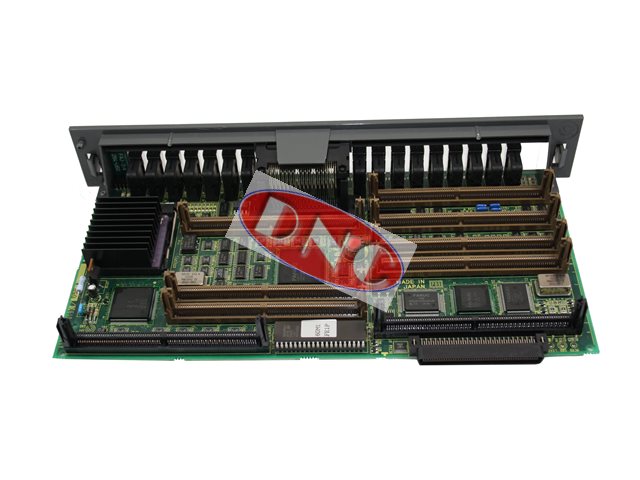

Fanuc A16B-3200-0190 main CPU board. This PCB is the main master CPU board for the Fanuc 16-C control system, such as the 16-MC, 160-MC, 16-TC and so on. This main CPU / master board can have many different SMD plug-in modules which then dictate the amount of memory, FROM, DRAM, SRAM, as well as storing the PMC ladder, system memory and programs, etc. The 16C main is fitted on the last of the Fanuc Series 16 controllers. If you require other Fanuc CPU cards.

The A16B32000190 is capable of running up to 6 axes and can run (Fanuc system software dependent) with several types of OPTION pcb’s and RISC processors for additional tasks. This board is supplied with no SMD modules, as they make the generic version of the board specialised to the CNC machine tool.

Additional information


180 Day Warranty

Product Enquiry
