Description
A86L-0001-0155#A

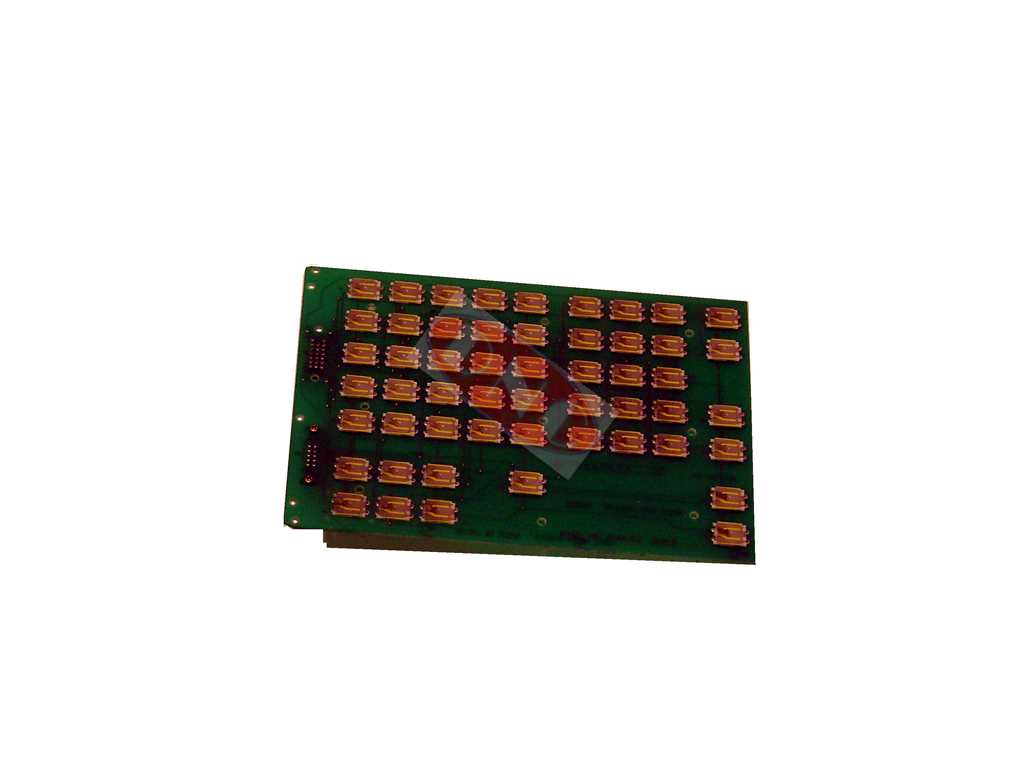

FANUC A86L-0001-0155#A Keyboard. This 50 key keyboard is fitted in standard CRT/MDI units with FANUC monitor display A61L-0001-0092. The A86L00010155#A is a rectangulr keyboard mounted on the right side of the 9″ monochrome or color CRT/MDI panel. This keyboard would normally be on Fanuc series 15M, 15T, controls.

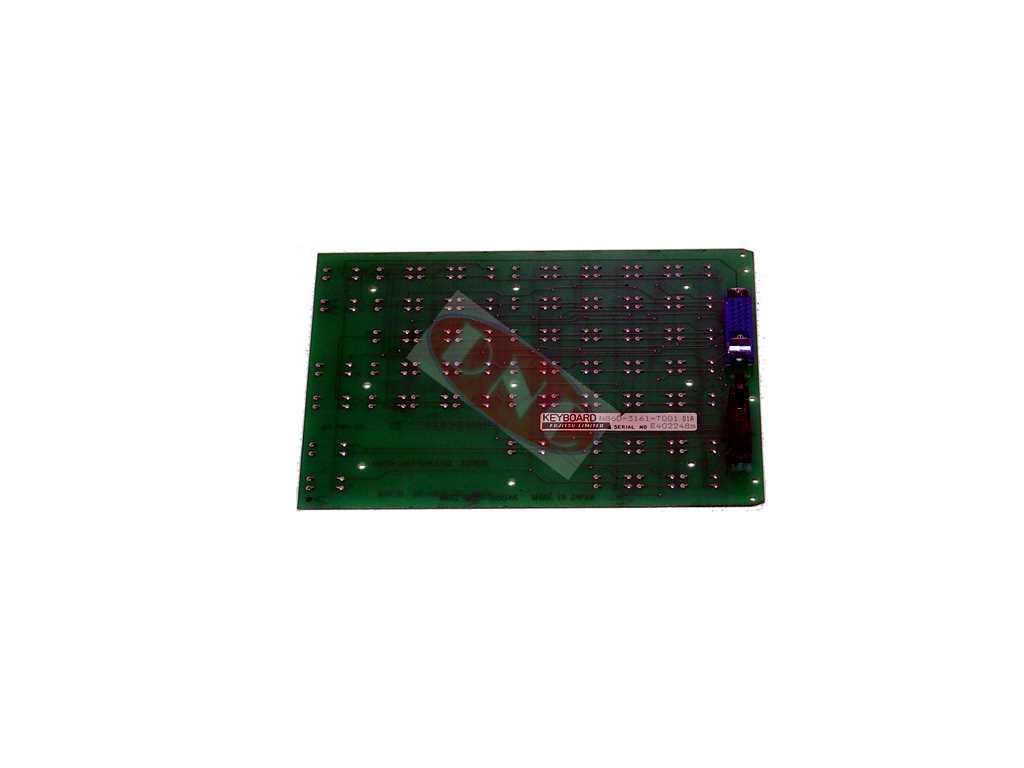

DNC offers exchange, testing facilities and in the unlikely event of no exchange stock available can offer same day / 24 hour turnaround repair and testing services for this keyboard. Please note the A86L00010155 and the A86L00010155#A are NOT interchangeable. Membranes for this keyboard start with A86L00010568 with a # and letter suffix dependent on the system being for machining center or a lathe and normally in stock. As all Fanuc keyboards this has alternate FANUC and Fujitsu part numbers. Part numbers also found on the PCB are N86D-3161-R001/02 and N860-316-T001 respectively. Contact us for more information.
