FANUC A02B-0236-B762

  • Series 160i-MA Control
  • 10.4″ High Intensity colour
  • System Testing available.
SKU: a02b-0236-b762 Category: Tag:

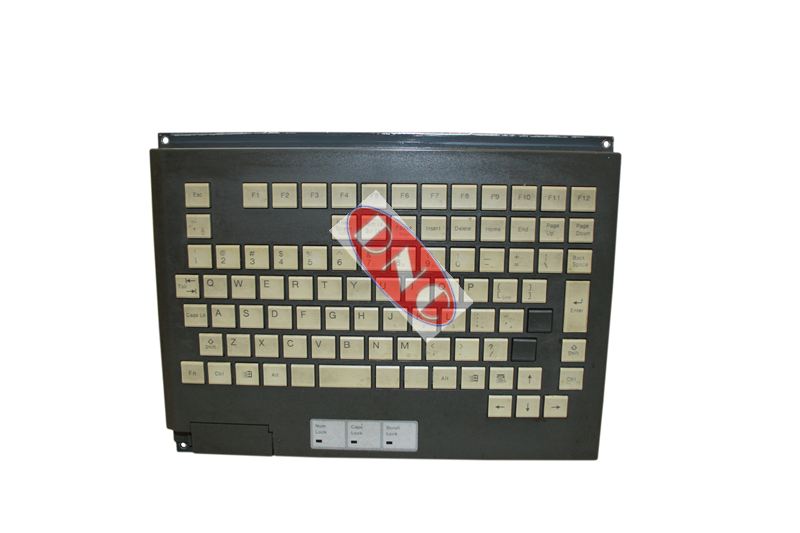

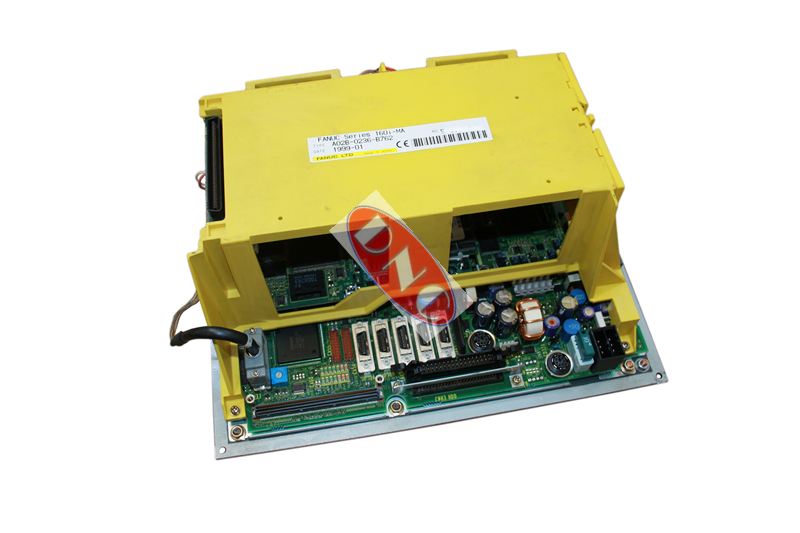

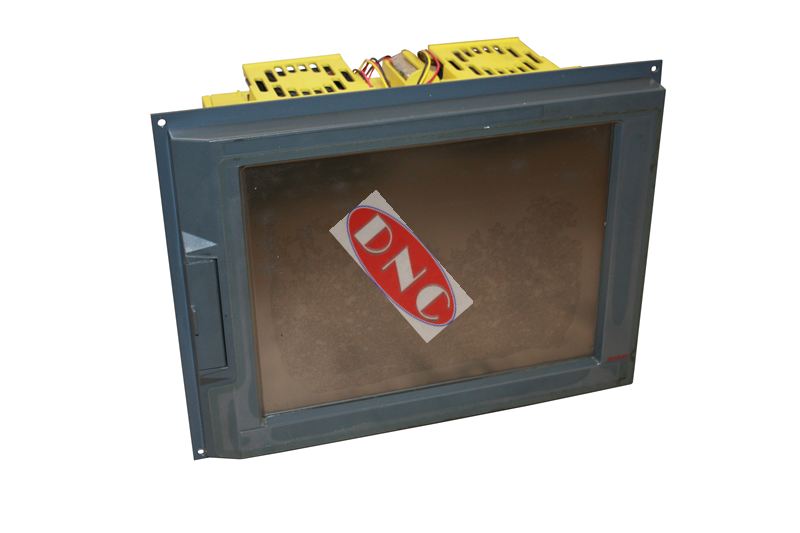

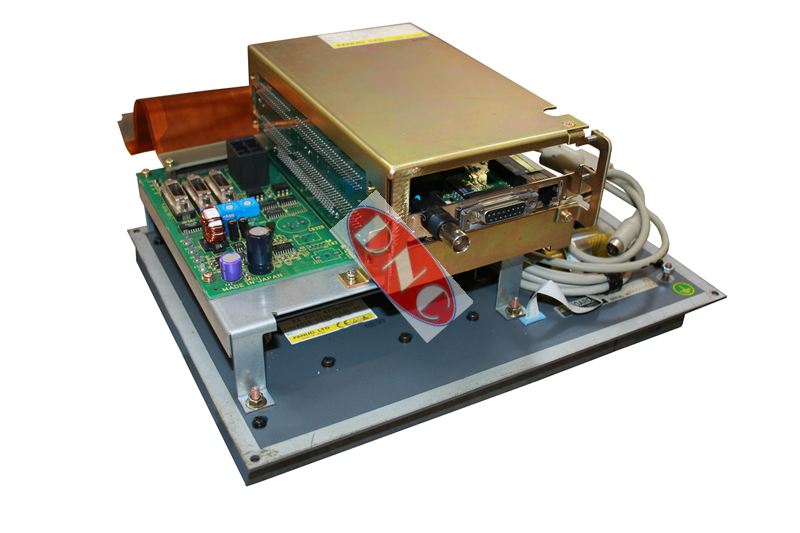

Fanuc A02B-0236-B762 Control. This Fanuc series 160i-MA system accompanied by the A02B-0236-C130/EC keyboard with hard disk for the OPEN CNC configuration. The control is a 10.4″ high intensity (remember this control was built in 1999) colour basic unit with touch panel and the latest INTEL pentium processor P75/P90, etc. In this 2 slot i series control were the FSSB interface for the Servos, PMC, RAM/ROM plugin cards as specified by the machine tool builder. We do not supply complete controls – wouldn’t it be great if we could offer an out the box 160i too sit in place of your current problem control system. However we do carry thousands of 16i / 18i / 21i series main boards and SMD plug in cards and modules and can work through your faulty control to find the problem PCB. Such as replacing the CPU processor, various memory smd’s, axis controllers and then testing to make sure its good.

If you do require the complete control system or repair of your A02B0236B762 then contact us to go through all the options. For more information on alarms please go to our FANUC ALARM CODE page
