A02B-0092-C146

FANUC A02B-0092-C146

  • 46 key Operator Panel CHIRON
  • Keyboard: A86L-0001-0126
  • Membrane: A98L-0005-0032#B series

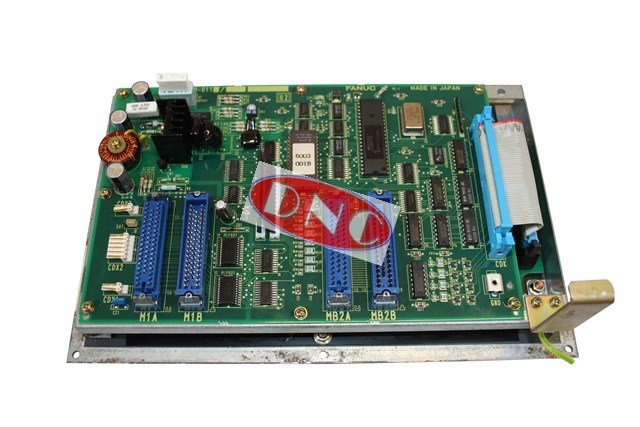

  • Operator PCB: A16B-2300-0110
SKU: A02B-0092-C146 Category:

Description

A02B-0092-C146

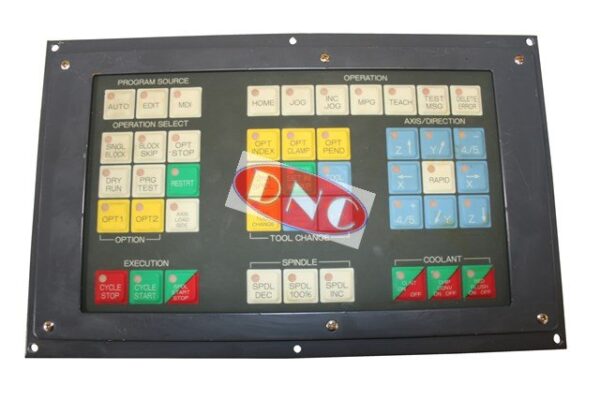

Fanuc A02B-0092-C146 Operator Panel. This operator panel and membrane layout is specific to the Chiron 0-MC 3 or 4 axis machining centre. This panel uses the later 0 series operator PCB for the system 0 and is compatible with the Fanuc 16, 18, 21TB systems assuming the PMC supports it. This panel is made up of the following parts: A16B-2300-0110 operator PCB, A86L-0001-0126 keyboard and A98L-0005-0032#B series membrane.

DNC currently carry this complete Fanuc op. panel A02B0092C146 in stock. Or can supply all the major parts, such as the keyboard, PCB or keysheet cover with links too the respective parts above. 180 warranty is offered on this operator panel, and the panel supplied will be fitted with a new OEM membrane.
