A02B-0166-B001

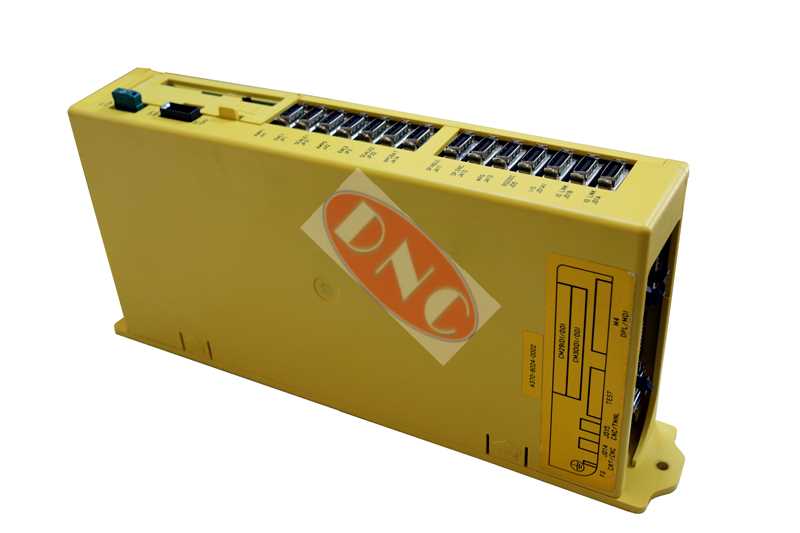

Fanuc A02B-0166-B001 Control. This series power mate model-D is a complete CNC control system includes the A20B-1004-0960 power supply unit. Need the system configuration list to check PCB’s fitted are correct.
We supply complete powermate model D unit. Containing the following parts with part number A16B-2201-0630 (Main board). Fitted with the following SMD modules: A20B-2901-0500 (i386sx CPU) A20B-2901-0480 (PM CRT); A20B-2900-0530 (256KB SRAM), A20B-2900-0160 (servo) and A20B-2900-0380 (type-A serial..
Fanuc A02B-0166-B001 Control. This is the earlier GE Fanuc series Power Mate-Model D supplied as a complete CNC control system which includes the A20B-1004-0960 power supply unit. DNC do offer support for Power Mate-Model D.
The part number A02B0166B001 is a generic part number with the main PCB A16B-2201-0630 featuring in-built 2 channel servo control and scale feedback for machines. This version has an addiontal source type I/O PCB C 32/24 A20B-2000-0670.
The main PCB’s, power supply board and the plugin SMD’s are available seperate. If unsure what is causing the problem with your model-D powermate then ship it to us with your system backup and we can work out what is happening and quote for repair, etc.
