A02B-0166-B501

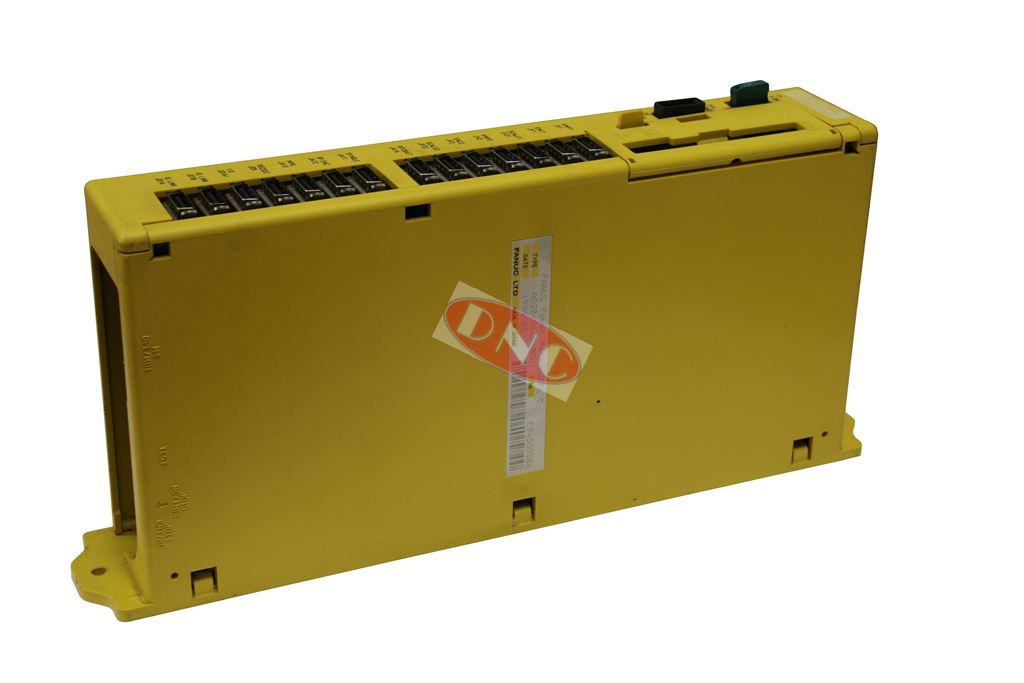

Fanuc A02B-0166-B501 Control. This GE Fanuc series Power Mate Model-D is a complete CNC control system includes the A20B-1004-0960 power supply unit. Need the system configuration list to check PCB’s fitted are correct.
We supply complete Powermate model D unit. Containing the following parts with part number A02B0166B501 with A20B-2100-0030 (Main board). Fitted with the following SMD modules: A20B-2901-0480 (PM CRT); A20B-2901-0660 (PMC RA3); A20B-2902-0232 (SPINDLE).
Fanuc A02B-0166-B501 Control. This is the earlier GE Fanuc series Power Mate-Model D supplied as a complete CNC control system which includes the A20B-1004-0960 power supply unit. DNC do offer support for Power Mate-Model D.

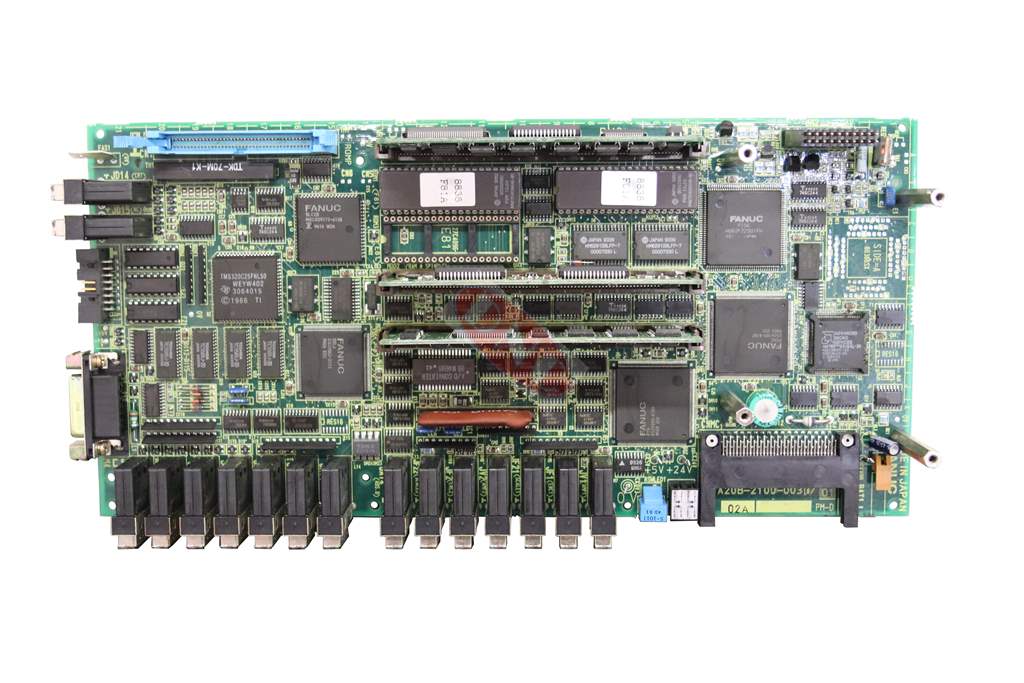

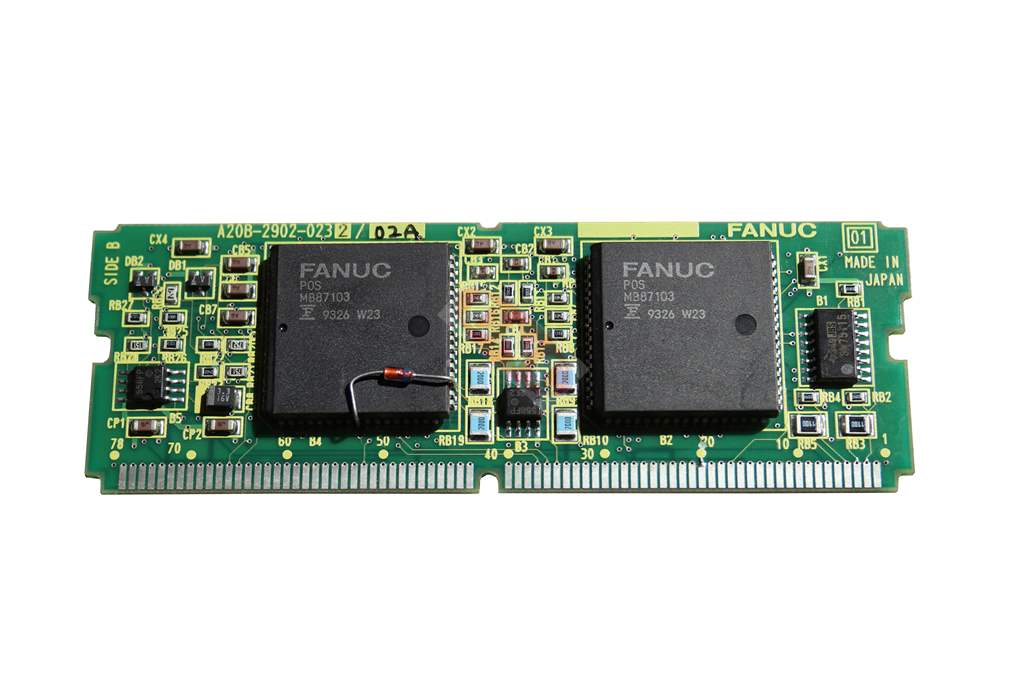

The part number A02B0166B501 is a generic part number with the main PCB A20B-2100-0030 featuring in-built 2 channel servo control and scale feedback for machines. This versions had a PM D/F ram and analog spindle control SMD such as the A20B-2902-0232.
Normally they have the same CRT graphics controller A20B-2901-0480 and PMC ladder card A20B-2901-0660.
