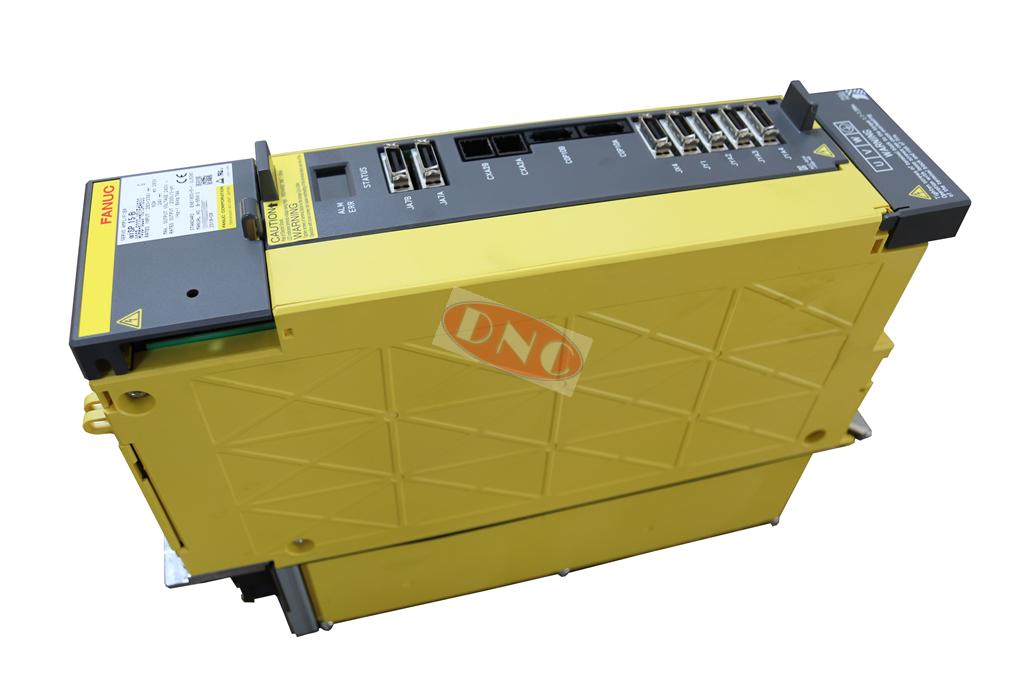

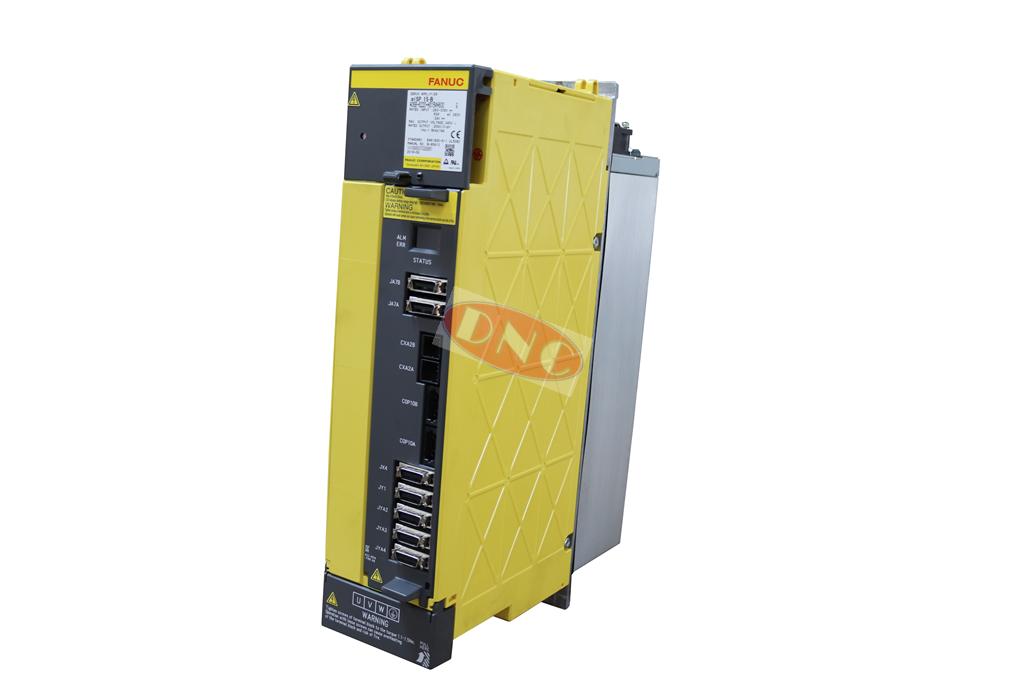

A06B-6220-H015#h600 Fanuc aiSP 15-B spindle amplifier
A06B-6220-H015#h600 74 amp spindle amplifier
A06B-6220-H015#H600 - Image 3

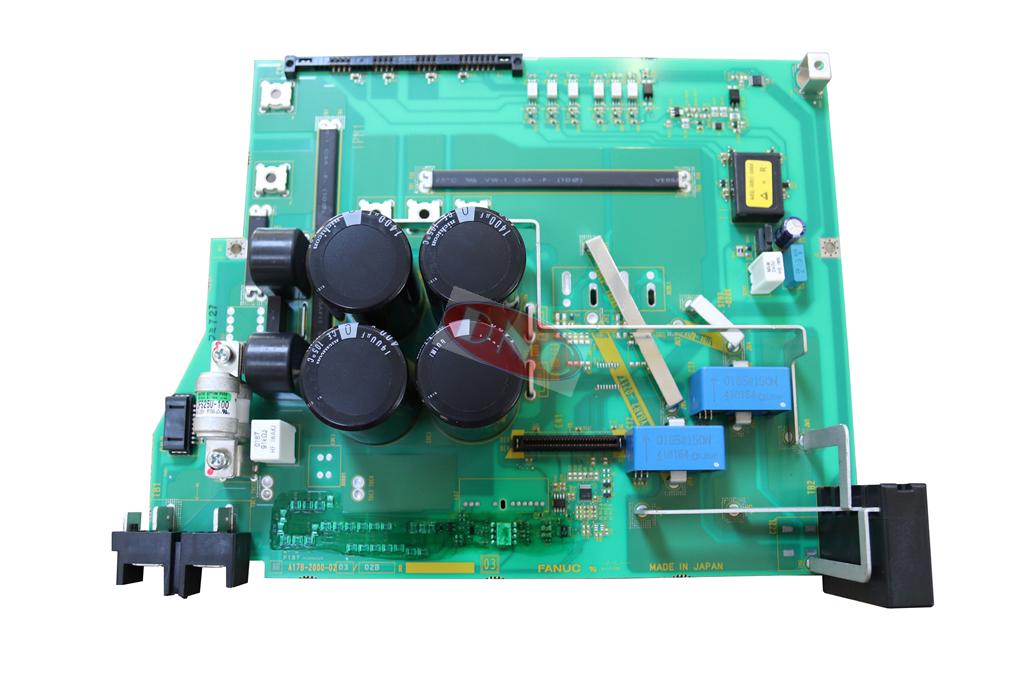

a17b-2000-0203 fanuc aiSP 15 power board A06B-6220-H015

A06B-6220-H015#H600

FANUC A06B6220H015#H600

  • aiSP 15, aiSP 15-B spindle module
  • Rated at 62 amp aiSP drive
  • Controlled by 0i or 3xi CNC series.
  • Exchange, test, surplus, repair
  • Warranty supplied on sale or refurb.

A06B-6220-H015#H600

Fanuc A06B-6220-H015#H600 aiSP 15-B spindle amplifier module. Manufactured from 2017 onwards; these model 15 servo amplifier model numcer is aiSP 15-B. The drive contains the -B spindle control pcb A20B-2102-067x pcb and power board A17B-2000-0203.

DNC offer extensive testing on Fanuc ALPHA i spindle modules, via either our 0i-MF+ controller. Too ensure that fault finding and testing after repair is done properly rather than assuming that parts might work, etc. Prices listed are for exchange only, though repair can be a cheaper option if machine downtime is not such a critical issue.

The H015 belongs to the second -B generation 6200 series Fanuc ai 200VAC ai spindle amplifier labeled as servo amplifier module, but with the aiSP 15-B model code. This version of unit for the late 6200 series drives is a 62 amp output.

Note: They’re are two INCOMPATIBLE versions of this SPINDLE AMPLIFIER with the same part number A06B-6220-H015#H600. Its the model code that changes aiSP 15-B or aiSP 15 which seperates the two; as the -B is for the later 0i-MF+; 31/32/35-B controls.

Services Offered on aiSP 15 or aiSP 15-B:

  • Fanuc Exchange – When stocked we offer a fully refurbished and tested spindle module on exchange basis (SWAP) for economically repairable, complete and non interfered with part.
  • Fanuc Repair – Regardless of the reasons whether shipping in for investigation, looking for a cheaper solution or we don’t have stock. Turnaround is normally 24 hours within business hours.
  • Fanuc Surplus – For burn outs or for critical spares DNC can often offer surplus drives.
  • Fanuc Testing – For the faults that are either intermeittent or not sure of the root cause we offer testing of your aiSP amplifier.
  • Fanuc Alarms – Consult our alarm tables for Fanuc ai spindle amplifiers.

Contact DNC:

For clarification on availability or pricing for A06B-6220-H015 please contact us at +44 (0) 1793 615356 or email, use our contact forms throughout the website.
