A06B-6220-H037#H600

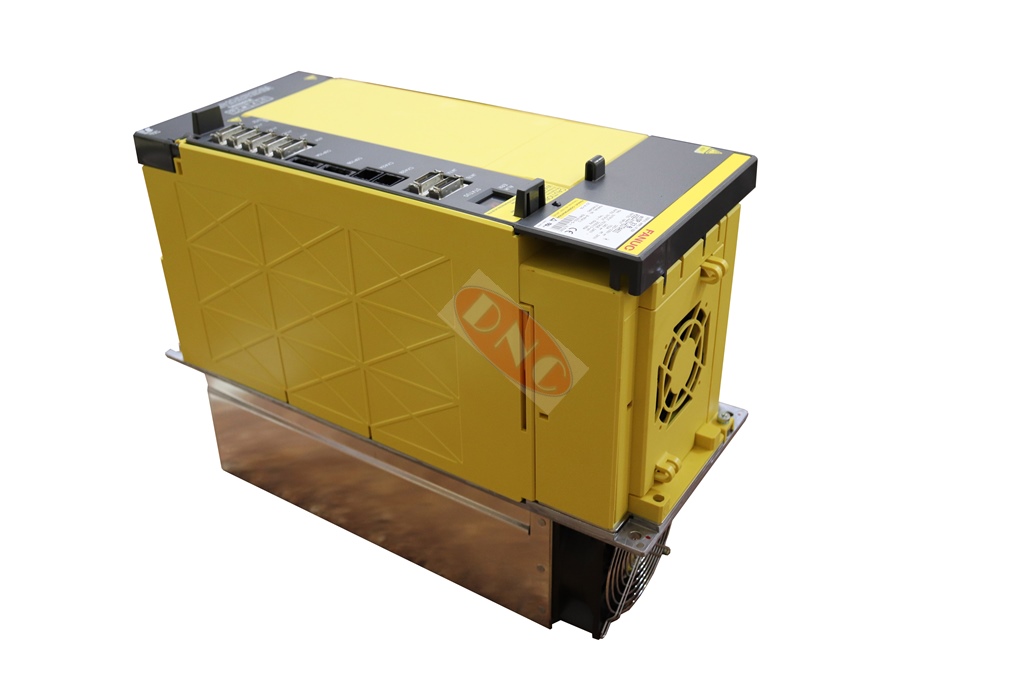

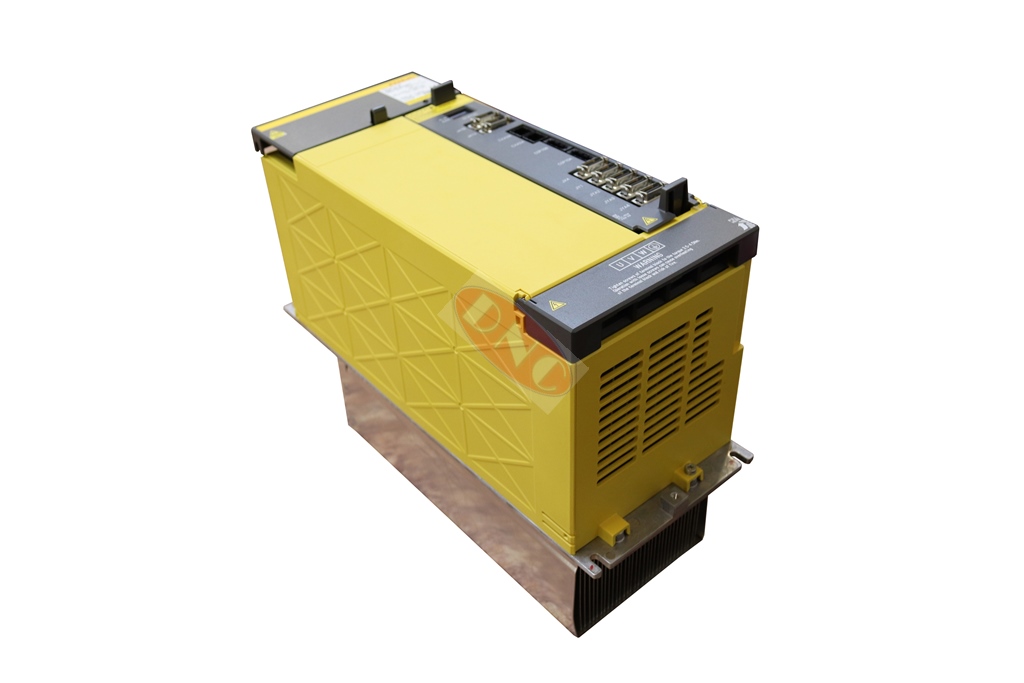

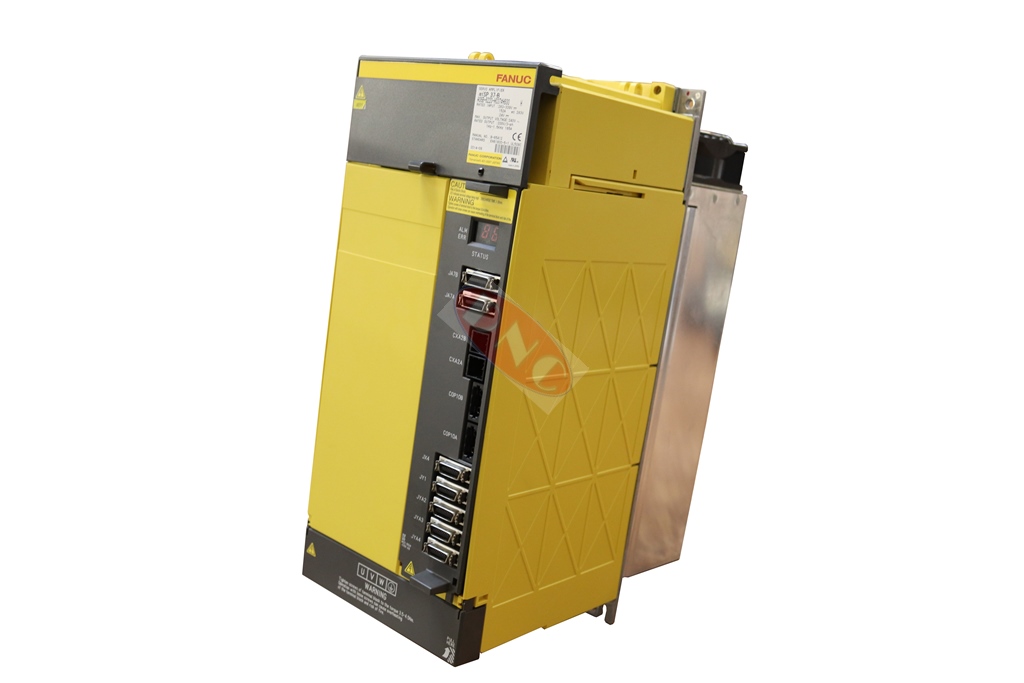

Fanuc A06B-6220-H037#H600 ai spindle module. Known as a spindle amplifier module or aiSP this drive is a aiSP 37 or aiSP 37-B dependent on its build date and which control system it runs with. The earlier aiSP 37 manufactured from 2011; with the aiSP 37-B built from late 2015 with an earlier varient running on various controls and later version running on 3x-B models or equiv 0i control.

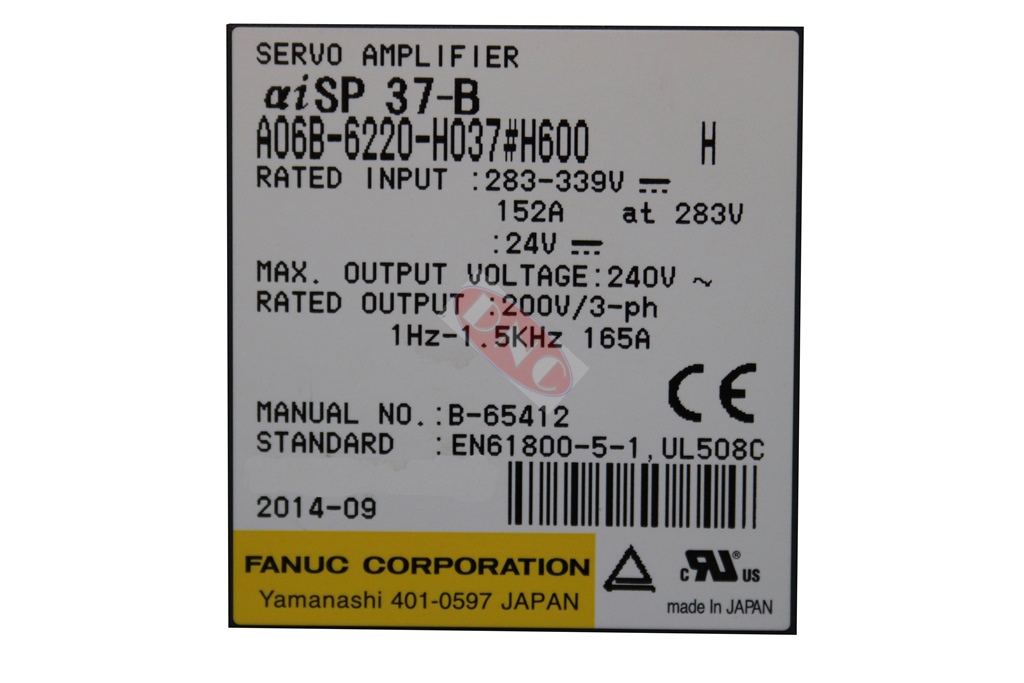

Note: Listed as a servo amplifier on the unit itself – though its a spindle amplifier module!

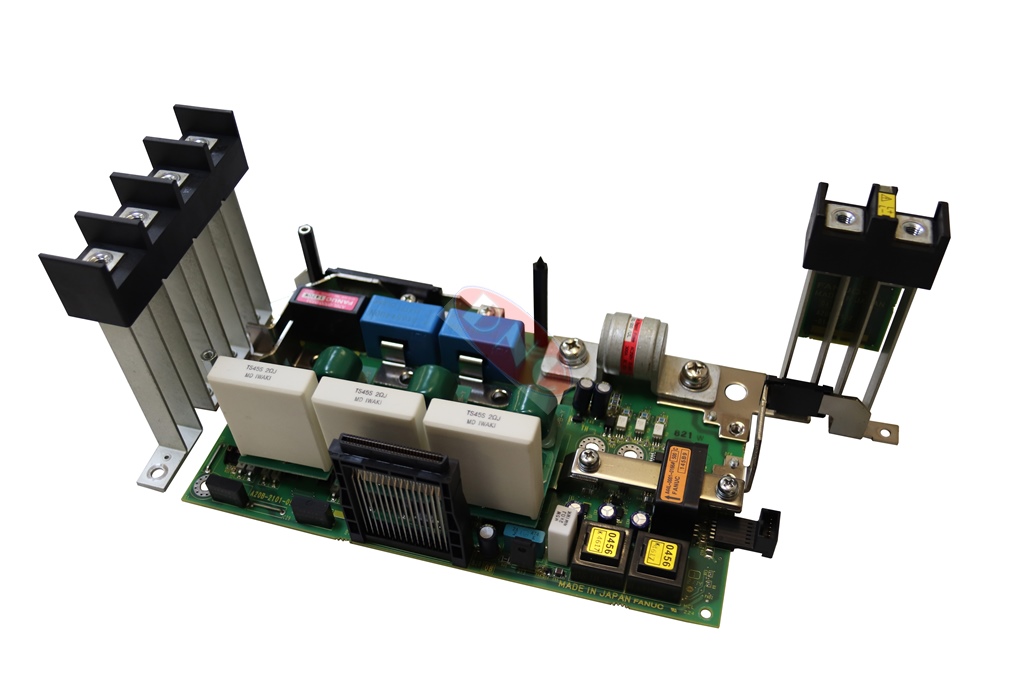

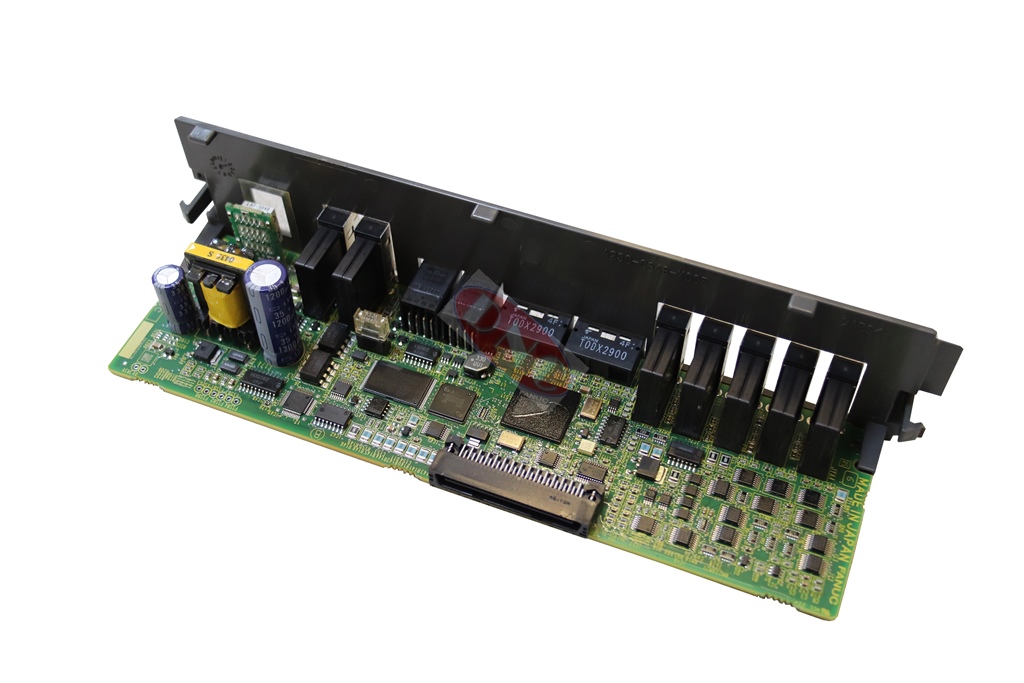

Part of the 200VAC series with power supply aiSP and servo amplifier modules; this spindle amp powers motors from ai37 with large punch (aiLP50) motors or smaller high speed asynchronous motor. Controlled from 0i or 3x-A controllers or later -B or plus verison. Spindle contains A20B-2102-0952 and A20B-2101-0870 with output of 152amps.
Please note -B varients are generally not interchangeable for early non -B versions of the spindle drive due to software on both amp and CNC control.
Services Offered on aiSP 37 or aiSP 37-B:
- Fanuc Exchange – When stocked we offer a fully refurbished and tested spindle module on exchange basis (SWAP) for economically repairable, complete and non interfered with part.
- Fanuc Repair – Regardless of the reasons whether shipping in for investigation, looking for a cheaper solution or we don’t have stock. Turnaround is normally 24 hours within business hours.
- Fanuc Surplus – For burn outs or for critical spares DNC can often offer surplus drives.
- Fanuc Testing – For the faults that are either intermeittent or not sure of the root cause we offer testing of your aiSP amplifier.
- Fanuc Alarms – Consult our alarm tables for Fanuc ai spindle amplifiers.
Contact DNC:
For clarification on availability or pricing for A06B-6220-H037 please contact us at +44 (0) 1793 615356 or email, use our contact forms throughout the website.
