A06B-6088-H122

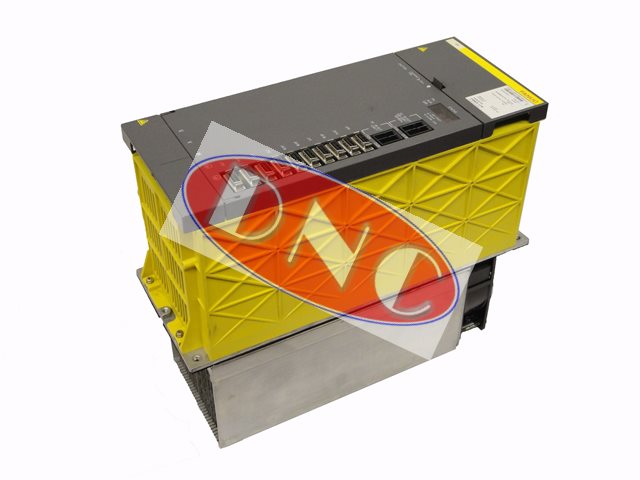

Fanuc A06B-6088-H122 spindle amplifier module. Listed and manufactured as ALPHA series model SPM-22 spindle drive with the type 4 or IV interface type. This amplifier is capable of outputting 25.2kW and can not only accept the motor sensor, whether simple M, MZ or the more complicated CZ. It can take on an addtional two sensors from else where on the spindle for multiple feedback applicaitons.
This particular unit is a 150mm wide unit and was the second most powerful amplifier of this 200VAC series of drives. Powering motor models such as the a22 / aP30 model AC spindle motors. Found on medium sized machine tools. Fitted on early controls from 0-MC, 0-TC through 0 model D onto 15, 16, 18, 21 and i systems. Either hardwired from the system or via I/O link unit.
Unit specification is A06B-6088-H122 with a wiring board A20B-1006-0487 with A20B-2902-0390 firing board and a control PCB of A16B-2202-043x. None of the internal PCB’s from this drive are available seperate from the complete drive. We do however supply transistors, fuses and fans for this drive and most Fanuc drives.
We also stock the motors and can test both the drive and motors seperate or together on our closed loop in-house Fanuc test rigs. Services offered include service exchange, clean and testing, fault diagnosis and inspection backed by comprehensive repair facilities and knowledge gained from repairing Fanuc electronics since 1994.
If you are unsure of the faults meaning being displayed on your SPM-22 type IV consult our ALPHA spindle amplifier alarms.
If you require further information about stock, repair turnaround, pricing or fault information then contact us.
