A06B-6047-H203

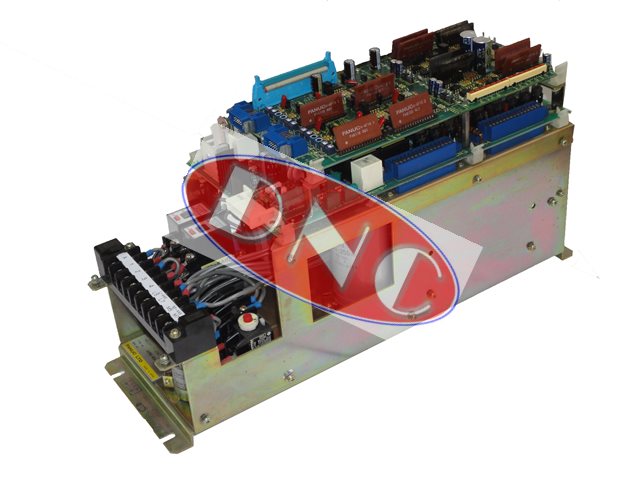

Fanuc A06B-6047-H203 velocity control unit. DC twin axis drive uses analog interface between itself and Fanuc CNC system 6 and early 10/11 controls. This drive along with the rest of the 6047 series of vcu (velocity control units) is Fanuc’s last DC series servo drives. The H203 similar to other 6047 dual channel amps is built around a twin pcb configuration in which the firing circuit and axis control were seperated between the two boards.
At DNC we supply the boards as a pair as a result the A20B-1000-0220 and A16B-1200-0230 supplied together. If ordering the drive it comes complete with the aforementioned cards. This dual channel drive is normally twinned with DC model 0M and model 5M yellow cap servo motors.
Carrying these drives in stock for over 28 years; there ain’t much we dont know about them. Hence we can offer extensive testing, repair, rebuild capabilities. Our test and repair turnaound is 24 hours. If you require a A06B-6047-H203 faster; then take advantage of our stocked service exchange available to ship. Stocks permit, surplus possible.
Further too supplying the control PCB’s for this drive, we also carry transistor modules and fuses. If you are unsure what the LED’s lit ont he front PCB of the drive refer too then look up our DC axis alarms page.
Contact us on +44 (0)1793 615356 for further information on stock, prices for various services beyond listed on this page. Turnaround times on testing and repair or rebuild services dependent on the condition of your 0M/05, 0M/05 DC velocity control unit.
