FANUC A02B-0072-C023

  • 14 inch colour CRT/MDI unit 10T
  • Fitted on Hardinge CHNC II Lathe
  • CRT: A61L-0001-0074 KB: A20B-1000-0270
  • PCB: A20B-1000-0850 PSU: A20B-1001-0160

1 in stock

SKU: a02b-0072-c023 Category:

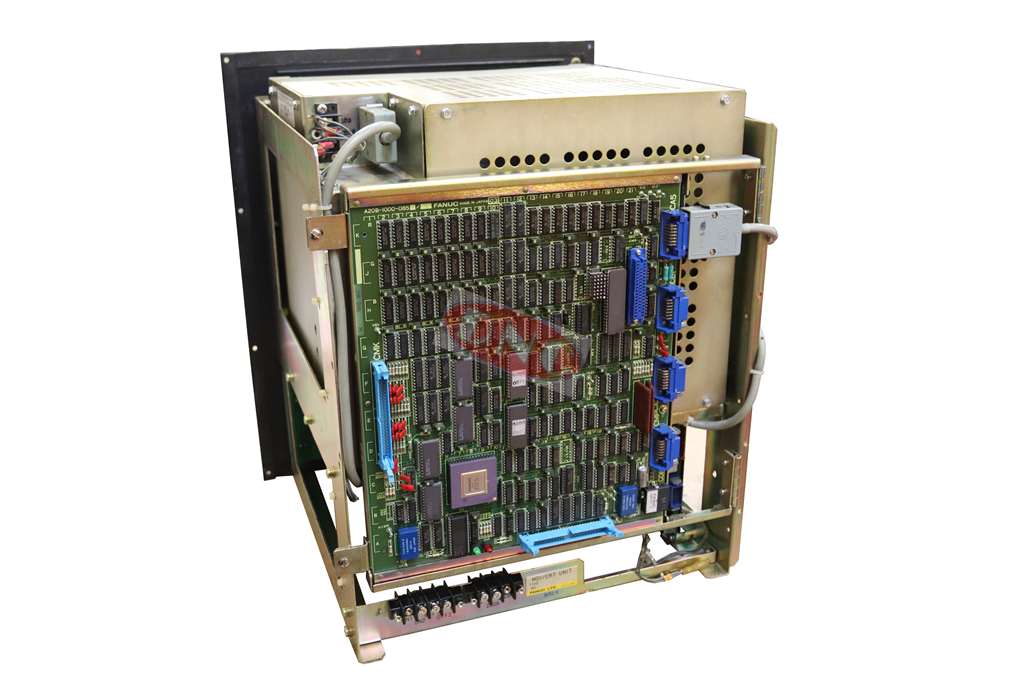

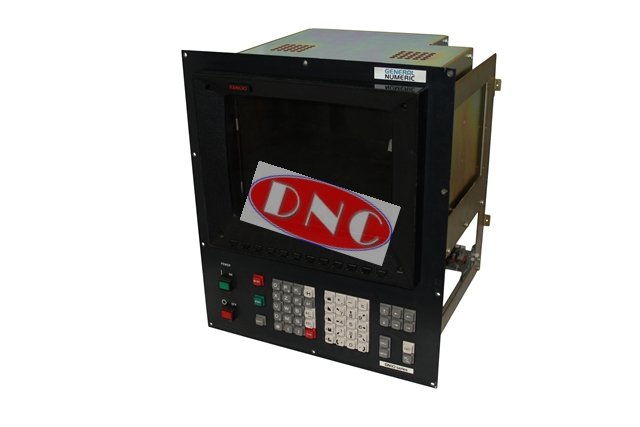

Fanuc A02B-0072-C023 CRT/MDI Unit. This unit is a 14 inch colour CRT/MDI with horizontal under screen keyboard unit made by General Numeric / Fanuc. A02B0072C023 is a MDI panel comprising a 14 inch colour CRT monitor (A61L-0001-0074), with 2 hard keyed keyboard; (main A20B-1001-0270 A20B-1000-0891) with a A20B-1001-0160 PSU and A16B-1000-0850 graphic PCB fitted on the back outside the monitor, etc. The complete colour MDI/CRT is in stock, and so are the individual component parts which are all in stock. We’ve even sold a fascia surround in the past to help a customer tidy his machine and flog, etc. Used on the Fanuc 10T control systems labeled as GN10.

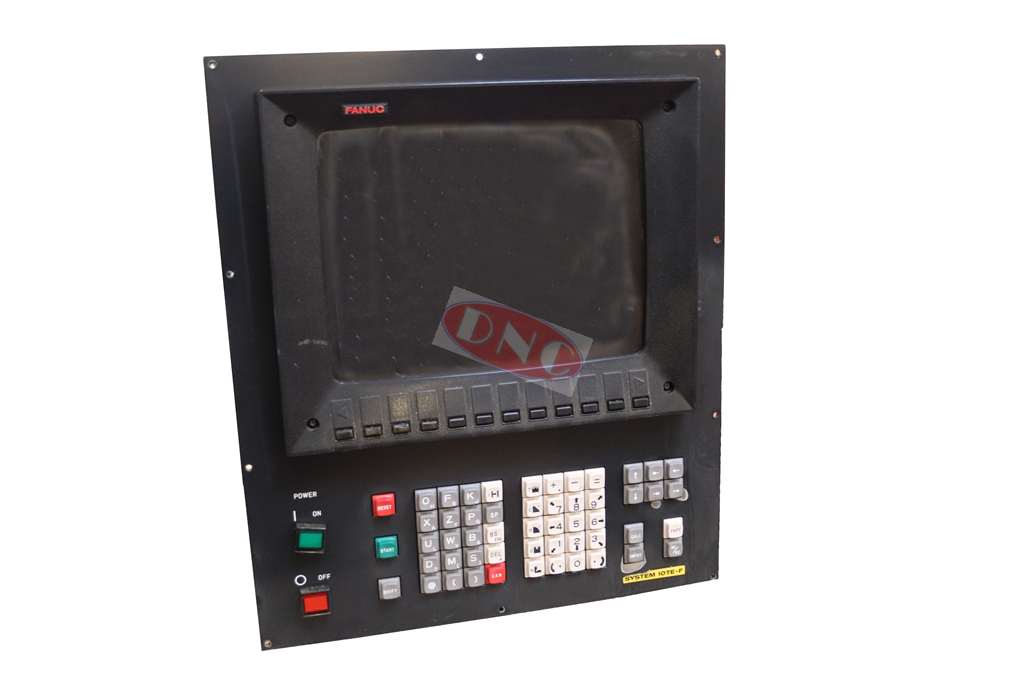

On the rare occasion these CRT/MDI units can also be labelled differently. Resulting in labels such as Fanuc SYSTEM 10TE-F.

Additional information

Weight25 kg
Dimensions45 × 45 × 45 cm
