A06B-0229-B000

FANUC A06B-0229-B000

  • ALPHA a8/3000HVi servo motor
  • Same Day / 24 hour repair possible
  • Tapered shaft with key, 1K ABS
SKU: A06B-0229-B000 Category: Tag:

Description

A06B-0229-B000

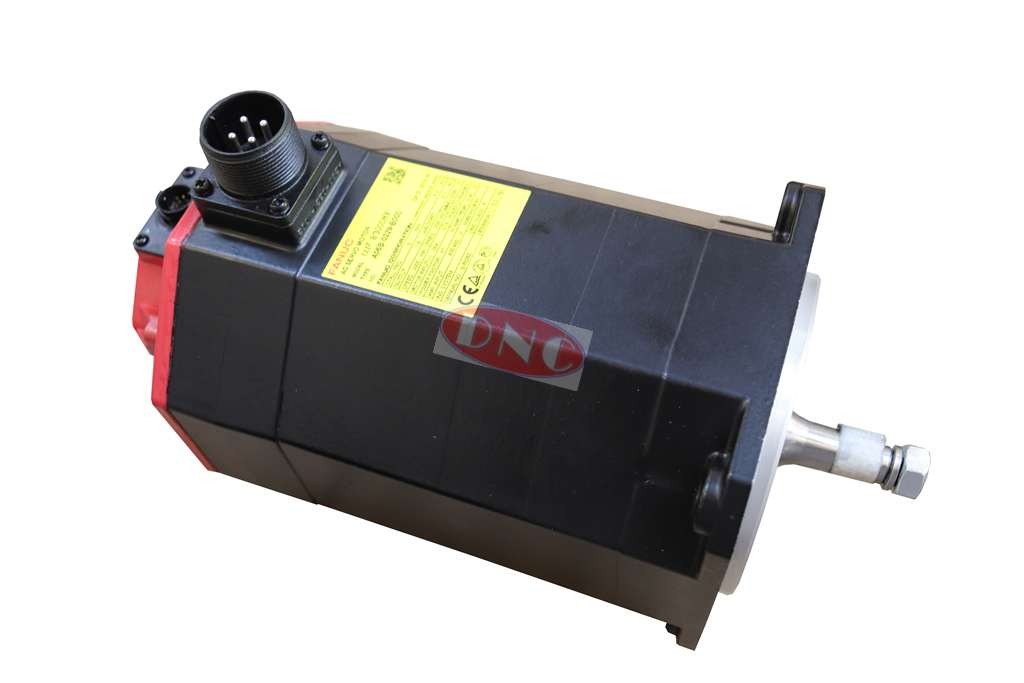

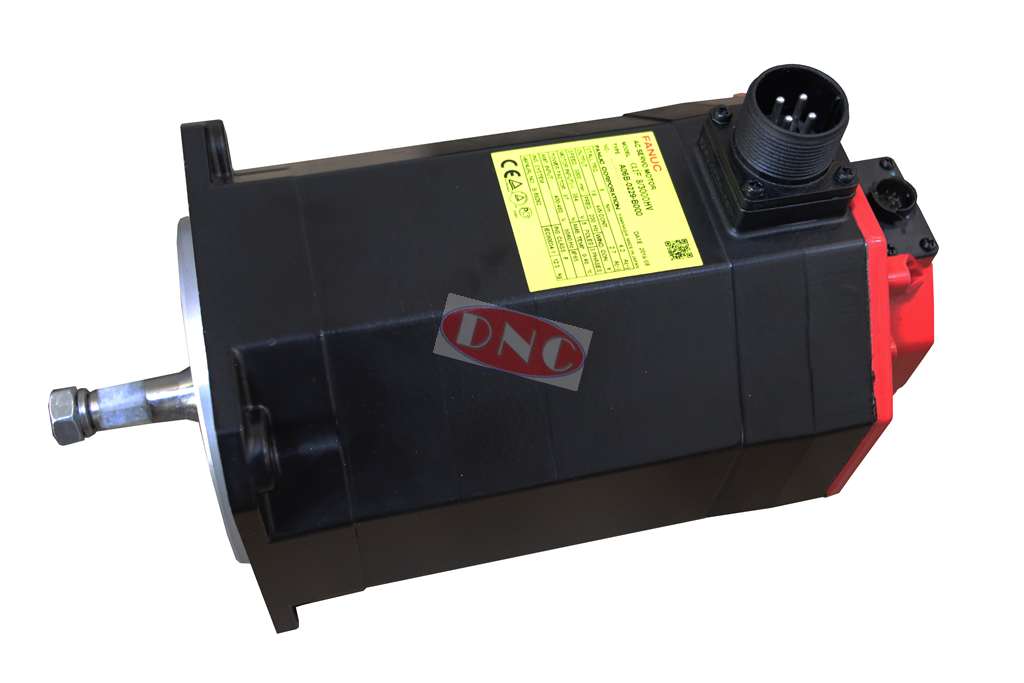

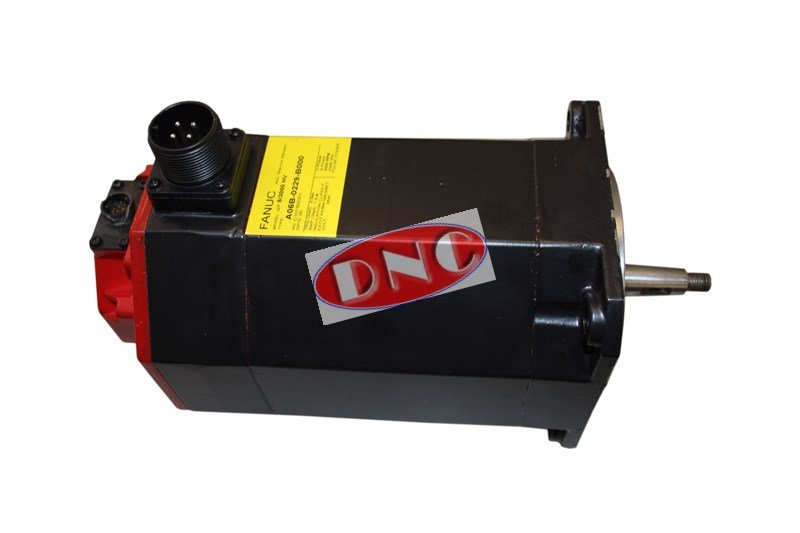

Fanuc A06B-0229-B000 ALPHA model aiF8/3000HV servo motor. This high voltage motor series stats are: 1.6kW, 8Nm TRQ, 1.6 Amp, 3 phase 364V @ 200Hz, Max 3000 RPM motors, with a tapered shaft key, no brake and with IP65 standard seals fitted.

This A06B0229B000 motor is fitted with an ALPHA i absolute encoder a1000iA series. The motor is available either exchange, new (if stock permits), surplus for your CNC machine tool, testing fault diagnosis and repair services are available and so is a full backup Fanuc Drive service, if the motor is not faulty. Warranty for all aiF8/3000HV motors is 12 months !
