A06B-0236-B400

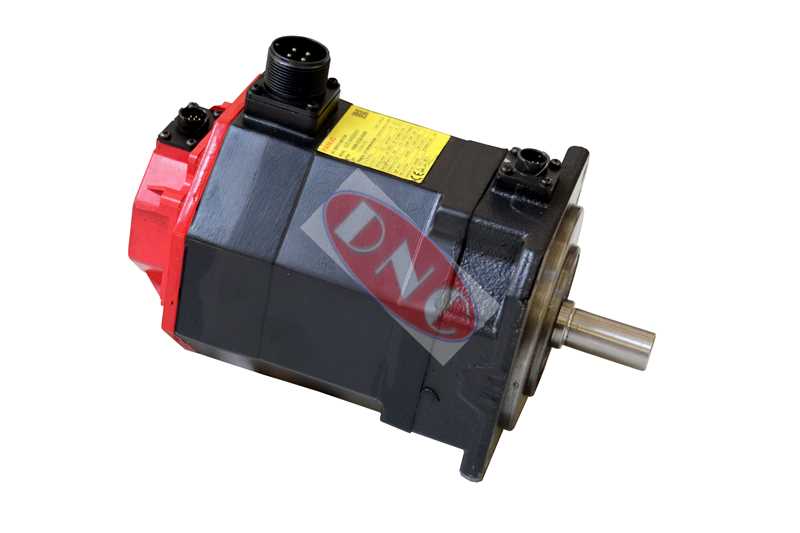

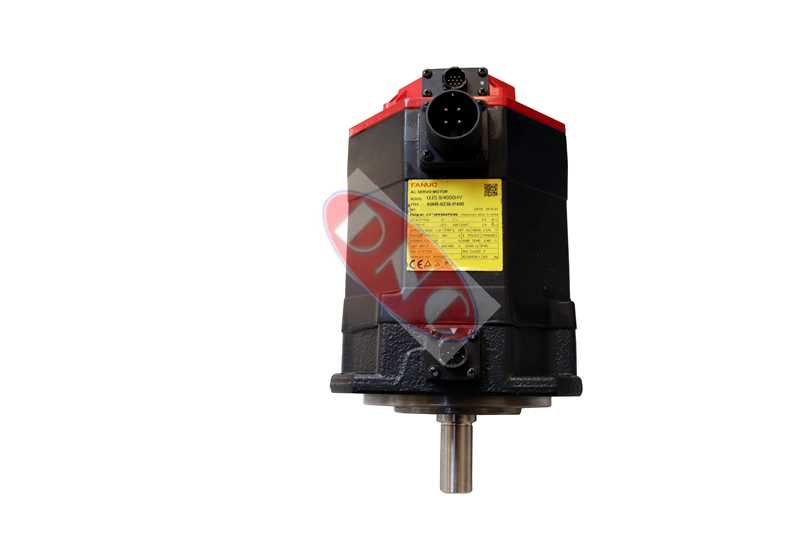

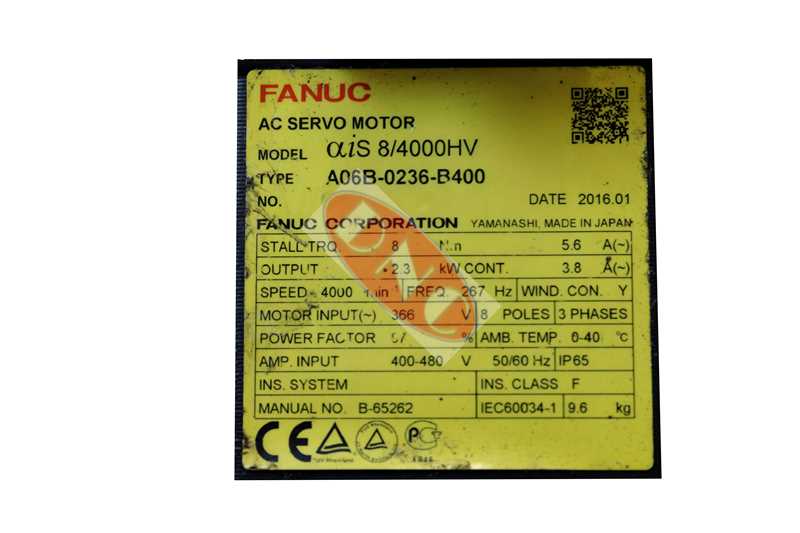

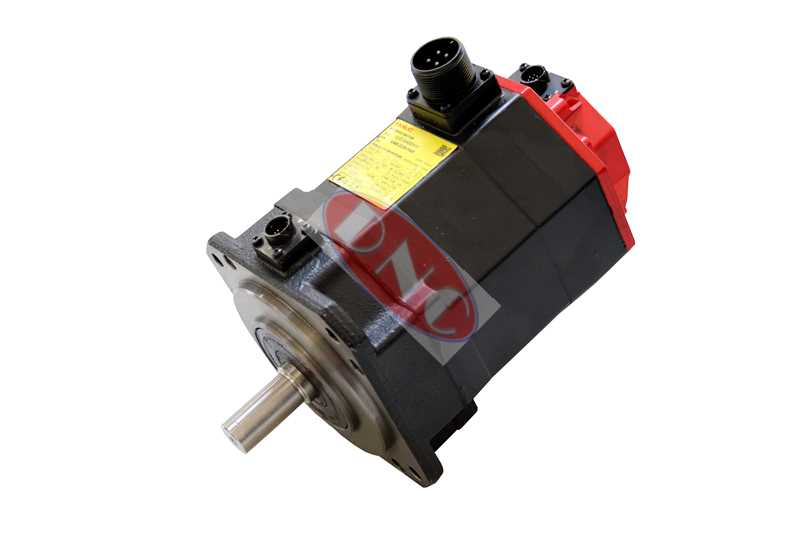

Fanuc A06B-0236-B400 AC servo motor. Belonging to the ALPHA i series of motors from the 400VAC high voltage range of motors and servo amps. This motor series stats are the following: 3.8kW; 8Nm TRQ, 5.8 Amp, 3 phase, 200Hz, maximum 4000 RPM. Motor has a straight shaft, 24VDC brake fitted and standard IP65 shaft seals fitted.
This motor is fitted with an ALPHA i absolute encoder aA1000i series. The motor is available from DNC either exchange, new (if stock permits), surplus for your CNC machine tool, testing fault diagnosis and repair services are available and so is a full backup Fanuc Drive service, if the motor is not faulty.
The iS stands for neodymium magnets. Warranty on A06B0236B400 as with all Fanuc motors supplied or repaired by DNC is 12 months.
