A06B-0313-B001

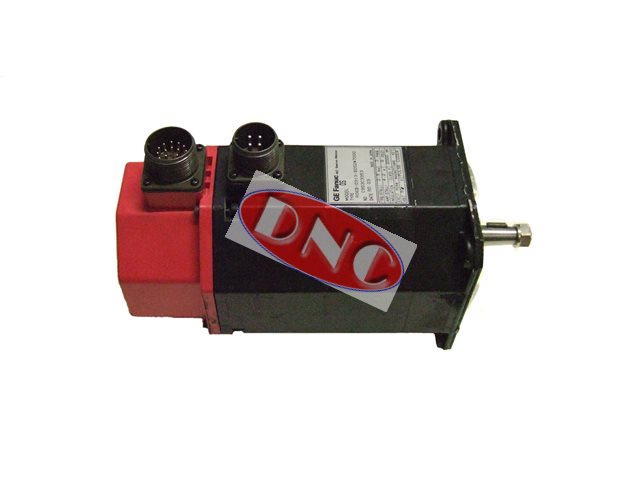

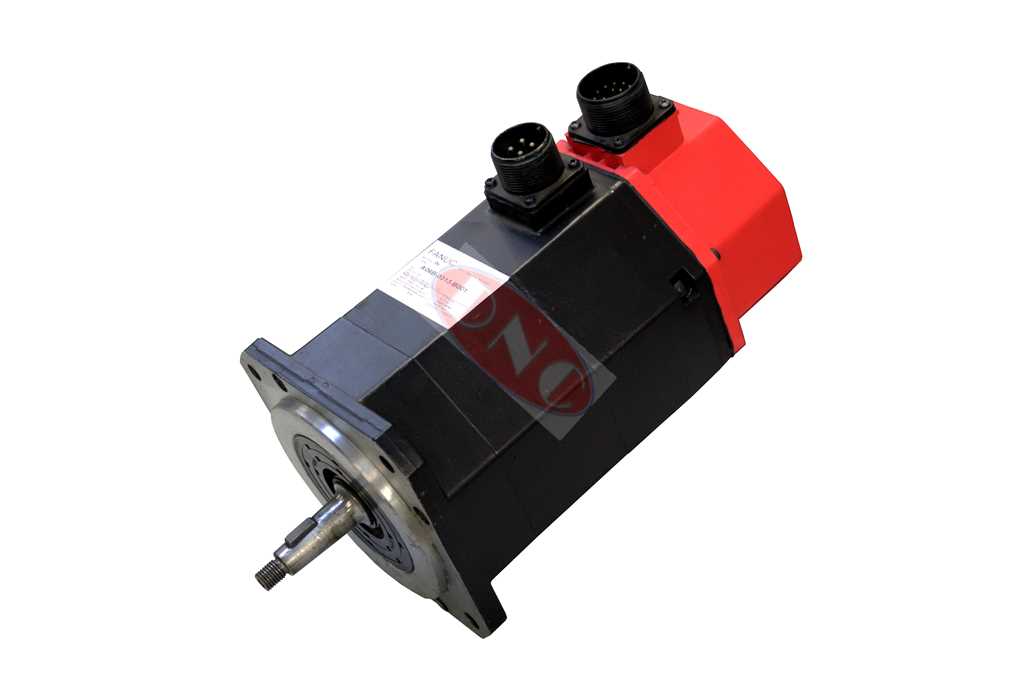

Fanuc A06B-0313-B001 Model 0S AC Servo Motor. The 0S series motor stats are: 2.9Nm TRQ, 4.2 Amp, 3 phase 91V at 133Hz, maximum RPM of 2000. This motor is fitted with a keyed tapered shaft and standard oil seals. Normally fitted on smaller CNC machine tool applications.
This 0S motor is fitted with a black incremental 2000 pulse encoder via a coupling system. The encoder is available seperate when stocked. The motor is avialable either exchange, surplus or we can inspect and diganose faults with your motor such as bad windings, encoder issues or locked up rotors/shafts.
Assuming the shaft on your motor is not snapped or bent in any way then we can rebuild these motors from the ground up; including replacement encoder, bearing, red cap, windings with full testing.
Warranty for all A06B0313B001 motors is 12 months.
