A06B-0313-B006

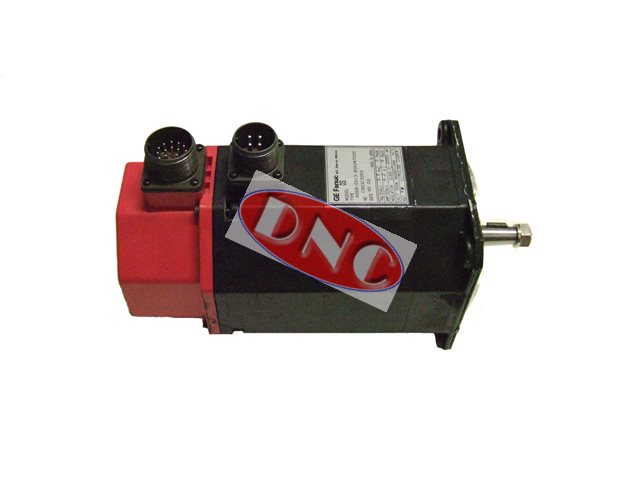

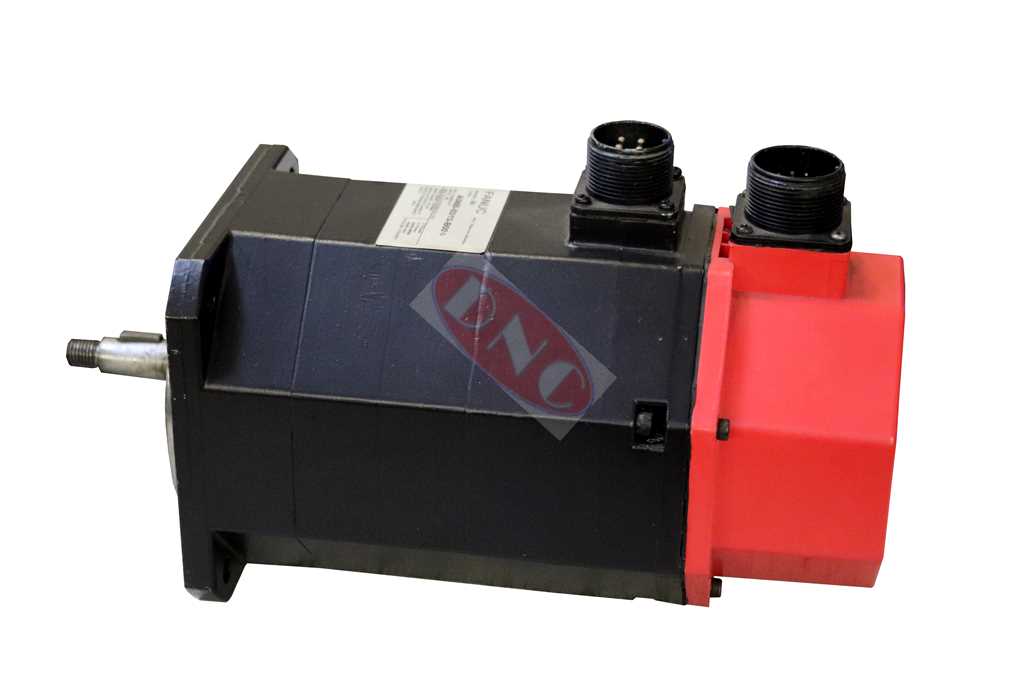

Fanuc A06B-0313-B006 Model 0S AC Servo Motor. The 0S series motor stats are: 2.9Nm TRQ, 4.2 Amp, 3 phase 91V at 200Hz, maximum RPM of 3000. This second generation motor is fitted with a keyed tapered shaft and standard oil seals. Normally fitted on smaller CNC machine tool applications.
This 0S motor is fitted with a red incremental 3000 pulse encoder via interlocking dog system. The encoder is available seperate when stocked. The motor is avialable either exchange, surplus or we can inspect and diganose faults with your motor such as bad windings, encoder issues or locked up rotors/shafts.
Assuming the shaft on your motor is not snapped or bent in any way then we can rebuild these motors from the ground up; including replacement encoder, bearing, red cap, windings with full testing.
Warranty for all A06B0313B006 motors is 12 months.
