A06B-0313-B067

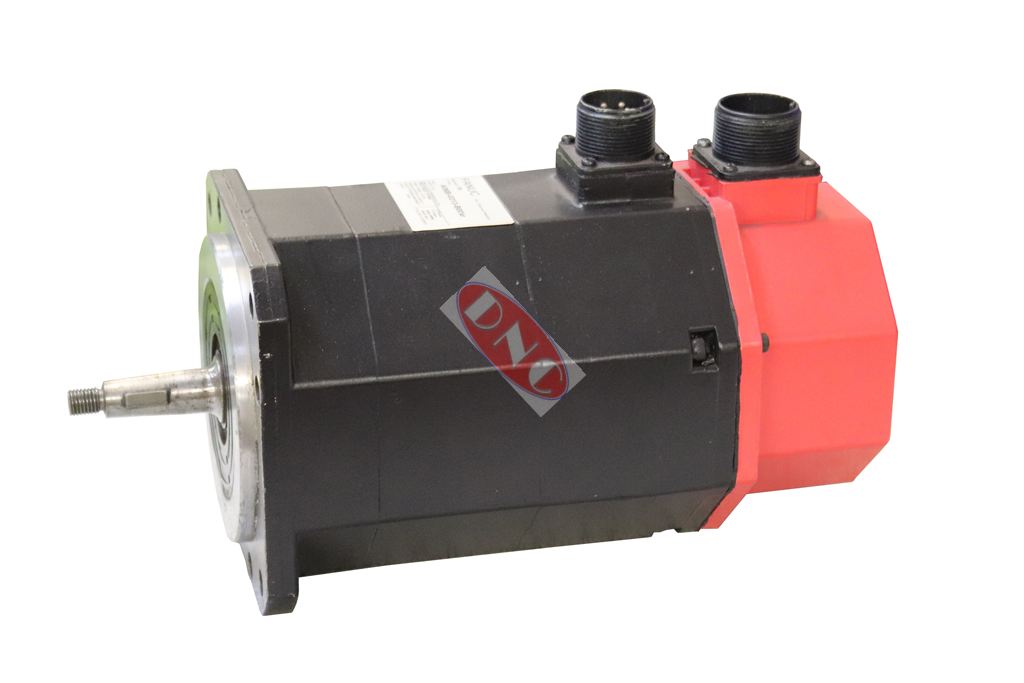

Fanuc A06B-0313-B067 Model 0S AC Servo Motor. The 0S series motor stats are: 2.9Nm TRQ, 4.2 Amp, 3 phase 91V at 200Hz, maximum RPM of 2000. This late generation motor is fitted with a keyed tapered shaft and standard oil seals. Normally fitted on smaller CNC machine tool applications.

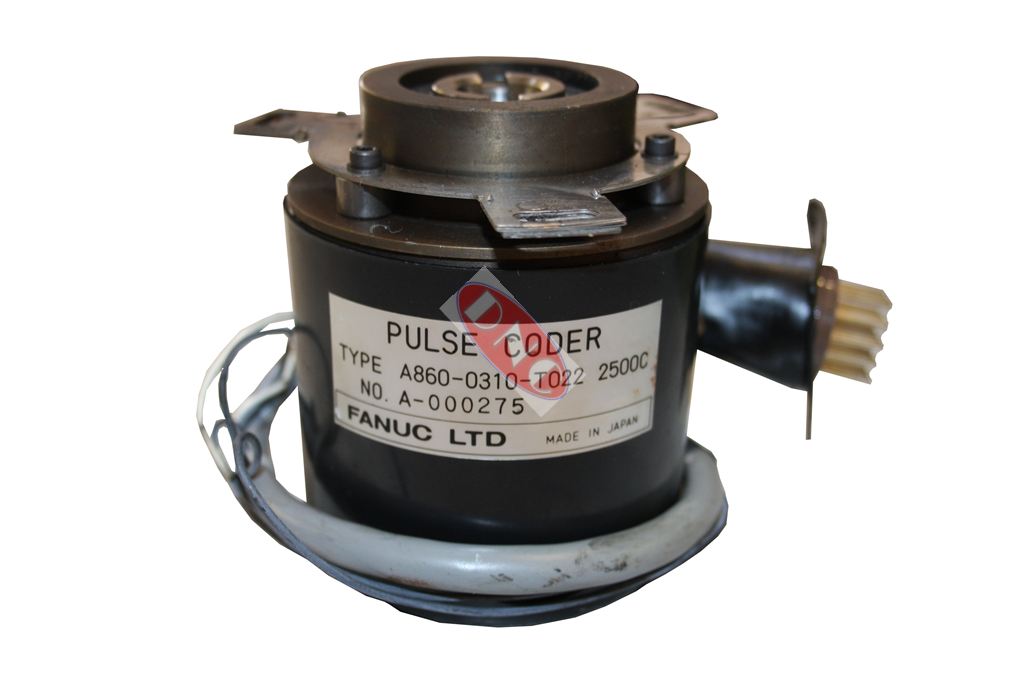

This 0S motor is fitted with a black high resolution 25000 pulse encoder via screw coupling system. The encoder is available separate when stocked. The motor is available either exchange, surplus or we can inspect and diagnose faults with your motor such as bad windings, encoder issues or locked up rotors/shafts.
Assuming the shaft on your motor is not snapped or bent in any way then we can rebuild these motors from the ground up; including replacement encoder, bearing, red cap, windings with full testing.
Warranty for all A06B0313B067#7000 motors is 12 months.
