A06B-0314-B041

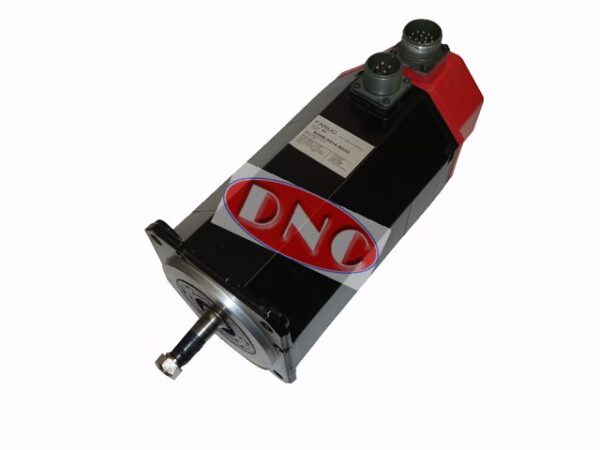

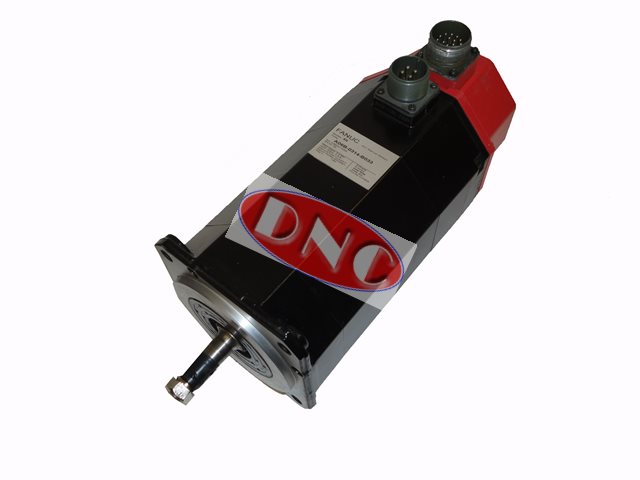

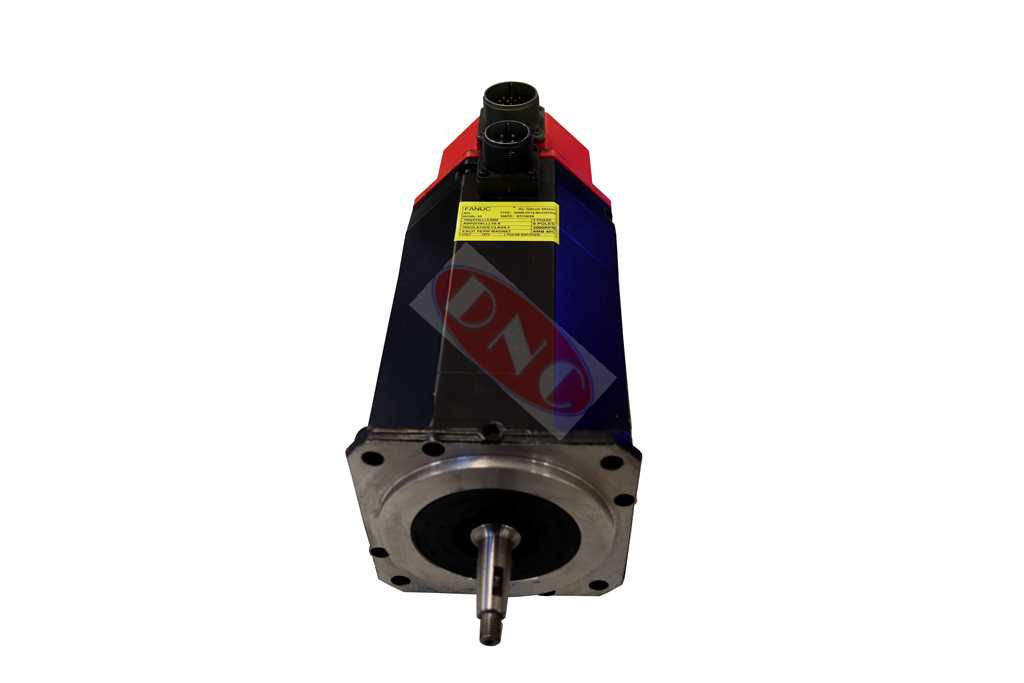

Fanuc A06B-0314-B041 Model 5S AC Servo Motor. The 5S series motor stats are: 5.9Nm TRQ, 5.8 Amp, 3 phase 126V at 200Hz, maximum RPM of 2000. This second generation motor is fitted with a keyed tapered shaft and standard oil seals. Normally fitted on smaller CNC machine tool applications.
This 5S motor is fitted with a red absolute 2000 pulse encoder via interlocking dog system. The encoder is available seperate when stocked. The motor is avialable either exchange, surplus or we can inspect and diganose faults with your motor such as bad windings, encoder issues or locked up rotors/shafts.
Assuming the shaft on your motor is not snapped or bent in any way then we can rebuild these motors from the ground up; including replacement encoder, bearing, red cap, windings with full testing.
Warranty for all A06B0314B041 motors is 12 months.
