A06B-0315-B033

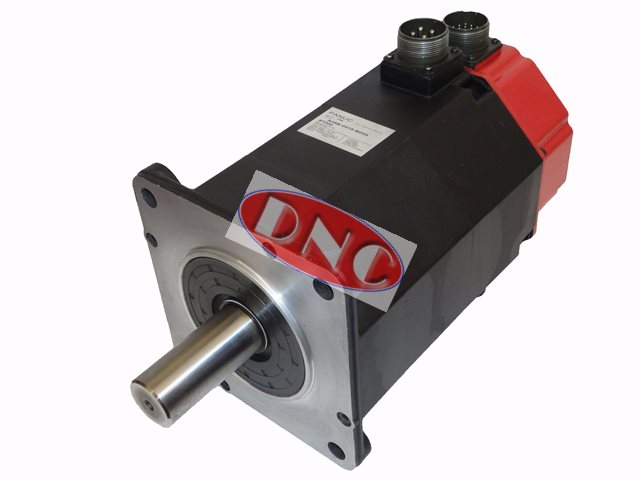

Fanuc A06B-0315-B033 AC servo motor. The 10S series motor stats are: 12Nm TRQ, 7.6 Amp, 3 phase 150V at 133Hz, maximum RPM of 2000. This motor is fitted with a straight shaft and standard oil seals.
This 10S motor is fitted with a black absolute 3000 pulse encoder via a coupling system. The encoder is available seperate when stocked. The motor is avialable either exchange, surplus or we can inspect and diganose faults with your motor such as bad windings, encoder issues or locked up rotors/shafts.
Assuming the shaft on your motor is not snapped or bent in any way then we can rebuild these motors from the ground up; including replacement encoder, bearing, red cap, windings with full testing.
Warranty for all A06B0315B033 motors is 12 months.
