A06B-0533-B251

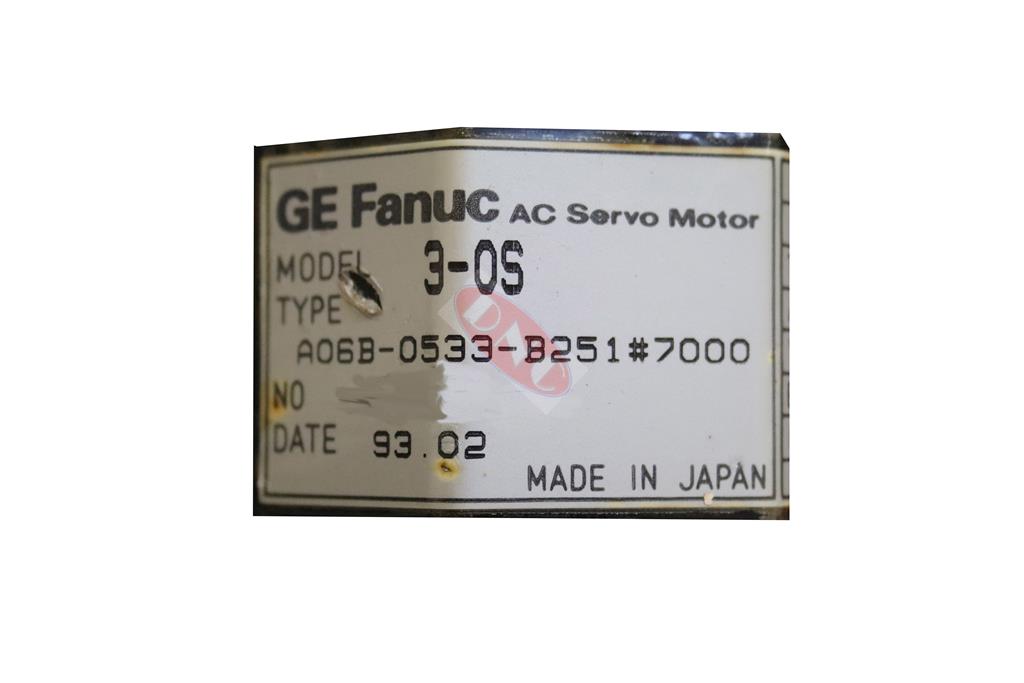

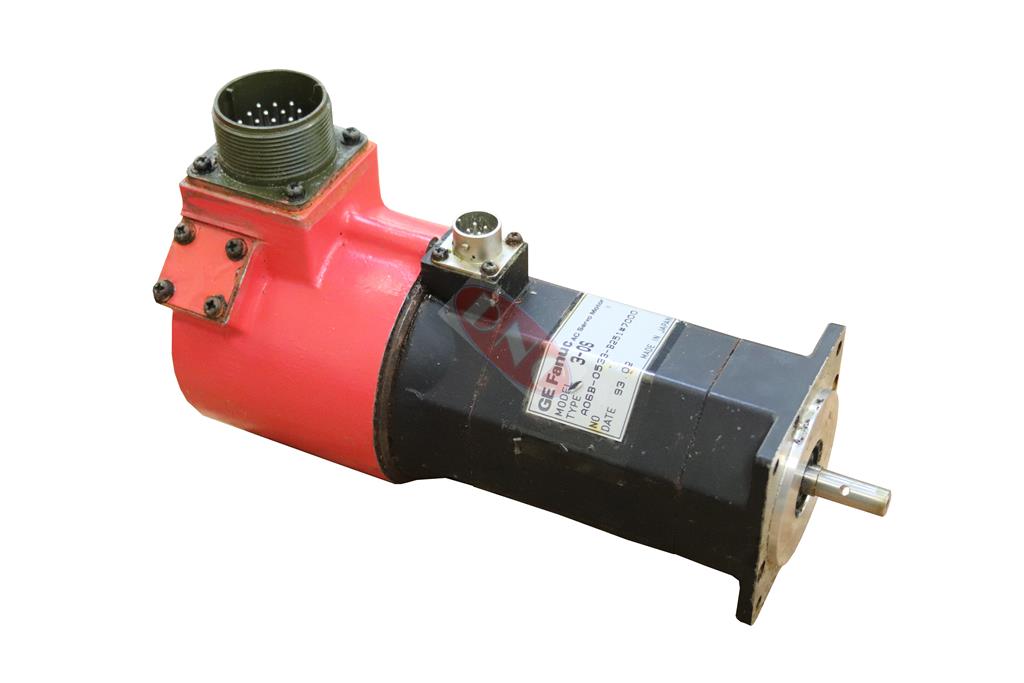

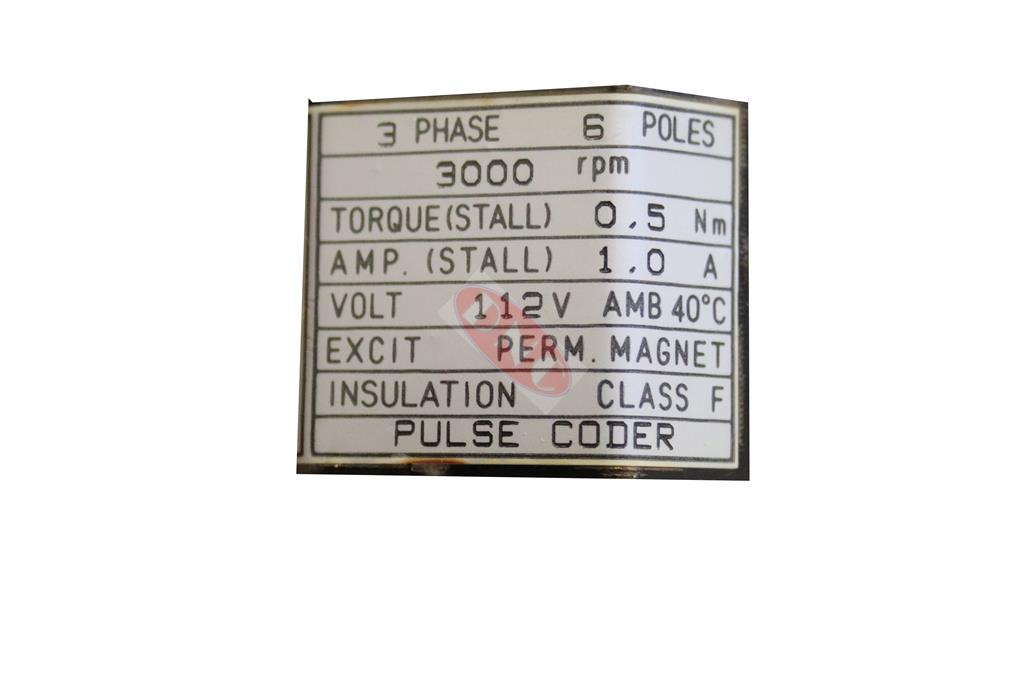

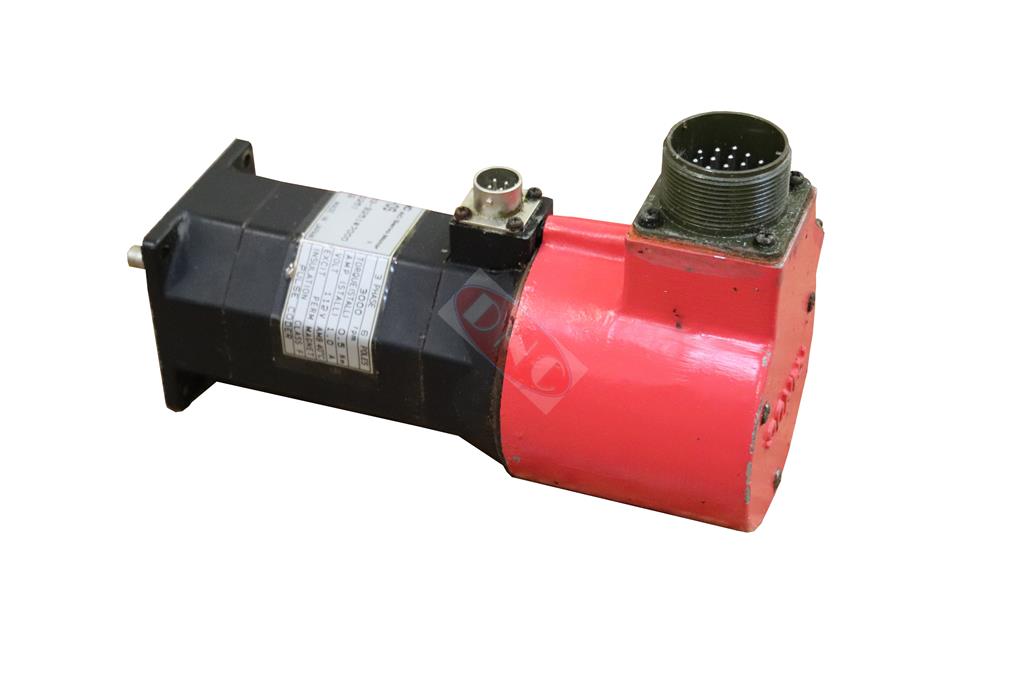

Fanuc A06B-0533-B251 AC Servo motor. Labeled as a model 3-0S from the S series of drives and motors. The series electrical ratings are as follows: 0.5Nm, 112V, 3ph/6pole, max 3000rpm. Fitted with a tapered shaft with fixed connectors and absolute encoder powered and controlled by drives including A06B-6058-H002 or dual axis.
Motor has a tapered shaft and standard seals fitted. Of this generation the 0533 AC series red cap Model 3-0S motor was fitted in small MT applications.
This A06B0533B251 motor is fitted with an 2000p absolute pulse coder. DNC offer either exchange, new surplus for your CNC machine tool, testing fault diagnosis and repair services are available and so is a full backup FANUC Drive service – if the motor is not faulty.
