A06B-0106-B114

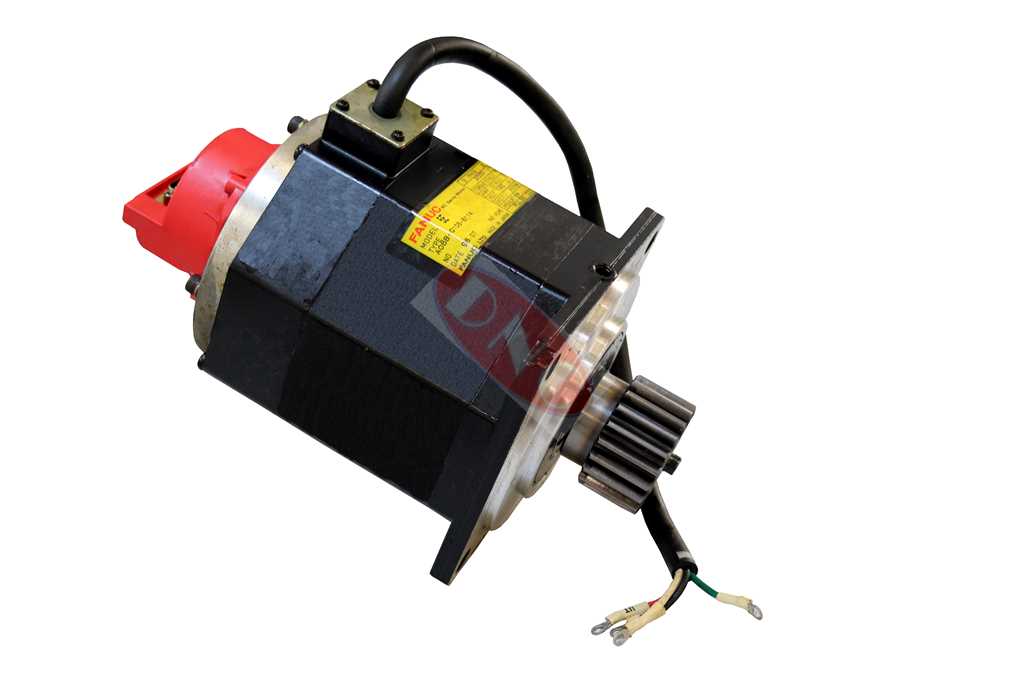

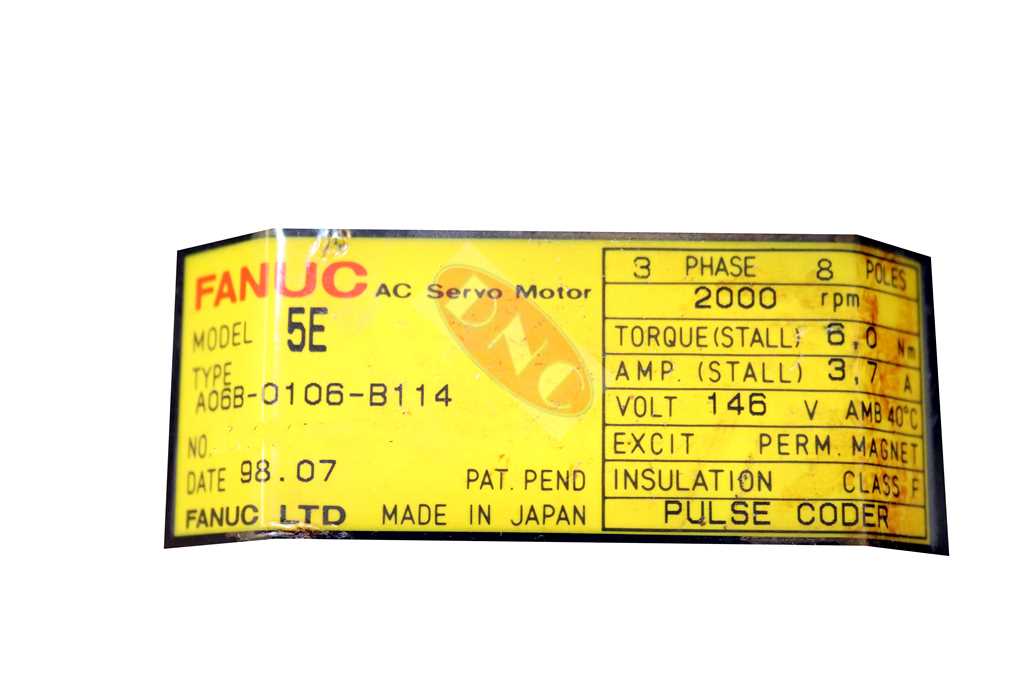

Fanuc A06B-0106-B114 AC servo motor. This very rare motor sits between generation families as label AC but also an ALPHA. This model 5E is ratings: 6Nm, 3.7Amp, 146v at 133hz with a max usuable speed of 2000 rpm. The motor is flange mount with a straight shaft, and special Serial A pulse coder variation.

This 0106 series red cap model 5E is a special with no power motor connector and flyleads instead. This motor is designed to be hardwired into the drive next door for small machine tools. Found on very limited manufacturers machine tools. Including Harrison lathes with Fanuc 20T control. This motor is a precursor release to the BETA series of servo amplifier units and motors.

DNC offer A06B0106B114 fully refurbished motors with warranty on an exchange basis (assuming in stock). Testing, fault diagnosis, rebuild and repair of these model 5E is possible, including encoder, bearings, new seals, etc.

Contact us for more information.
