A06B-0106-B178

FANUC A06B-0106-B178

  • ALPHA A06B0106B178 Servo Motor
  • Model aE6, Straight / Key, a8b
SKU: a06b-0106-b178 Category:

Description

A06B-0106-B178

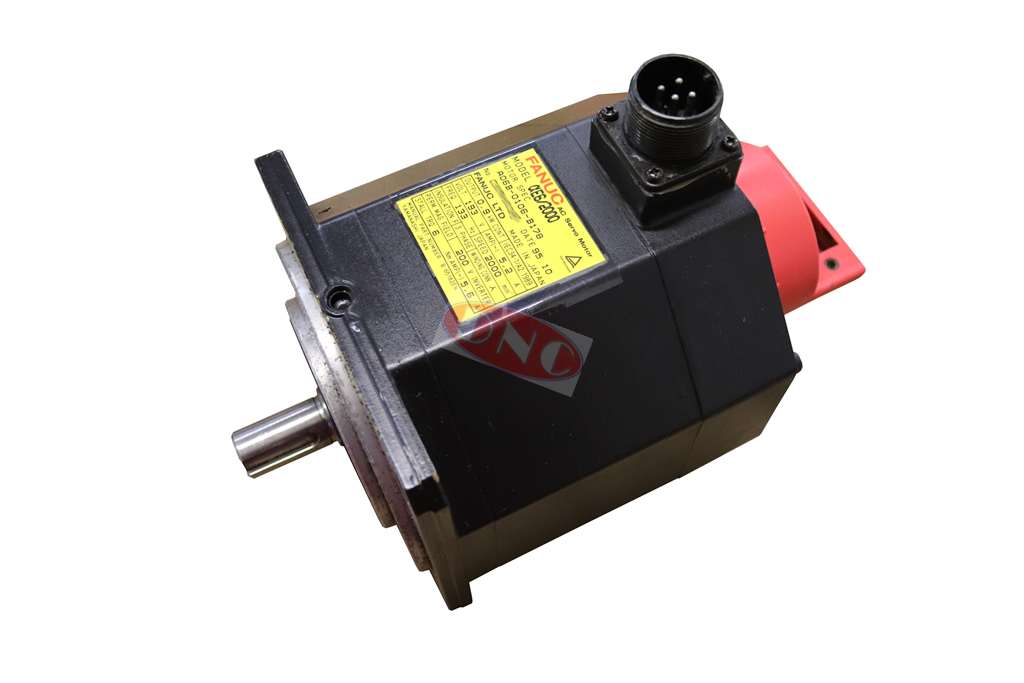

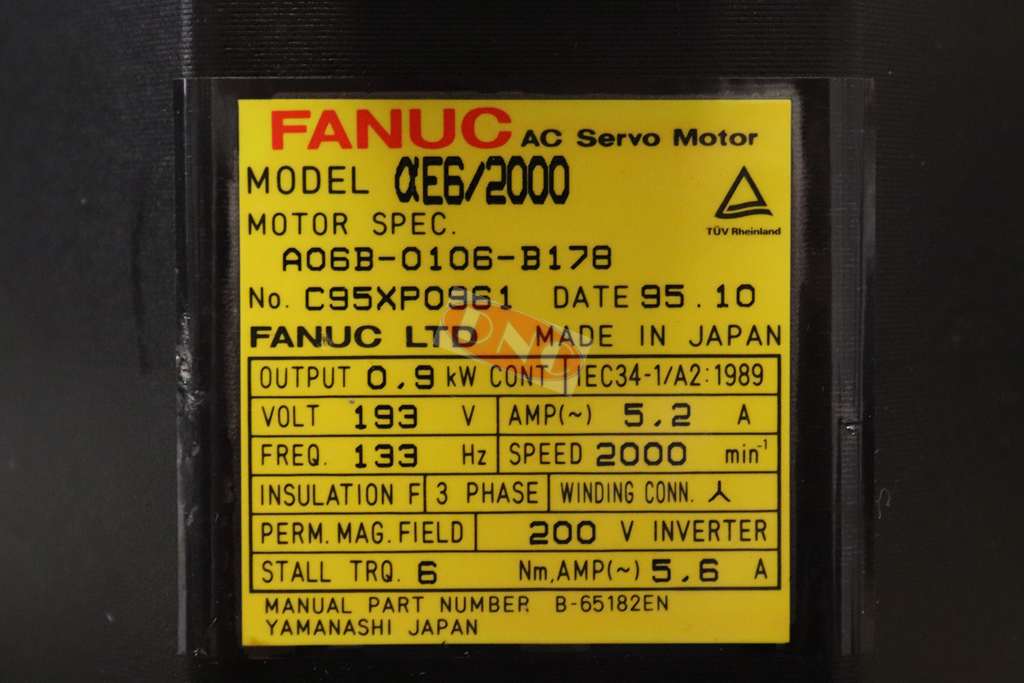

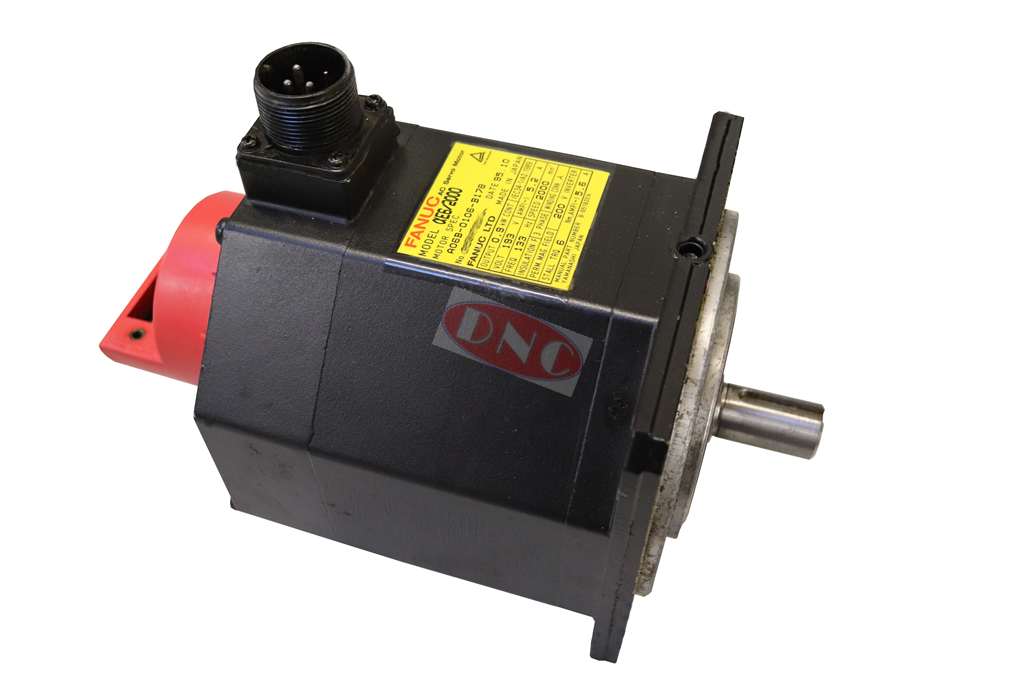

Fanuc A06B-0106-B178 aE6/2000 Servo Motor. This rare version of ALPHA motor series has the following electrical ratings: 0.9kw, 193v at 133hz with a max usuable speed of 2000 rplm. The motor is flange mounted as most small Fanuc motors are, with a straight shaft, and 8000 pulse BETA absolute encoder. This 0106 series red cap model ae6/2000 motor was part of the first generation of ALPHA drives and motor series. This particular motor was fitted on small and relatively cheap CNC machine tools. Common on Harrison lathes with Fanuc 20T control. This motor was a precursor release to the BETA series of servo amplifier units and motors.

DNC offer A06B-0106-B178 fully refurbished motors with warranty on an exchange basis (assuming in stock). Testing, fault diagnosis, rebuild and repair of these model aE6 is possible, including encoder, bearings, new seals, etc. Contact us for more information.

Additional information

Weight5 kg
