A06B-0755-B201

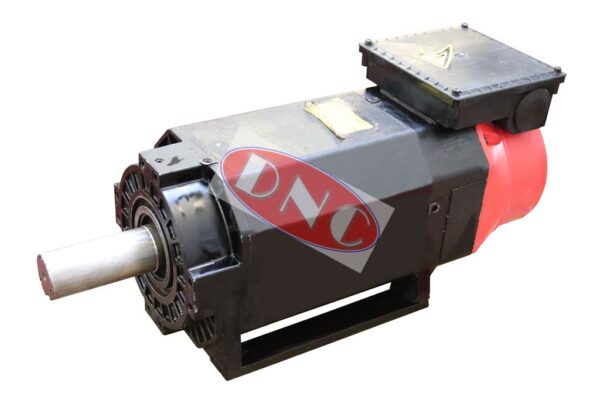

FANUC A06B-0755-B201 model 8S Spindle motor. Info for this AC spindle motor: Input 200V; Cont: 7.5kW 1500/4500 RPM @ 28 amp. 30 Mins: 11kW 1500-4500 RPM @ 39 amp; 3ph; 4 pole; class H insulation IP54. This motor is foot mounted with a straight shaft with keyway and has a rear blowing fan.
This A06B0755B201 motor from the Fanuc S Series AC spindle motor range is fitted with standard alpha B series spindle feedback for the serial spindle controllers such as the FANUC S series and serial spindle drives SP-8 and CNC’s which are available either as exchange, outright surplus, repair.
Testing services are offered upon medium size S series AC spindle motors from MEGA testing, low ohmage tests and feedback analysis, and closed loop testing with the FANUC CNC and AC spindle servo unit. Warranty for all 8S spindle motors from DNC is 12 months.
