New
A06B-0828-B200
A06B-0828-B200

A06B-0828-B200

FANUC A06B-0828-B200

  • ALPHA AC Spindle Motor in stock
  • Same Day, 24 hour repair possible
  • Model aP18, Straight Key, Foot mount
  • Exchange, Surplus, Test or Rebuild.

A06B-0828-B200

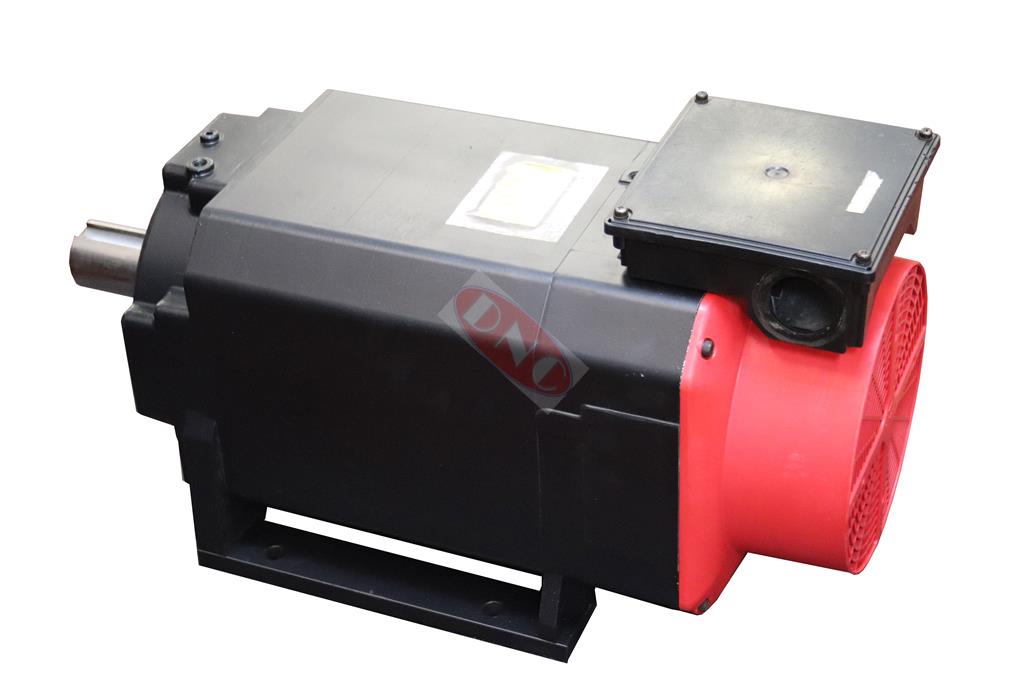

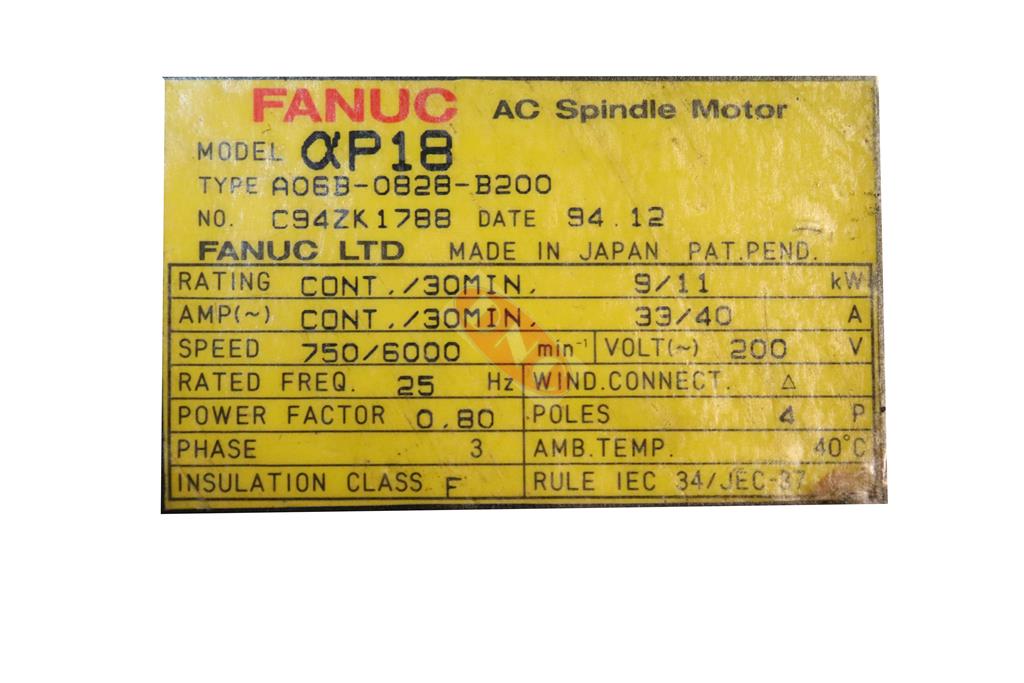

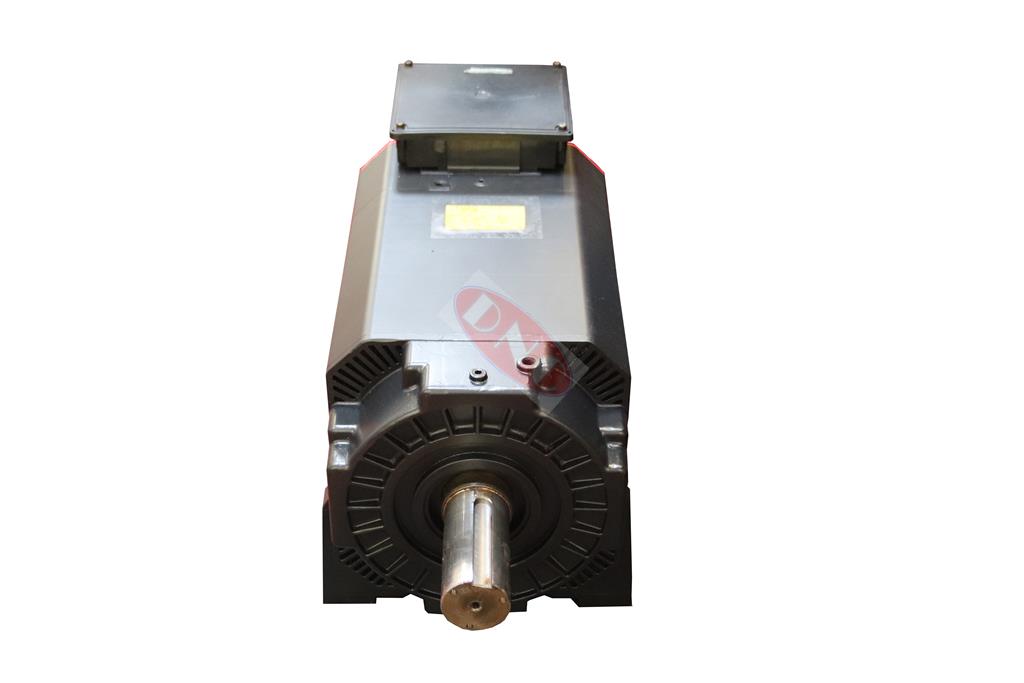

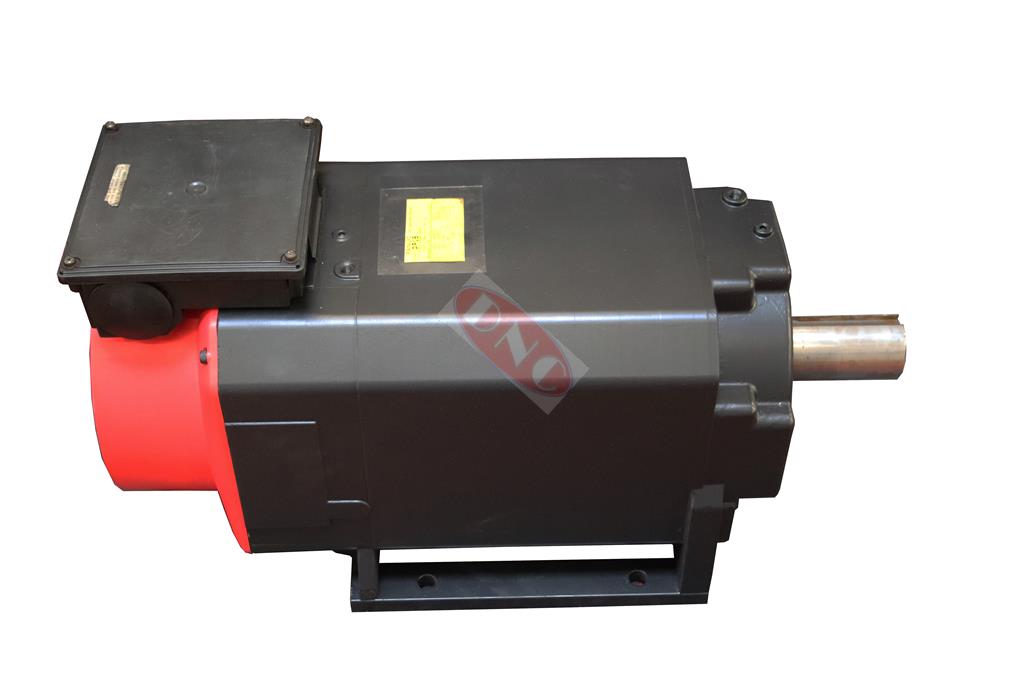

Fanuc A06B-0828-B200 Alpha model P18 Spindle Motors. Info for this motor: Motor Input 133-219V. S1 continuous: 9kW 750-6000RPM. S2 (30 Mins): 11kW 750-6000; 3ph; 4 pole; class H insulation IP54. Motor is foot mounted with straight shaft (no key) with rear exhausting spindle fan with ALPHA M sensor.

This Fanuc A06B0828B200 AC spindle motor from the aP18 motor range is fitted with standard alpha spindle feedback for the serial spindle controllers and CNC’s. Parts for the motor and the CNC’s and drives that power this motor such as the A06B-6088-H222 are in stock.

This motor is available either as exchange, outright surplus, repair, and also testing services. Warranty for all aP18 spindle motors from DNC is 12 months.

Weight 180 kg
