A06B-0830-B200#3000

FANUC A06B-0830-B200#3000

  • ALPHA A06B0830B200 AC Spindle Motor
  • Same Day Test, 24 hour repair possible
  • Model aP30, Foot Mount, Straight with key.
SKU: a06b-0830-b200#3000 Category: Tag:

Description

A06B-0830-B200#3000

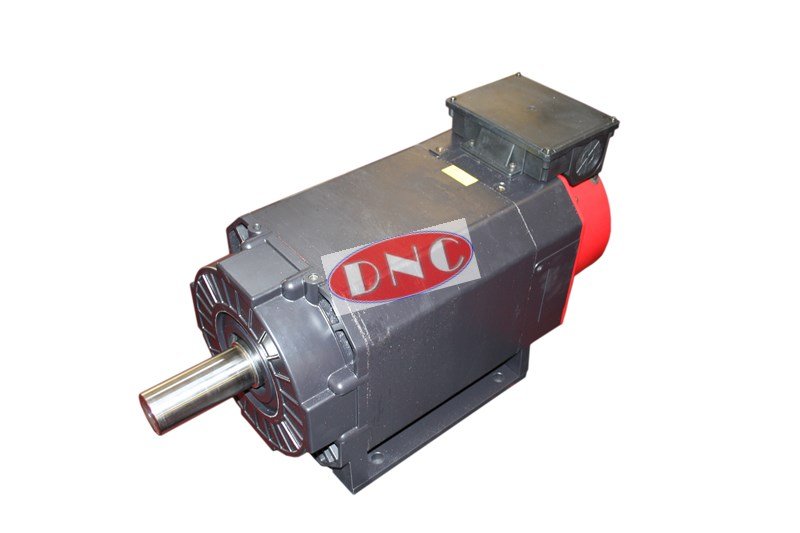

FANUC A06B-0830-B200#3000 ALPHA model P30 Spindle motor. Info for this AC spindle motor: Input 133-219V. S1 continuous: 15kW 575-4500RPM. S2 (30 Mins): 18.5kW 575-6000; 3ph; 4 pole; class H insulation IP54. Motor has straight shaft with key with rear exhausting spindle fan and is foot mounted.

This A06B0830B200 motor from the Fanuc aP30 Series AC spindle motor range is fitted with standard alpha M series spindle feedback for the serial spindle controllers such as the FANUC ALPHA spindle amplifier module and CNC’s which are available either as exchange, outright surplus, repair. Testing services are offered upon large ALPHA spindle motors from MEGA testing, low ohmage tests and feedback analysis, and closed loop testing with the FANUC CNC and ALPHA spindle power module. Warranty for all aP30 spindle motors from DNC is 12 months.

Additional information

warranty

180 Day Warranty
