A06B-0842-B200

FANUC A06B-0842-B200

  • ALPHA A06B0842B100 Spindle Motor
  • 24 hour repair possible
  • Model aC2 testing
SKU: a06b-0842-b200 Category: Tag:

Description

A06B-0842-B200

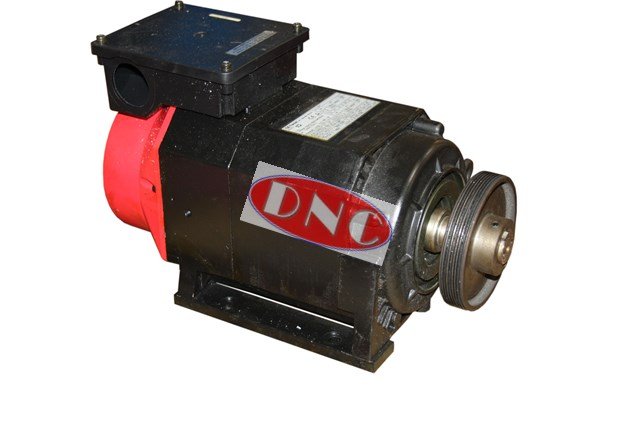

Fanuc A06B-0842-B200 ALPHA model c2/6000 Spindle Motors (FLANGE). Info for this motor: Rated at S1 cont: 2.2 kW between 1500-4500 rpm, and 1.8kw @ 6000 rpm – Max 20 amp; S2 15min Cont. 3.7 kW between 1500-4500 rpm, and 2.2kw @ 6000rpm – Max 17 Amp – 3 phase – 4 pole class H insulation IP54, 117-180V straight shaft with rear exhuasting fan and foot mounted.

This A06B0842B200#3000 motor from the Fanuc aC2 Series AC spindle motor range is fitted with a standard AC ALPHA spindle feedback for the serial spindle controllers and CNC’s which is available either as exchange, outright surplus, repair, and also testing services. Warranty for all a2 spindle motors is 12 months. If you are looking for ALPHA spindle modules (click here).

Additional information

warranty

180 Day Warranty

Product Enquiry
