A06B-0845-B200

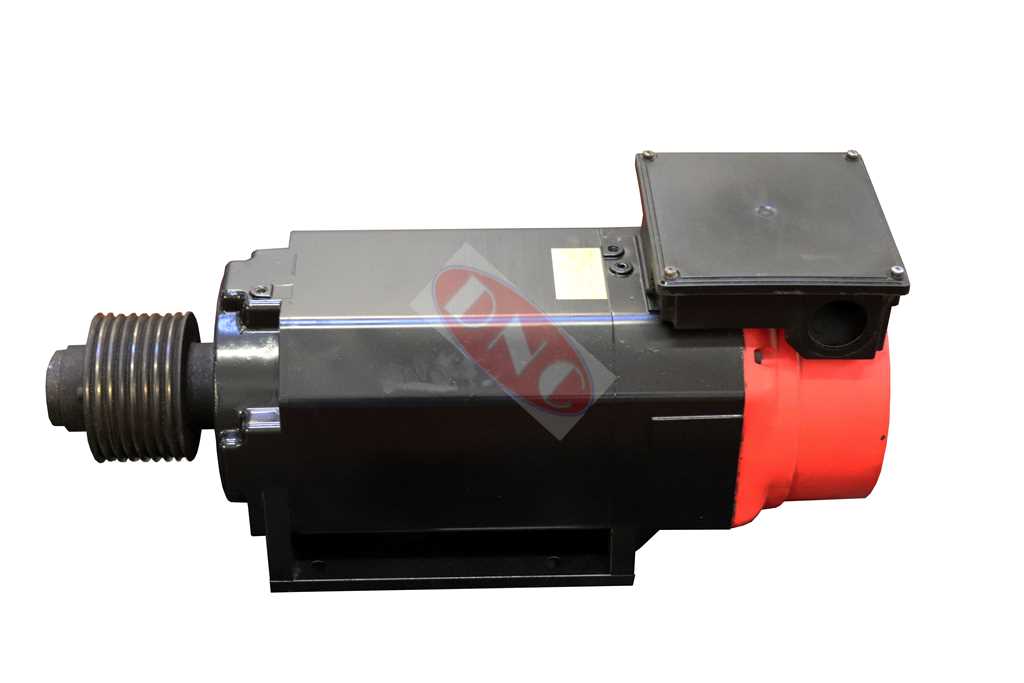

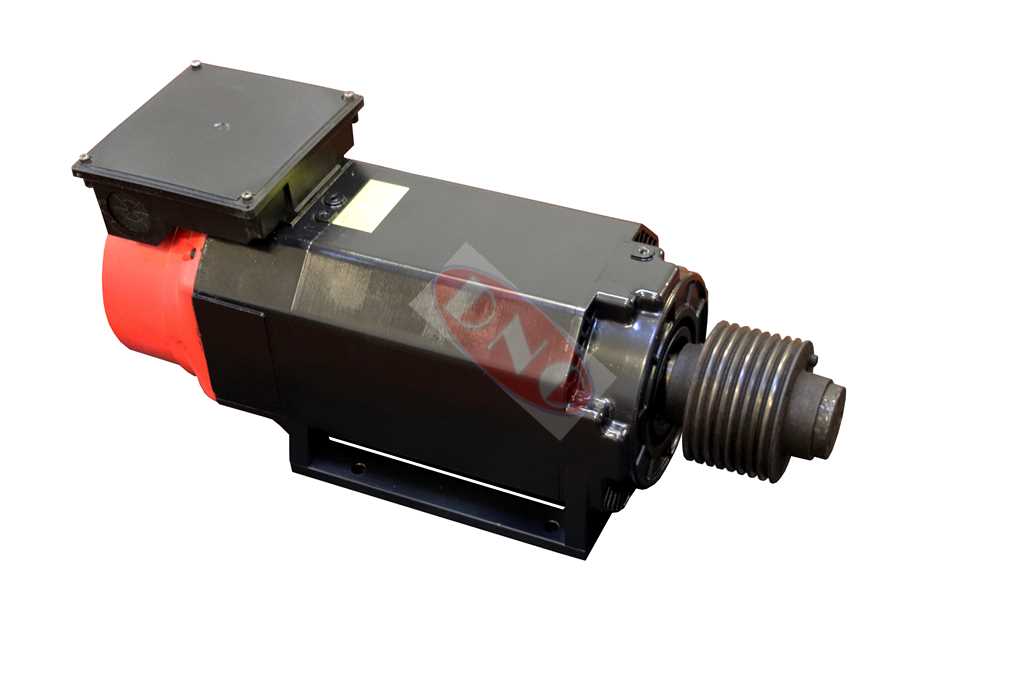

Fanuc A06B-0845-B200 AC spindle motor. DNC support this ALPHA model ac8/6000 motor. Info for this motor: Rated at S1 cont: 7.5kw between 1500-4500 rpm, and 4.5kw at 6000 rpm – Max 44 amp; S2 30min Cont. 13kw between 1500-4500 rpm, and 7.5kw at 6000rpm – Max 63 Amp – 3 phase – 4 pole class H insulation IP54, 149-214V straight shaft with rear blowing fan and foot mounted.
Being an ALPHA model C type motor means it has no speed or positioning sensor fitted internally in the motor. Reliant on a M or MZ sensor (ring type) fitted elserwhere on the shaft.
As standard this motor is fitted with the ALPHA servo amplifier modules from either the 6078 or 6102 generations of AC drives. Controlled by late Zero model C/D or 15, 16, 18 or 21 controls.
Warranty is 12 months regardless or exchange, surplus or repair.
