A06B-0851-B191

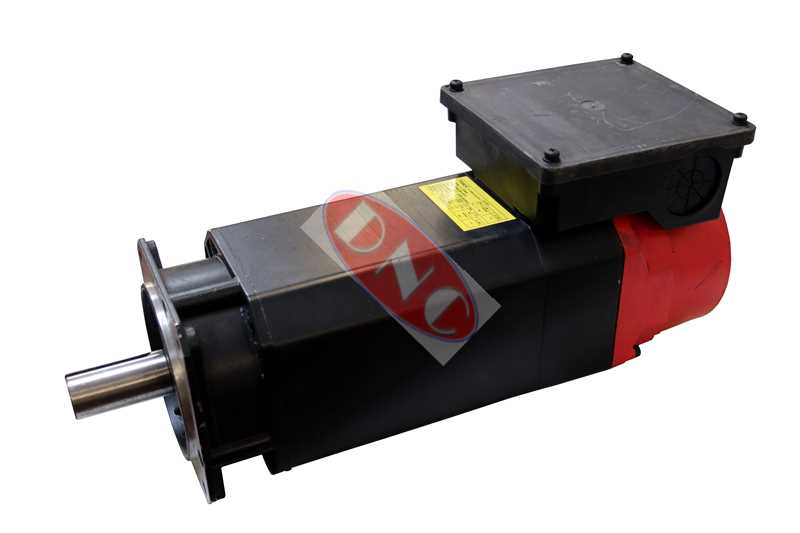

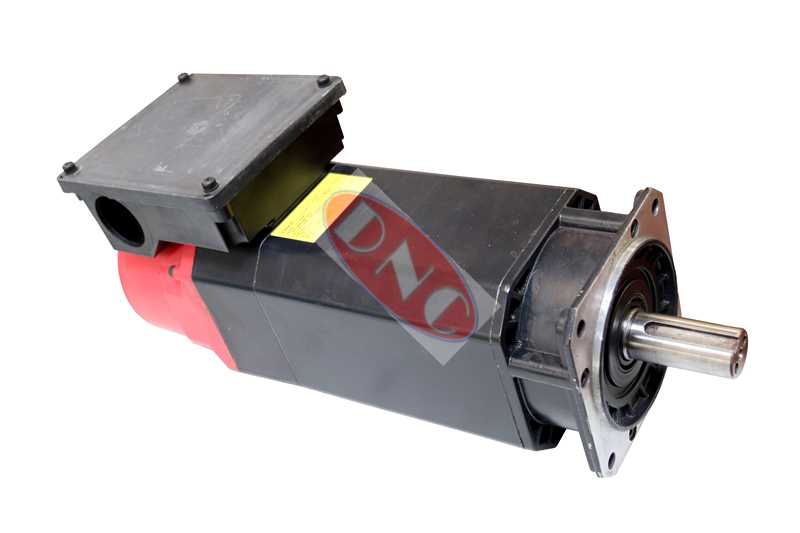

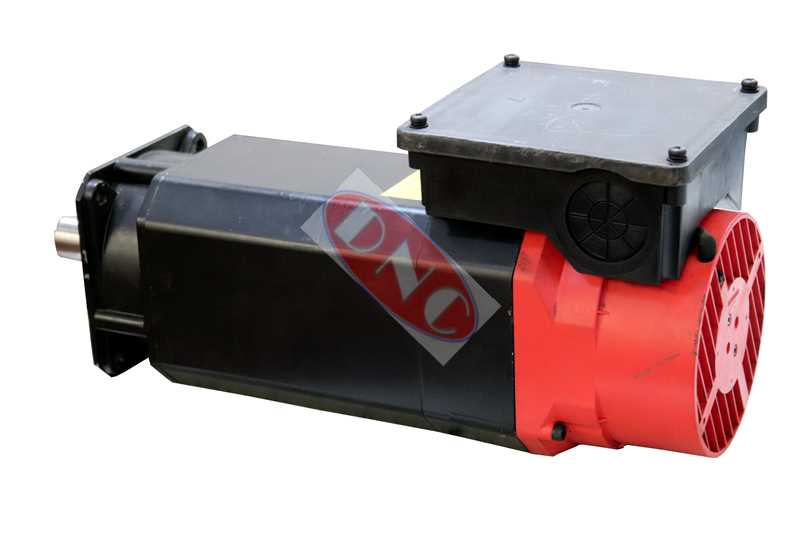

Fanuc A06B-0851-B191 AC spindle motor. This ALPHA series 200VAC model a1.5/8000 motor is rated at: 1.5kW, 3 phase, max 8000 RPM motor with a straight and keyed shaft with forward exhausting fan and flange mounted.
This A06B0851B191#3000 motor from the a1.5 Series AC spindle motor range is fitted with Alpha MZ spindle feedback for speed and Z marker pulse. Fitted with various CNC’s from very late 0 Model C / D controls through 15/16/18/21 into 15i / 16i / 18i and 21i controls with FSSB servo amplifiers.
If you have found yourself requiring the spindle drive for this motor then please check the part number on the spindle amplifier module and put the part number in the search bar above or contact us for more info.
