FANUC A06B-0855-B100#0500

  • A06B0855B100#0500
  • 24 hour repair possible
  • Model a8/9000, Flange Mount
SKU: a06b-0855-b100#0500 Category: Tag:

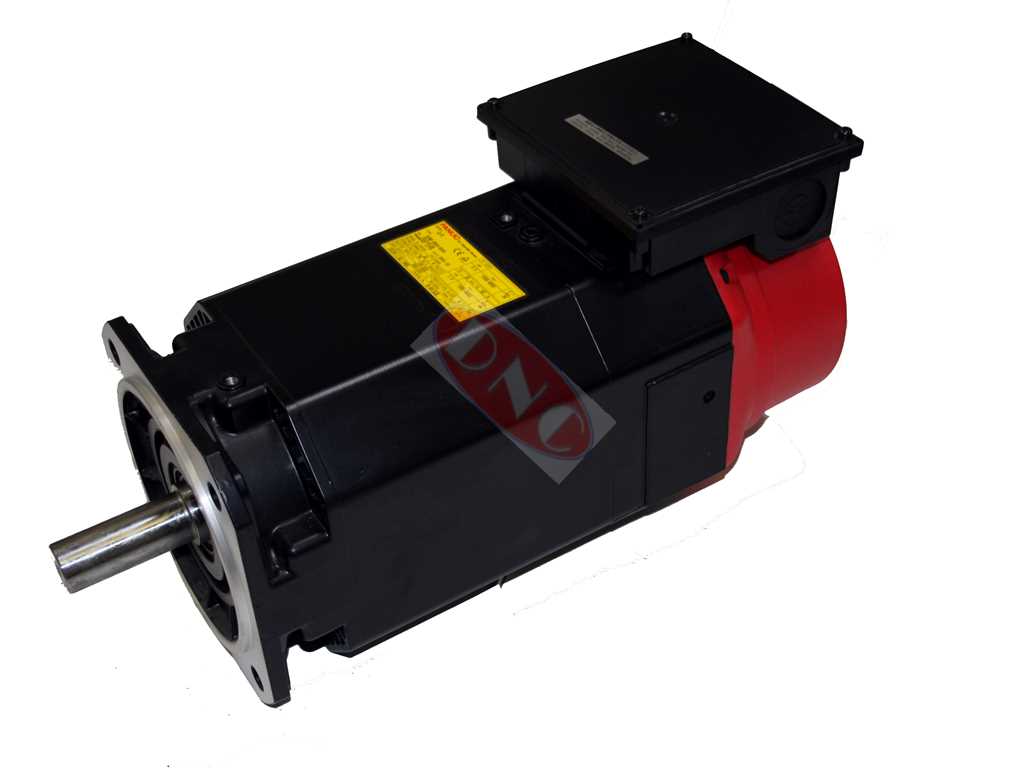

FANUC A06B-0855-B100#0500 Spindle Motors. Info for this motor: Rated at S1 cont: 7.5kw between 1500-4500 rpm, and 4.5kw @ 9000 rpm – Max 44 amp; S2 30min Cont. 13kw between 1500-4500 rpm, and 7.5kw @ 9000rpm – Max 63 Amp – 3 phase – 4 pole class H insulation IP54, 149-214V without brake, straight shaft with rear blowing fan and flange mounted.

This A06B0855B100#0500 motor from the Fanuc ALPHA 8/9000 Series AC spindle motor range is fitted with a standard AC ALPHA spindle feedback for the serial spindle controllers and CNC’s which is available either as exchange, outright surplus, repair, and also testing services.

Additional information


180 Day Warranty
