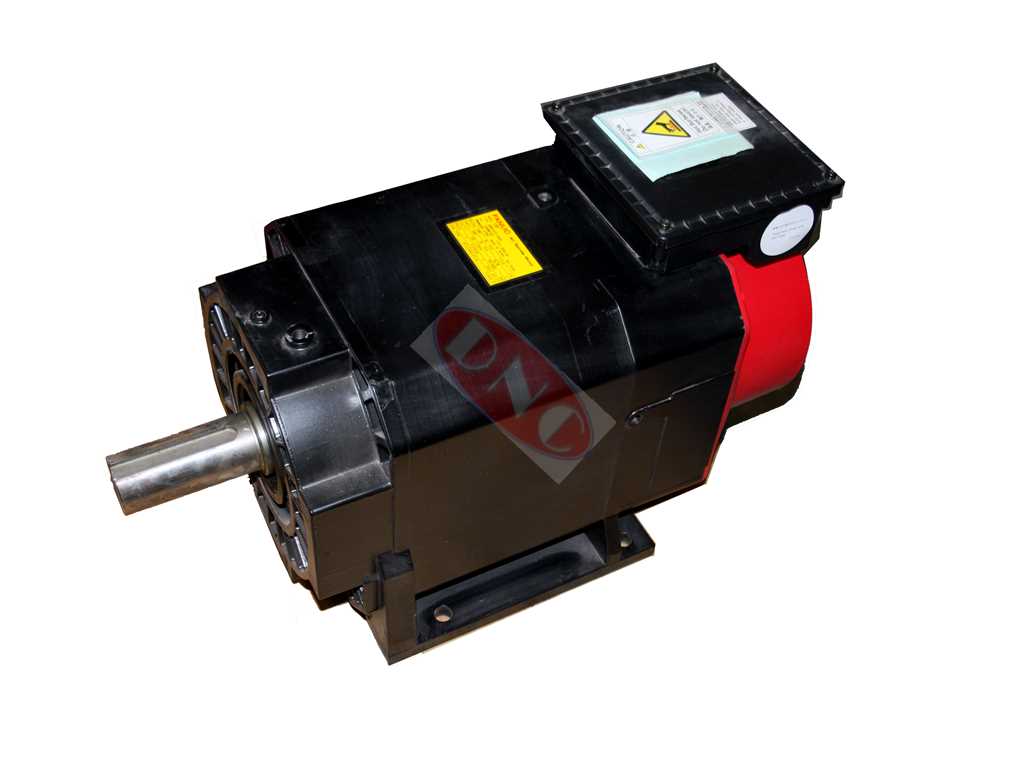

Fanuc A06B-0856-B290 Alpha Model 12 Spindle motor. Info for this motor: Rated at S1 cont: 11kw between 1500-6000 rpm – Max 53 amp; S2 30min Cont. 15kw between 1500-6000 rpm, – Max 65 Amp – 3 phase – 4 pole class H insulation IP40, 161-214V without brake, straight shaft with rear blowing fan and foot mounted.
This A06B0856B290 motor from the Fanuc Alpha 12/6000 Series AC spindle motor range is fitted with a MZ alpha spindle feedback for the serial spindle controllers and CNC’s which is available either as exchange, outright surplus, repair, and also testing services. Warranty for all A06B0856B290 – 12 months.
