A06B-0879-B190

FANUC A06B-0879-B190

  • ALPHA A06B0879B190 Spindle Motor
  • Same Day, 24 hour repair possible
  • Model a22HV, Straight Key, Flange mount
SKU: a06b-0879-b190 Category: Tag:

Description

A06B-0879-B190

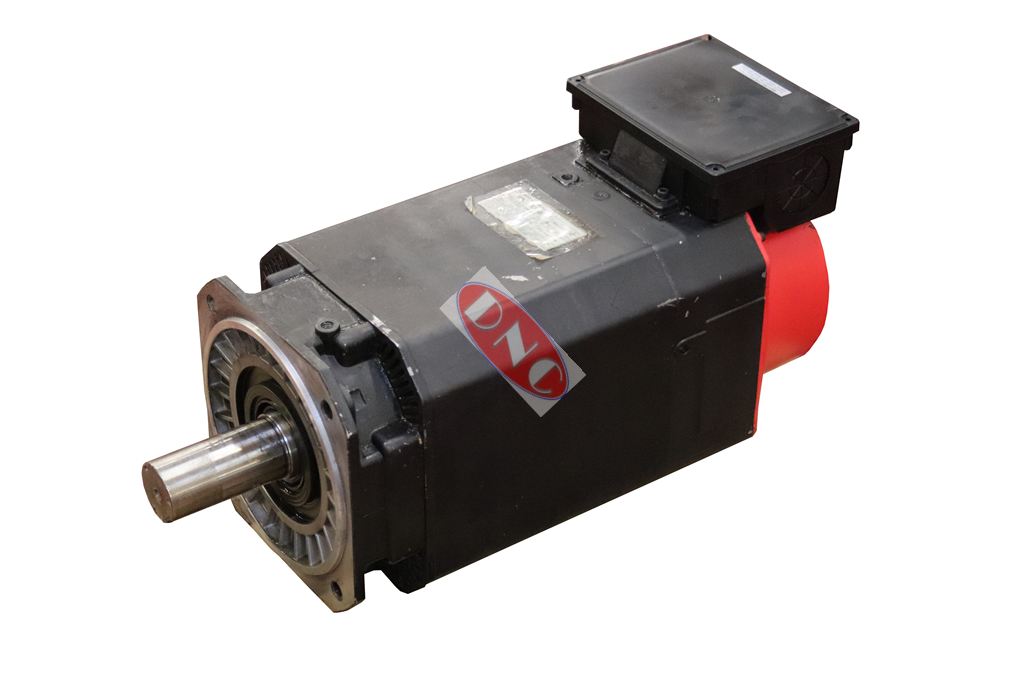

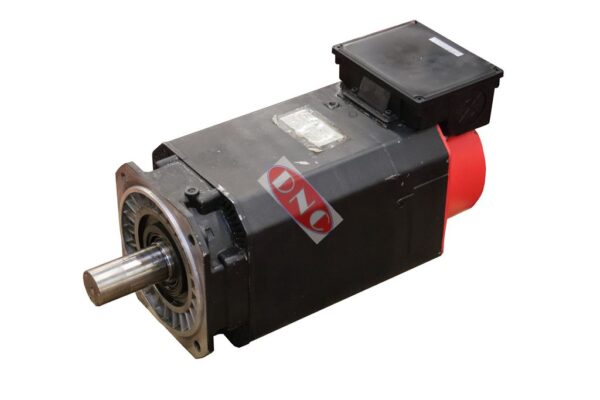

Fanuc A06B-0879-B190 model a22HV Spindle Motors. Electrical motor information includes: S1 (Cont) 22kW running 1500-6000 RPM; S2 (30 min) 26kW 1500-8000 max current 58 amp. This motor is a high voltage spindle running from 400VAC drives such as the A06B-6092 or A06B-6104 series HV alpha spindle amps. Physically this

This A06B0879B190 motor from the Fanuc Alpha 22HV Series AC spindle motor range is fitted with MZ spindle feedback for the CNC. This motor is exchange, outright surplus, repair, and also full testing services are available. If your looking for other Fanuc ALPHA or AC spindle motors, follow motor links above. Warranty for all a22HV spindle motors from DNC is 12 months.

Additional information

Weight160 kg
warranty

180 Day Warranty
