FANUC A06B-1003-B100

  • AC Spindle A06B-1003-B100 in stock
  • Same Day, 24 hour repair possible
  • Model 3, Straight Shaft, Black Fan Cap
SKU: a06b-1003-b100 Category: Tag:

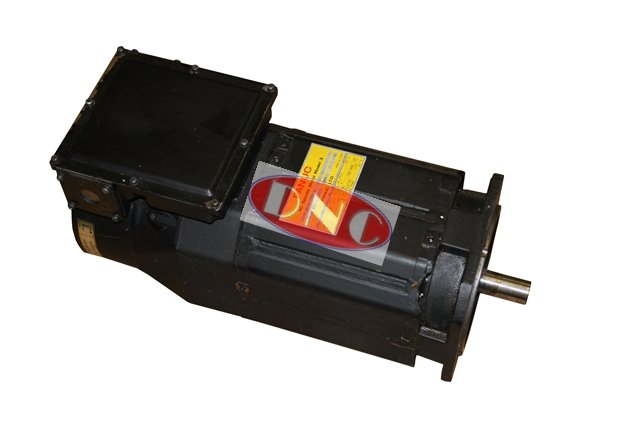

FANUC A06B-1003-B100 AC Model 3 Spindle Motors. This black cap spindle motor has the following specs: Rated at 3.7 / 5.5Kw 30min Cont., with 17/22 amp 3 phase – 4 pole class F, 200V, 1500 – 6000 rpm without brake, straight shaft with forward facing rear fan – mounted via Flange.

This A06B-1003-B100 motor from the Fanuc 3 Series AC spindle motor range is fitted with a standard AC spindle feedback for the analogue spindle controllers and CNC’s which is available either as exchange, outright surplus, repair, and also testing services ¬†Warranty for all A06B-1003-B100 – 12 months.

Additional information


180 Day Warranty
