A06B-1293-B135#0121

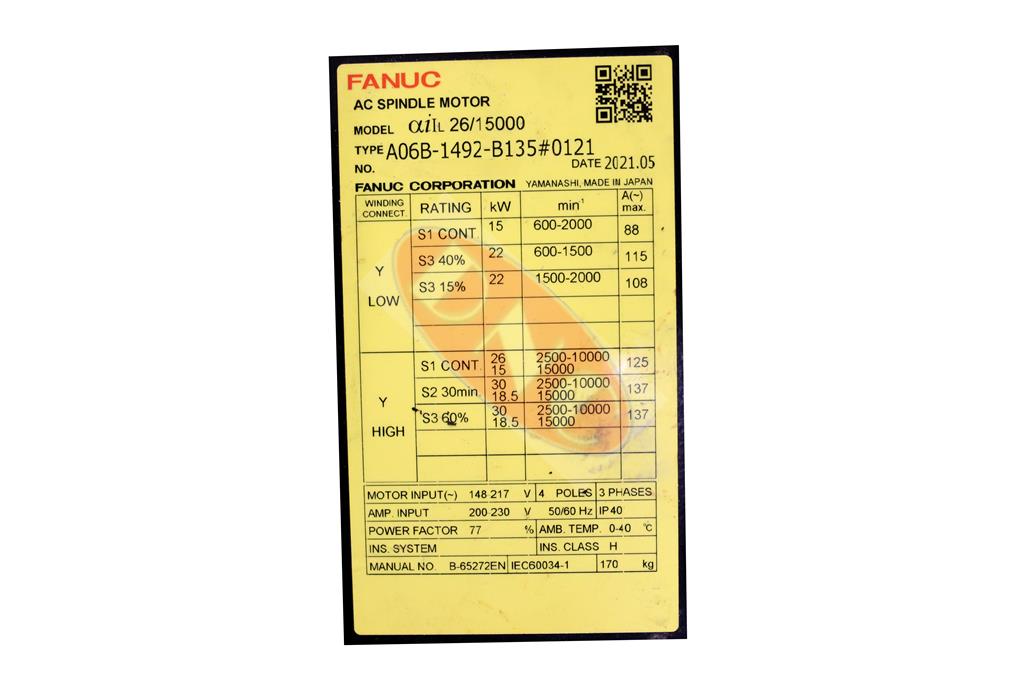

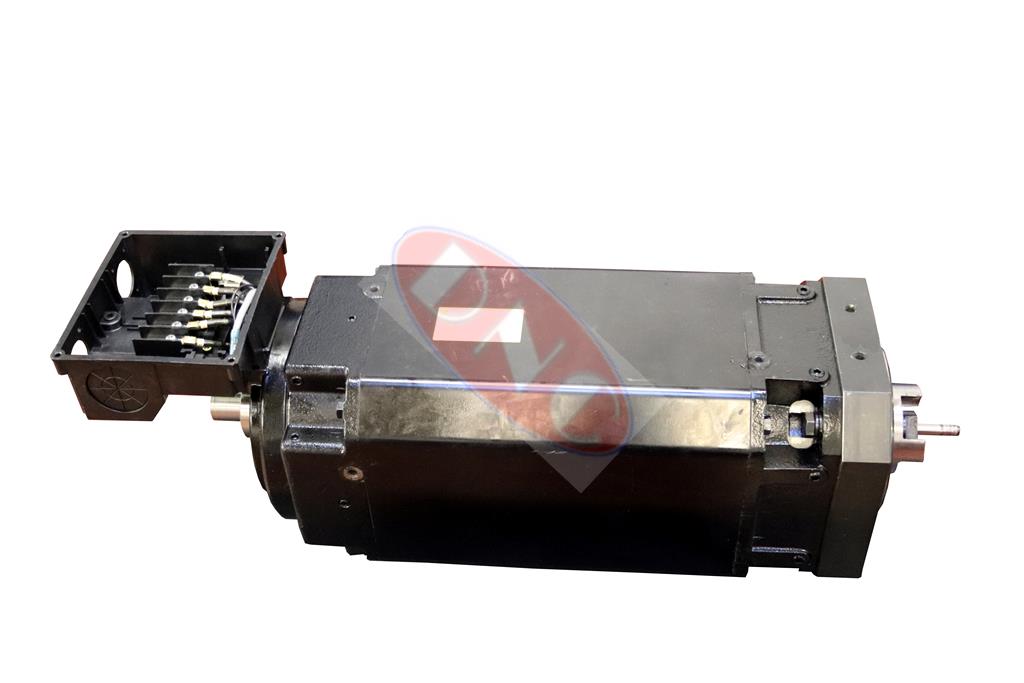

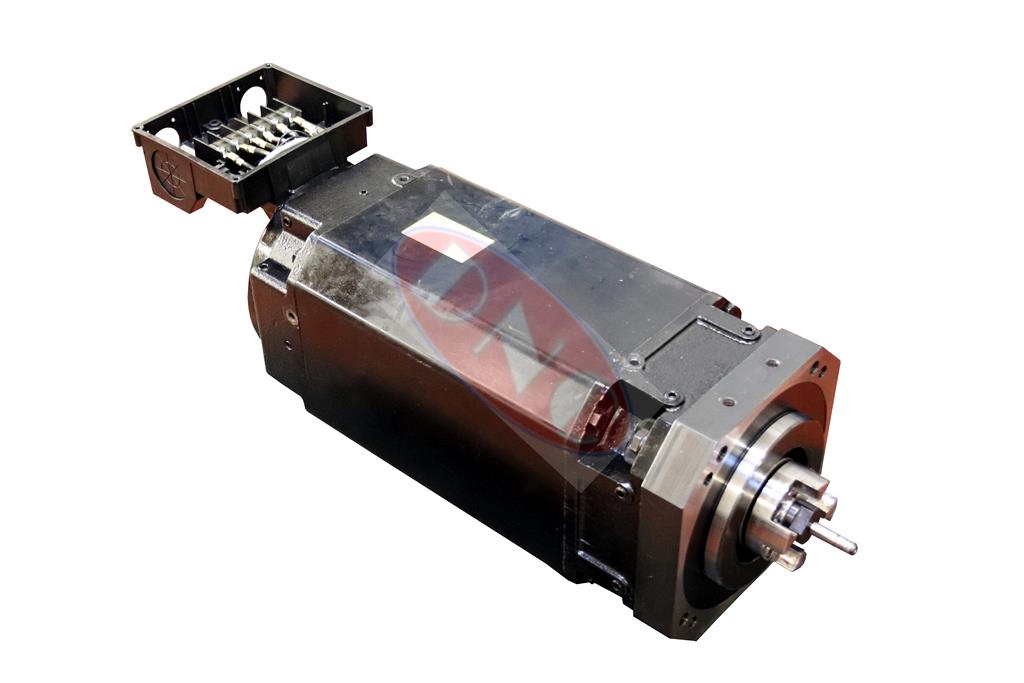

Fanuc A06B-1293-B135#0121 aiIL26/15000 Spindle Motors. This motor has a Low and High Winding in low: S1 (continuous) 15kW; S3 (40%) 22kW; S3 (15%) 22kW @ 1500 – 2000 RPM. In high S1 (cont) 26kW at 2500-10000 or 15kW at 15000; S2 (30min) 30kW at 2500-10000 or 18.5kW at 15000 and lastly S3 (60%) 30kw at 2500-1000 or 18.5kW at 15000 rpm
The ail26/10000HV Series AC spindle motor range is fitted with non-standard ALPHA i spindle feedback. This motor will run with many series 200VAC spindle amplifiers such as the A06B-622x series and controls such as late 0i-MD/0i-TD or 31i controlled machines.
DNC offer limited facilities for this motor including testing, rebuild, rewind, repair, overhaul, etc.
