FANUC A06B-1406-B103

  • ALPHA i A06B1406B103 spindle motor
  • Quick repair turnaround possible
  • Model aiL6/10000, straight shaft, ai sensor

A06B-1406-B103

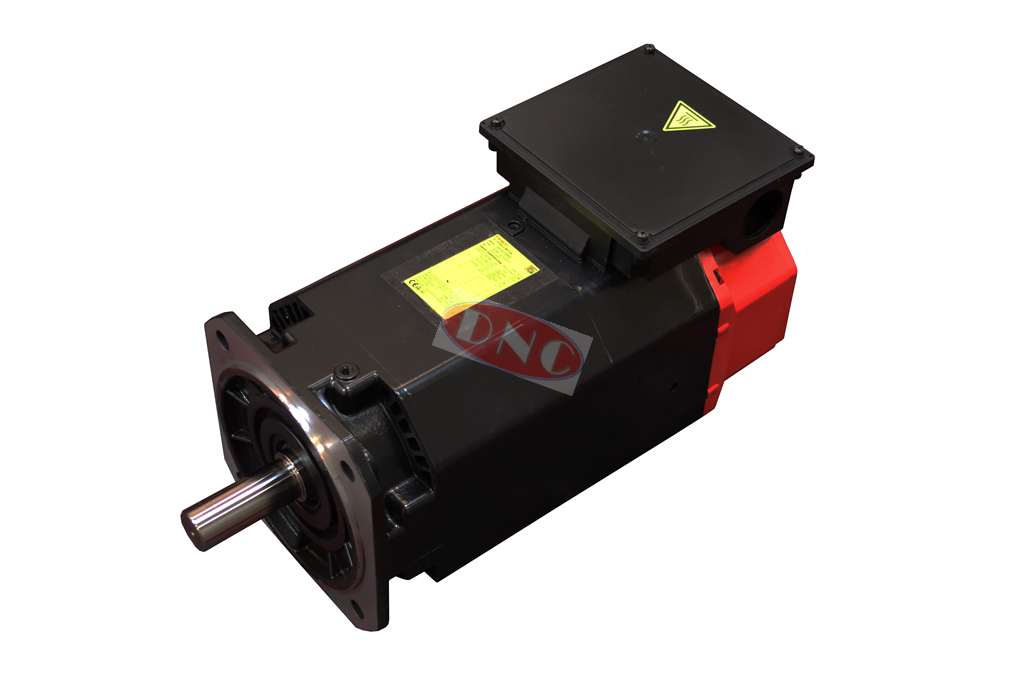

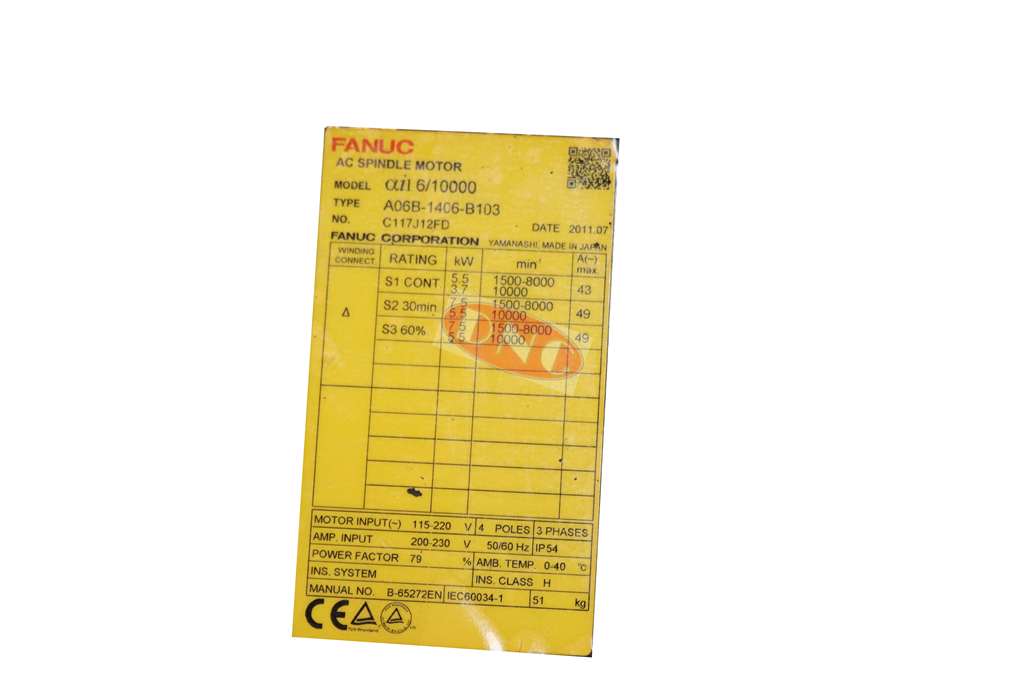

Fanuc A06B-1406-B103 spindle motor. This aiL6/10000 series of motor is rated at: CONT. 5.5 / 3.7 KW,  S2 7.5kW / 5.5 kW; 3 phase, 1500 – 10000 rpm with a straight shaft (no key) with external cooling fan and is flange mounted on the machine tool.

This A06B-1406-B103 motor belongs to the a6/10000i series ALPHA spindle motor fitted with standard feedback Mi sensor. This motor normally runs with earlier 6111 and 6112 series amps or the latter ai versons; resultingly 6141 and 6142 series. Controlled from late generation 16i-B, 18i-B, 21i-B, 0iB and 0iC CNC control series. DNC offers numerous services upon ALPHA i spindle motors, including inspection, diagnostic with our CNC test rigs, rebuild, rewind, repair and lots more to get your motor back into a top notch refurbished condition. If the motor is in stock, then exchange is also available. Regardless Warranty for repair, rebuild or exchange aiL6/10000 series spindle motors supplied or services is 12 months.
