a06b-1409-b153
a06b-1409-b153

A06B-1409-B153

FANUC A06B1409B153

  • ALPHA i spindle motor
  • Quick repair turnaround possible
  • Model a15/7000i, straight shaft, ai sensor
  • 12 Month Warranty

A06B-1409-B153

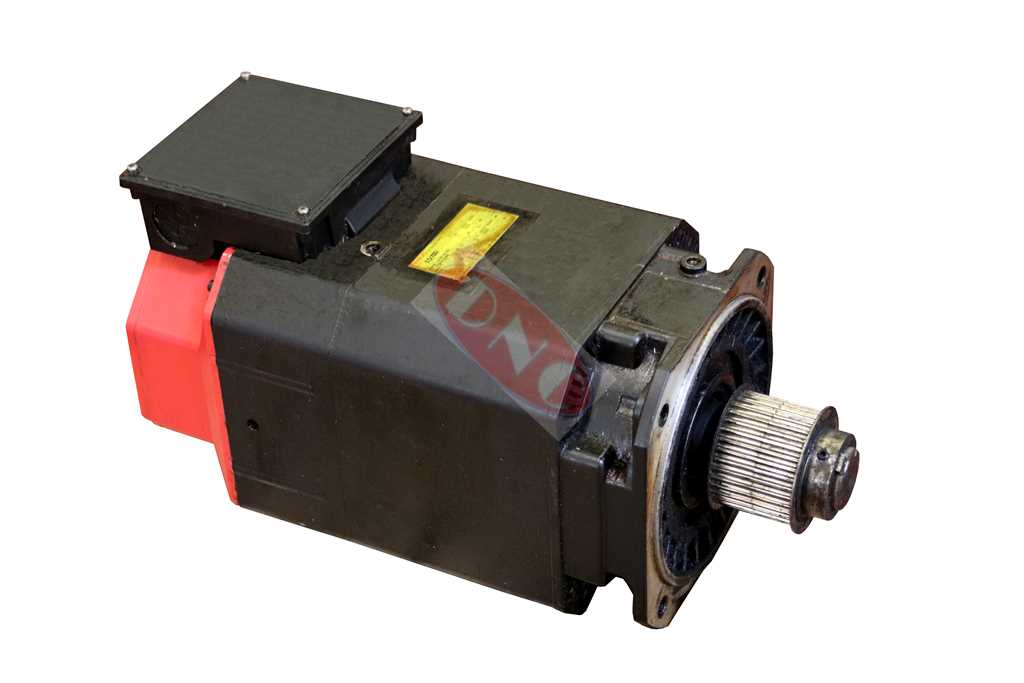

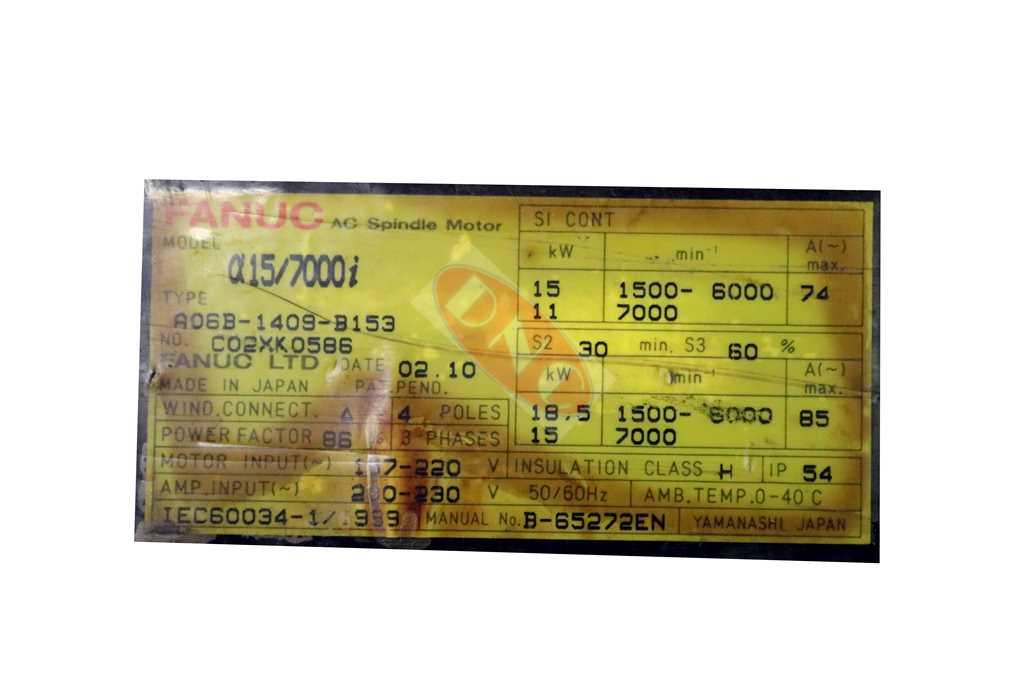

Fanuc A06B-1409-B153 spindle motor. This ai15/7000 series of motor is rated at: CONT. 15 / 11 KW,  S2 18.5kW / 15 kW; 3 phase, 1500 – 7000 rpm. Flange mounted with a straight shaft (no key) and exhausting fan.

This AC spindle motor belongs to the a15/7000i series ALPHA spindle motor fitted with standard feedback Mi sensor. The motor normally runs with earlier 6141 and 6142 series amps or the earlier ai versions; resultingly 6111 and 6112 series. Controlled from late generation 16i-B, 18i-B, 21i-B, 0iB and 0iC CNC control series.

DNC offers numerous services upon ALPHA i spindle motors, including inspection, diagnostic with our CNC test rigs, rebuild, rewind, repair and lots more to get your motor back into a top notch refurbished condition. If the motor is in stock, then exchange is also available.

Regardless Warranty for repair, rebuild or exchange a15/7000i series spindle motors supplied or services is 12 months.
