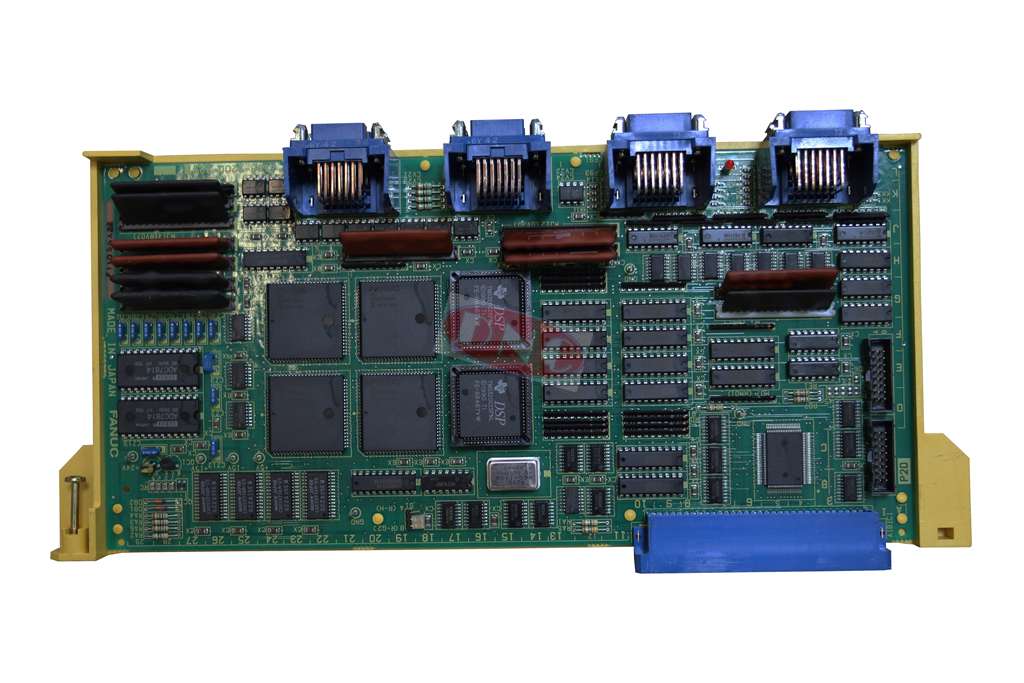

Fanuc A16B-2200-0250 analogue axes control board. As part of the Zero model C controller series; this board is quite unique. Allowing for 3 or 4 axis control over AC or DC velocity control units. Meaning this card can make the 16bit 0-C system control AC analog drives and motors that would have been on machine tools with control such as the 6, 10, 11 and 0-A series.
The drives this could run from the Fanuc options are 6050 series. As a result this system heralded the 90’s; this card could control functioning drives belonging at the start of the 1980’s. The board is a non surface mount PCB fitted on the earlier release of 16bit 0-C controllers.
DNC offer comprehensive services upon A16B-2200-0250 3/4 axis board. Including service exchange which is the quickest and most cost effective route or repair which is the cheapest option we offer. Alternatively you may need to replaced your board due to physically damaged; surplus ex-stock boards should cover you. If you are unsure whether you have issues on your system consult our Zero C alarms page.
