FANUC A16B-1010-0040

  • 10A Master Board Analog
  • FS10M, FS10T Test and Repair
  • MAIN PCB Exchange in stock
SKU: a16b-1010-0040 Category: Tag:

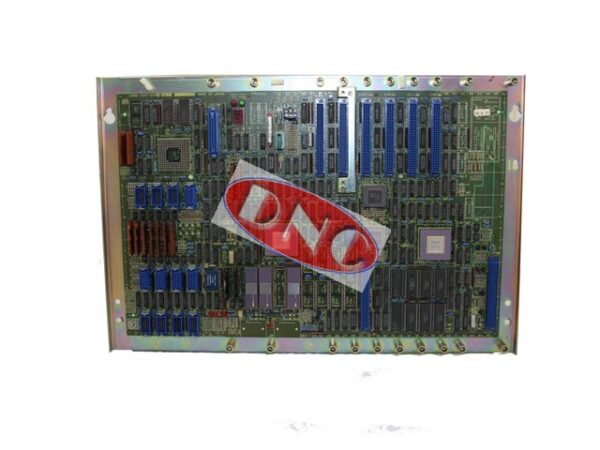

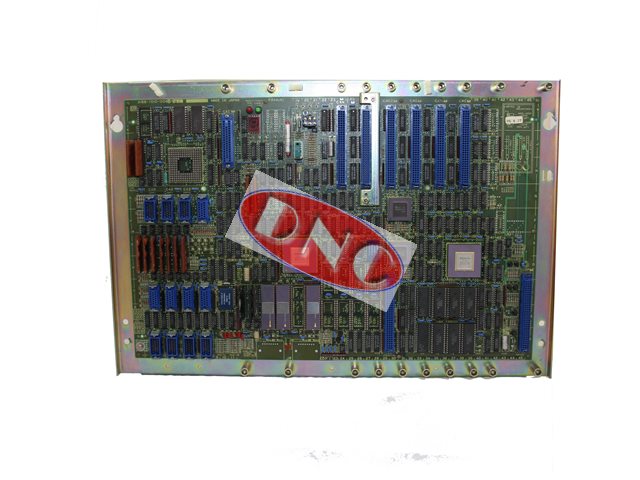

Fanuc A16B-1010-0040 Series 10 Master PCB. This is the first generation of the Fanuc 10A Main Boards. The system designation is Fanuc 10M, 10T, 10P, 10G and come with the facilities to drive 4 axis and 1 spindle if all LSI chips are present, however its normal for 3 LSI’s to be fitted, the board can drive basic 9″ graphics if the correct processor is fitted, though with a variety of graphics boards can drive a multitude of 14″ colour graphic systems. This board comes with no fibre optic links to the input output system or the graphics driver board. The A16B10100040 comes with a pre-defined amount of memory on the master board, though some come with more. FAPT and Memory Boards can be fitted, peripheral plug in I/O and external input output boards are also available if the 1010-0040 is not the problem.

DNC offer a variety of services for the this Masterboard contact us for prices and services. Service Exchange, Repair, Testing and Used and sometimes ex-stock surplus spares are available on A16B10100040 mother boards.
