A16B-1100-0310

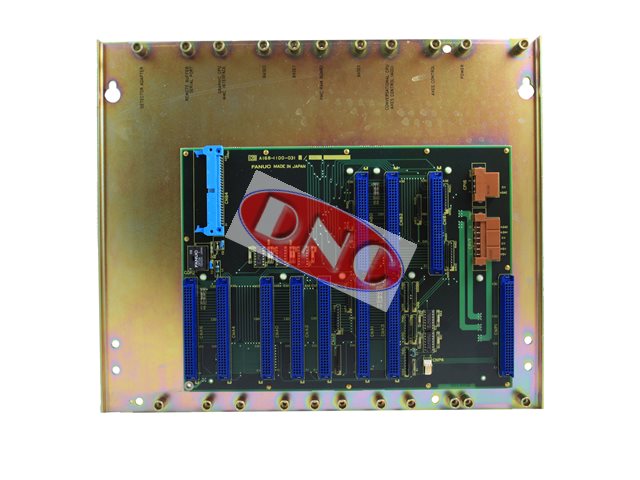

Fanuc A16B-1100-0310 Backplane. This 9 slot main connect PCB is a series 15 control motherboard which acts as a master PCB to the entire Fanuc 15 system. The board connects the BASE0, BASE1, BASE2, Graphics, Axis board(s) too allow from 2-8 axis control on the smaller and simpler FS-15 controls, up to seriously large configurations.
DNC have four Fanuc 15 control systems, a run of the mill 15T and 15M, a 15TF and a 15iM stand alone test rig built by GE Fanuc HQ before their disbandment.
This system 15 backplane is available from DNC today either as exchange, or testing and repair can be carried out on this part, or the other series 15 parts such as the GRP, BASE and AXES boards, etc.
