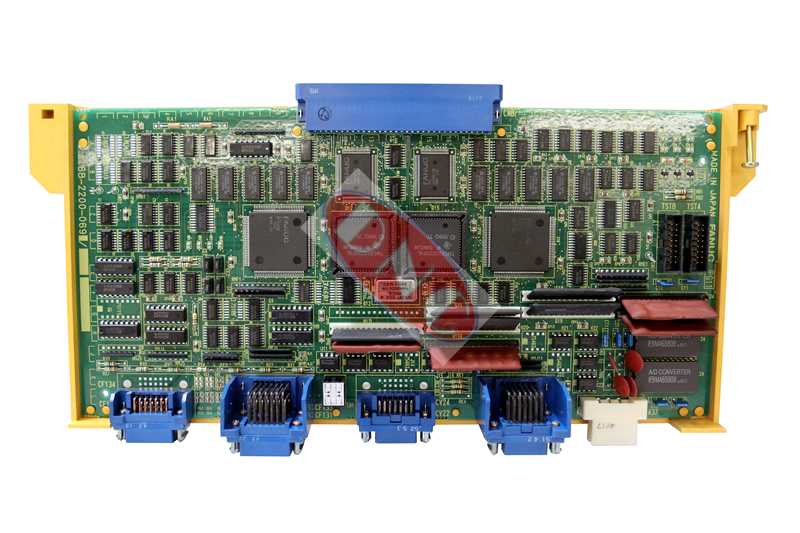

A16B-2200-0691
Fanuc A16B-2200-0091 axis card. Being a serial triple channel axes PCB for series 15 controls. This board is part of the second generation of axes boards for the Fanuc 15 system which can combine with other Serial AXES pcbs to build multiaxis configurations for complex machine tools.
Refered to as GE Fanuc A16B22000691 this board is surface mount PCB, and was fitted on the later 15A 32bit control system from the 1990’s usually interfacing and controlling the Fanuc digital S and C series servo drive amplifiers 6057, 6068 and 6066 series. The board can be fitted on 15-MA, 150M, 15-MF, 15-T, 15-TA, and 15-TF.
DNC offer a full service for this serial 3 axis board, including exchange to save money, testing and repair of the AXS – axes board and the 15 control system.
